Exploded View

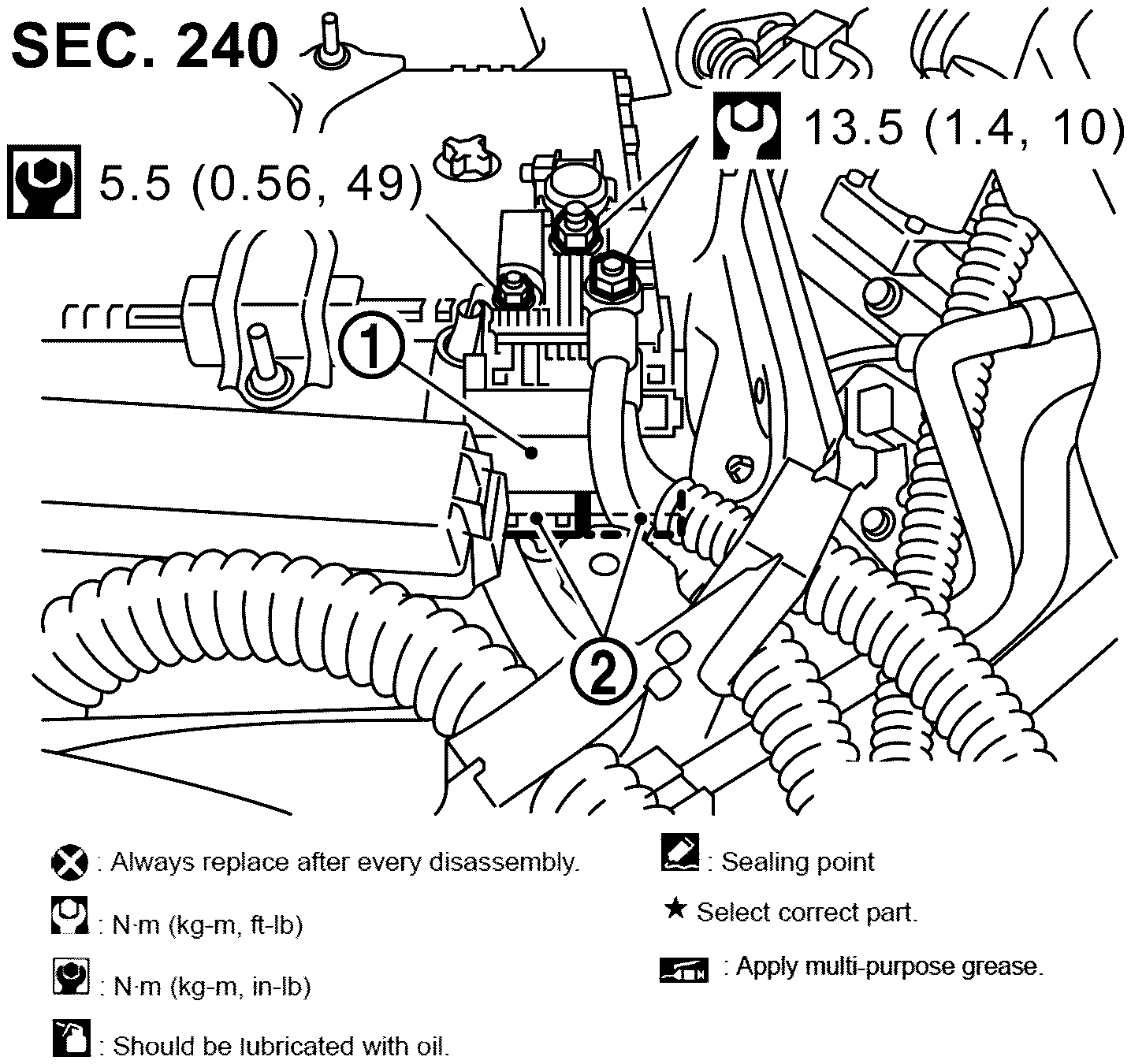

GNSJSMIA2138GB-138Courtesy of NISSAN NORTH AMERICA, INC.

1

: Battery terminal with fusible link

2

: Harness connector

Refer to Contents for symbols in the figure.
