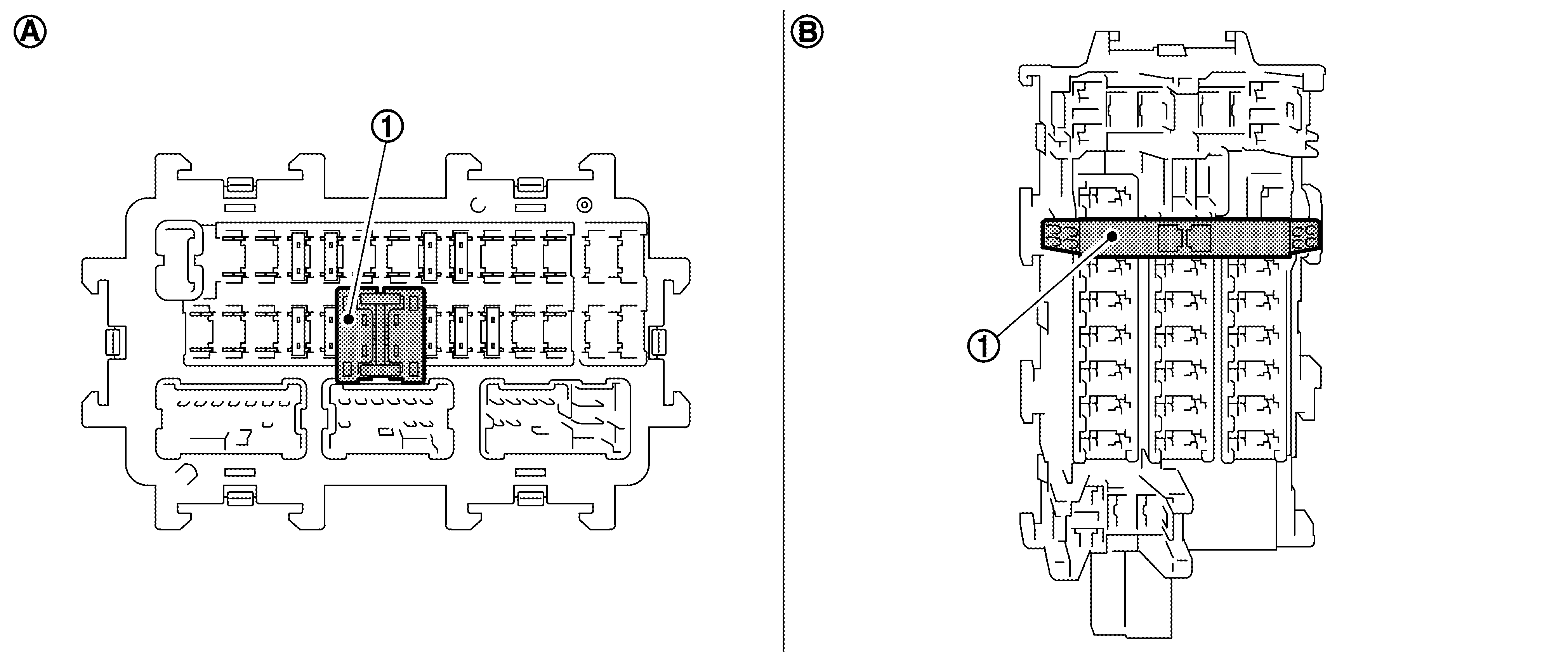

Extended Storage Switch (If Equipped)

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

Courtesy of NISSAN NORTH AMERICA, INC.

• Remove the extended storage switch when replacing the fuse of extended storage switch.
• Remove the extended storage switch if it causes the interference when the fuse or the other fuses is checked.

How To Extended Storage Switch ON/OFF

• Type A

  Courtesy of NISSAN NORTH AMERICA, INC.

  • To turn the extended storage switch OFF, pull it up in (A) direction as shown in the figure, above.
  • To turn the extended storage switch ON, press it in (B) direction as shown in the figure, above.
• Type B

  Courtesy of NISSAN NORTH AMERICA, INC.

  • To turn the extended storage switch OFF, hold (A) of the switch and pull up in (B) direction as shown in the figure, above.
  • To turn the extended storage switch ON, press it in (C) direction as shown in the figure, above.

How To Remove Extended Storage Switch

Type A

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Press pawl (A) and tilt to disengage the extended storage switch. Press pawl (B) and tilt to remove the extended storage switch.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE:

   • Extended storage switch and fuse are removed together. Remove fuse from extended storage switch, if necessary.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.

Type B

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Hold (A) and pull up the extended storage switch hard in (B) direction.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE:

   • Extended storage switch and fuse may be removed together. Remove fuse from extended storage switch, if necessary.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.
