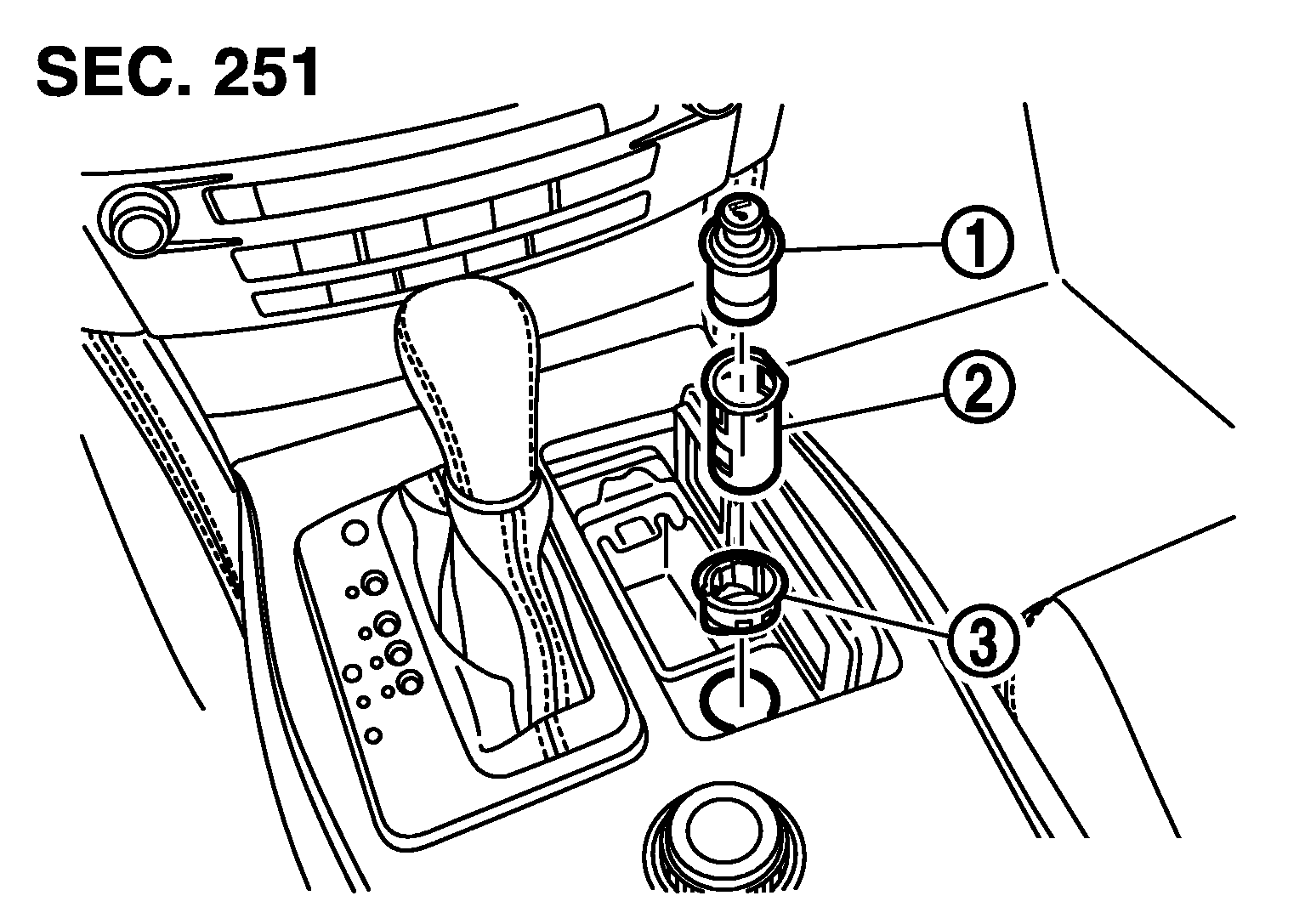

Exploded View

GNSJSMIA0280Z-280Courtesy of NISSAN NORTH AMERICA, INC.

1

: Cigarette lighter

2

: Cigarette lighter socket

3

: Cigarette lighter ring
