Component Inspection
- REMOVE FUEL LEVEL SENSOR UNIT (MAIN)
Remove the fuel level sensor unit (main). Refer to Removal and Installation .
GO TO 2.
- CHECK FUEL LEVEL SENSOR UNIT (MAIN)

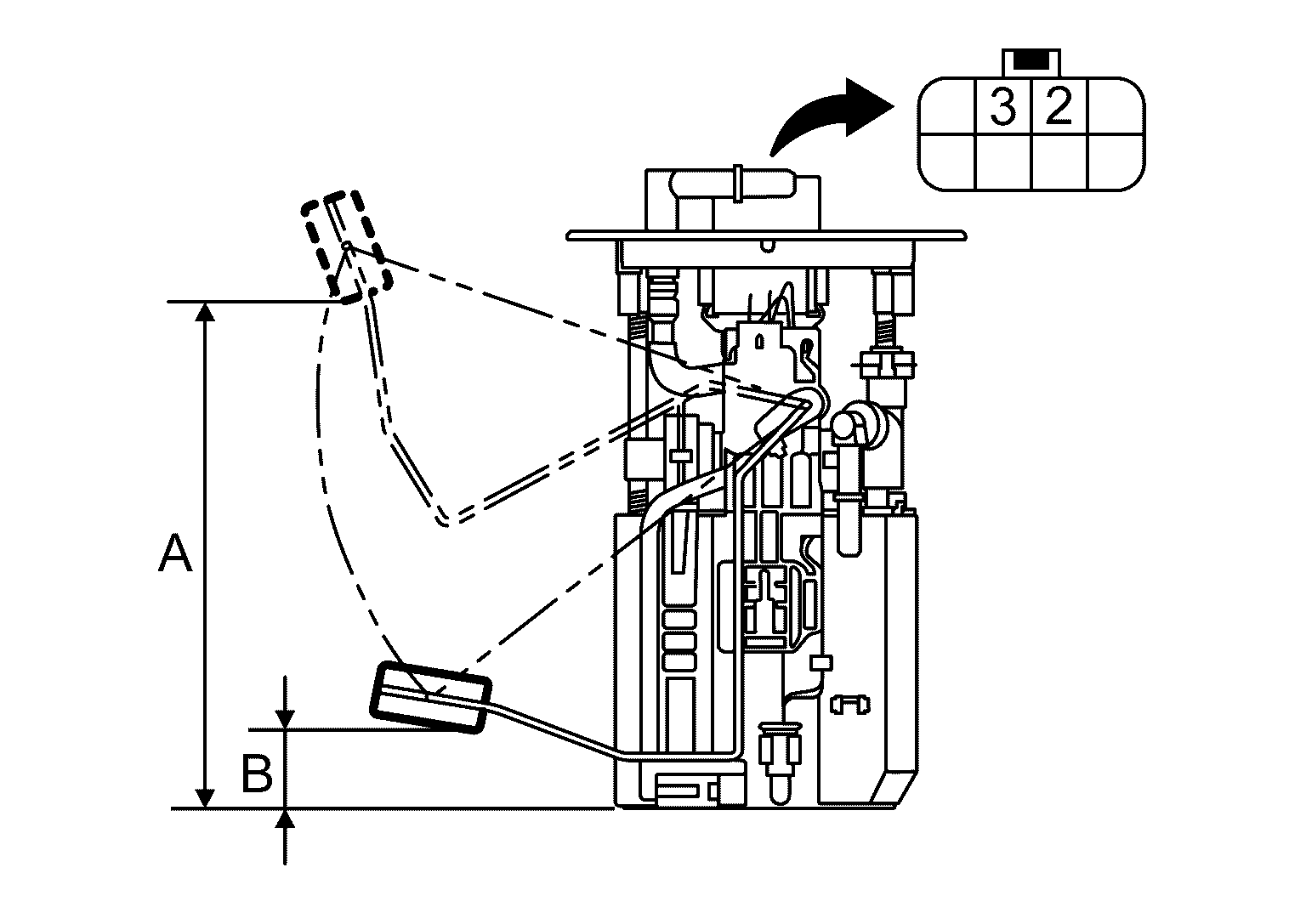

Check the resistance between fuel level sensor unit and fuel pump.
Terminals
Condition
Resistance (Ohm)
(Approx.)
Height [mm (in)]
Fuel level sensor unit (main)
2
3
Full * (A)
44
202.3 (7.96)
Empty * (B)
142
36.8 (1.449)
*: When float rod is contact with stopper.
Is the inspection result normal?
YES
GO TO 3.
NO
Replace fuel level sensor unit and fuel pump (main). Refer to Removal and Installation .
- REMOVE FUEL LEVEL SENSOR UNIT (SUB)
Remove the fuel level sensor unit (sub). Refer to Removal and Installation .
GO TO 4.
- CHECK FUEL LEVEL SENSOR UNIT (SUB)
Check the resistance between fuel level sensor unit (sub).
Terminals
Condition
Resistance (Ohm)
(Approx.)
Height [mm (in)]
Fuel level sensor unit (main)
2
3
Full * (A)
7
3.9 (0.154)
Empty * (B)
142
175.8 (6.92)
*: When float rod is contact with stopper.
Is the inspection result normal?
YES
INSPECTION END
NO
Replace fuel level sensor unit (sub). Refer to Removal and Installation .
