Exploded View

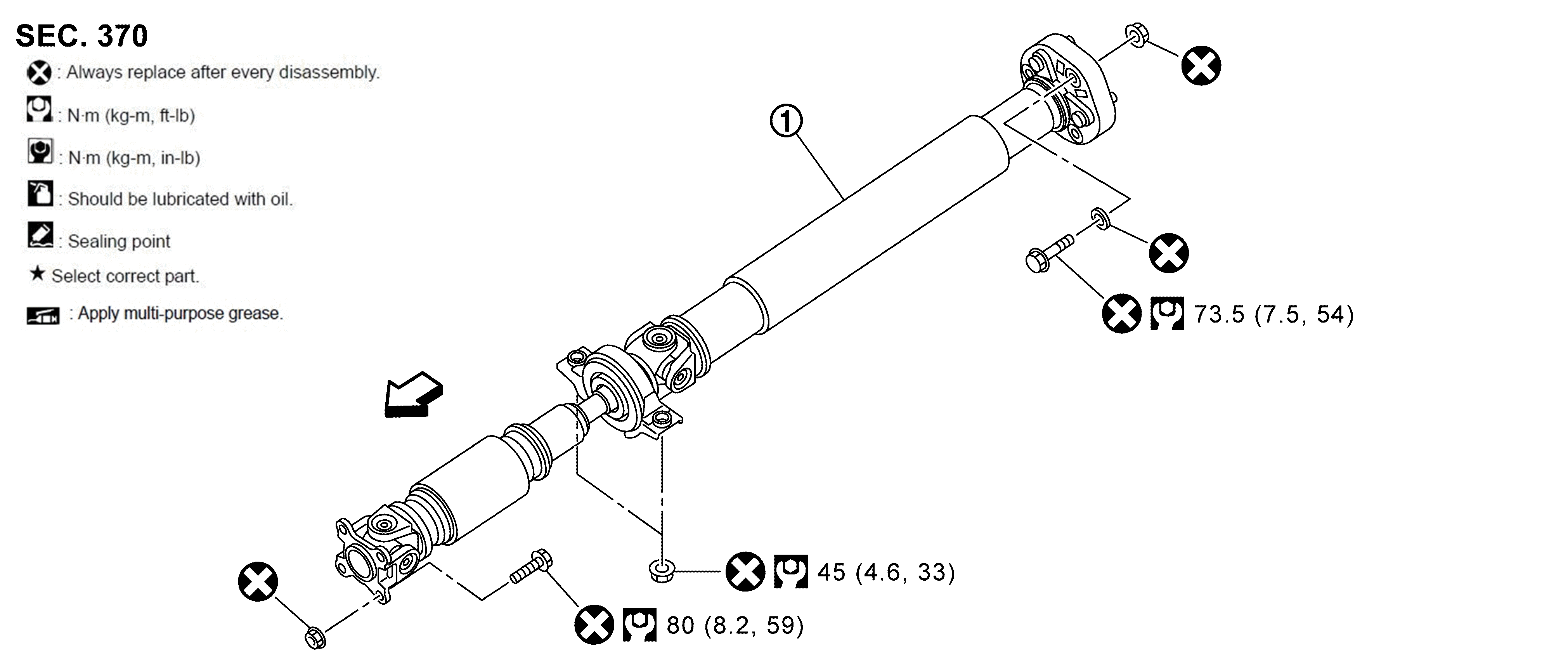

Fig 1: Rear Propeller Shaft (3F80A-R) With Torque Specifications
GNSJSDIA6912GB-912Courtesy of NISSAN NORTH AMERICA, INC.

1.

Propeller shaft assembly

SYMBOL : Vehicle front

Refer to Components for symbols in the figure.
