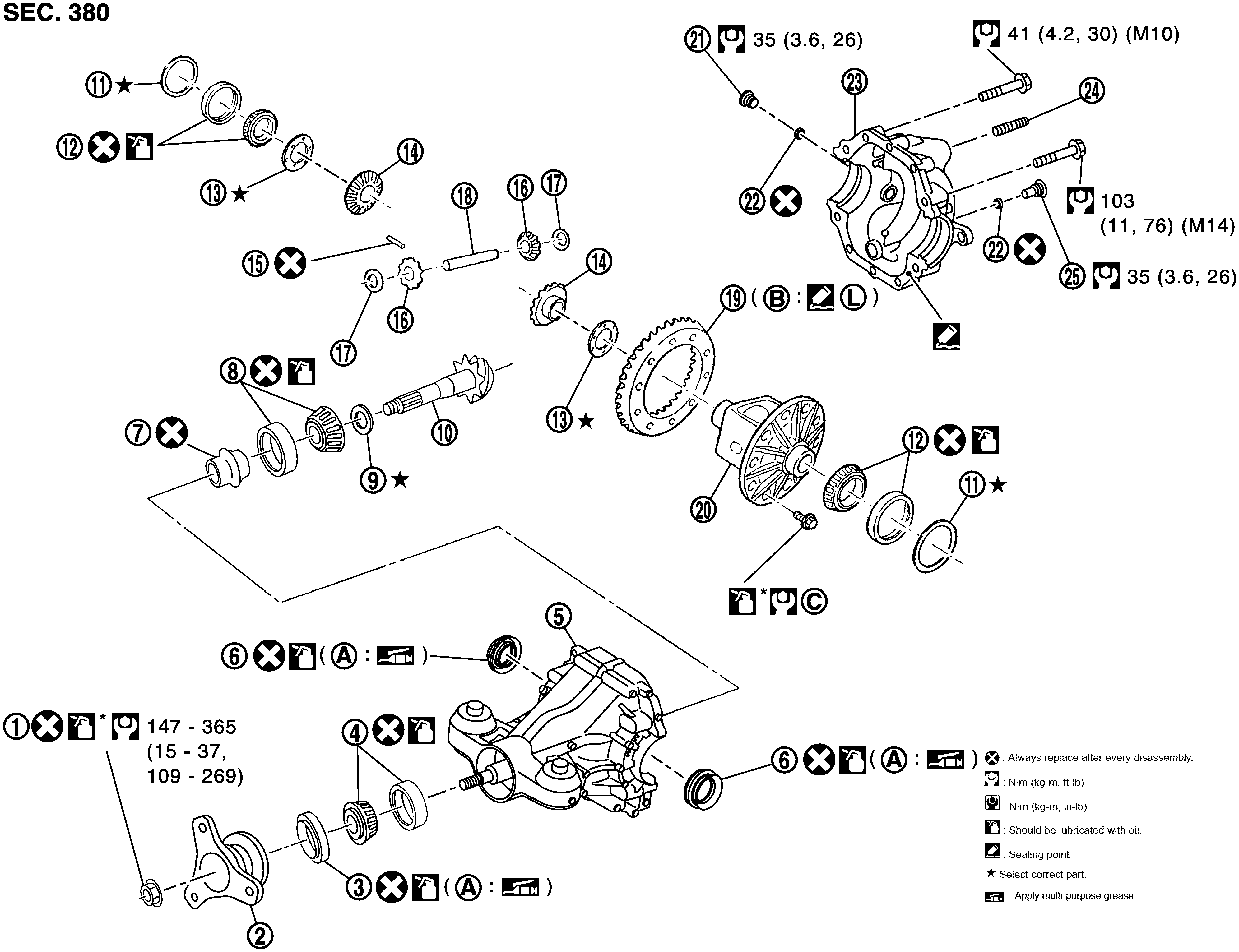

Exploded View

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Collapsible spacer

8.

Pinion rear bearing

9.

Pinion height adjusting washer

10.

Drive pinion

11.

Side bearing adjusting washer

12.

Side bearing

13.

Side gear thrust washer

14.

Side gear

15.

Lock pin

16.

Pinion mate gear

17.

Pinion mate thrust washer

18.

Pinion mate shaft

19.

Drive gear

20.

Differential case

21.

Filler plug

22.

Gasket

23.

Rear cover

24.

Stud bolt

25.

Drain plug

A.

Oil seal lip

B.

Screw hole

C.

Comply with the assembly procedure when tightening. Refer to Assembly .

: Apply gear oil.

: Apply anti-corrosion oil.

: Apply Genuine Silicone RTV or equivalent. Refer to Recommended Chemical Products and Sealants .

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

Refer to Components for symbols not described on the above.
