Drive Gear RUNOUT

  1. Remove rear cover. Refer to Disassembly .
  2. Following the procedure below, install a dummy cover set [SST: KV381091S0 (--)] to gear carrier.
    1. Using rear cover mounting bolt, temporarily install color [SST: KV38109140 (--)] and dummy cover [SST: KV38109110 (--)] to gear carrier.
    2. Position colors and dummy cover spacers [SST: KV38109120 (--)] to dummy cover.
    3. Using dummy cover mounting bolt (rear cover mounting bolt), tighten bolts to the specified torque with colors. Refer to Exploded View .
    4. Tighten dummy cover spacer mounting bolts evenly to the specified torque.

      Tightening torque

      : 5.9 N.m (0.6 kg-m)

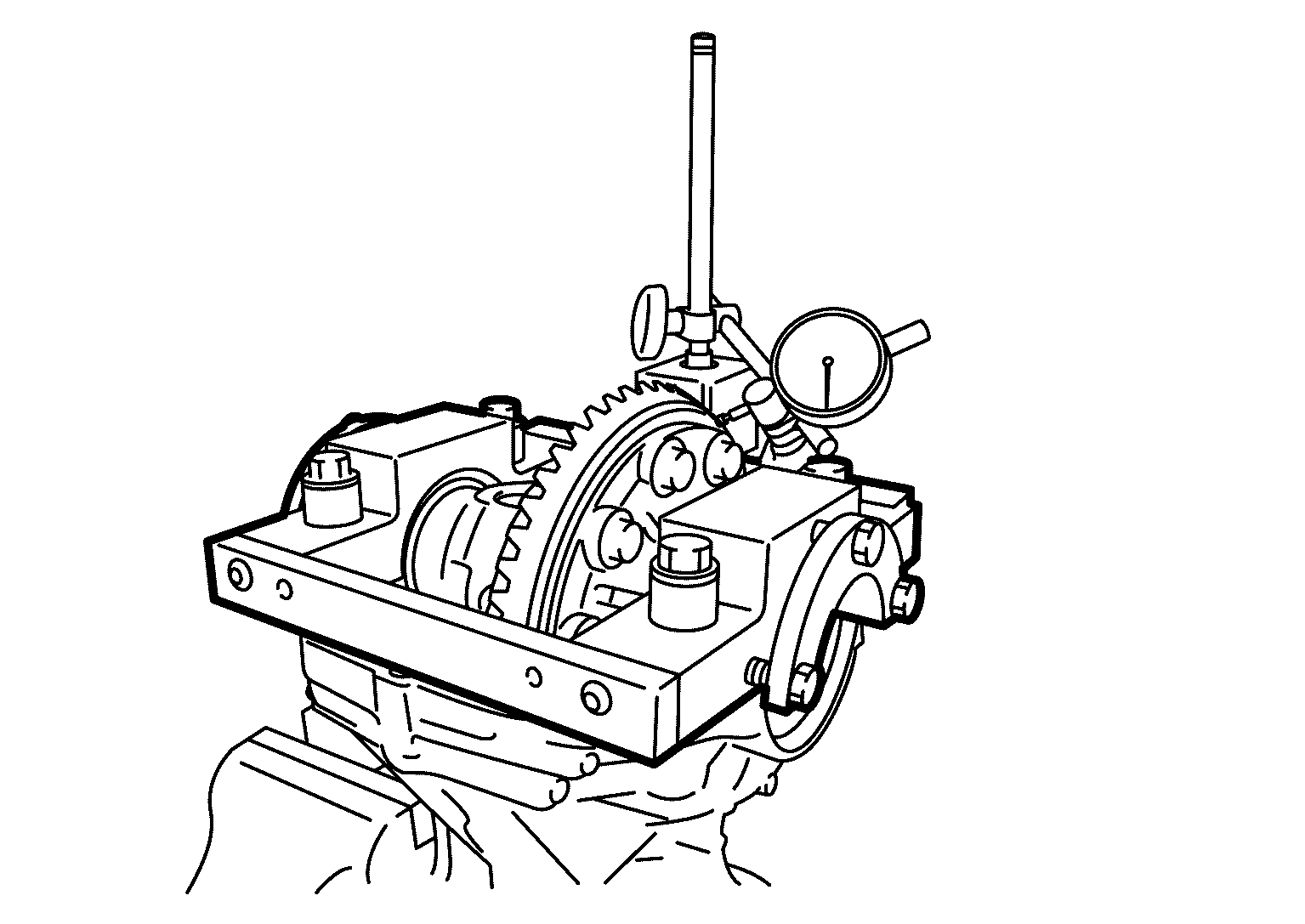

  3. Fit a dial indicator to the drive gear back face.
    GNSJPDID0358Z-358Courtesy of NISSAN NORTH AMERICA, INC.
  4. Rotate the drive gear to measure runout.

    Drive gear back face runout

    : Refer to Drive Gear Runout .
    • If the runout is outside of the repair limit, check drive gear assembly condition; foreign material may be caught between drive gear and differential case, or differential case or drive gear may be deformed, etc.
    CAUTION: Replace drive gear and drive pinion as a set.
