Removal and Installation: Removal

  1. Remove center muffler with a power tool. Refer to Removal and Installation .
  2. Remove stabilizer bar with a power tool. Refer to Removal and Installation .
  3. Remove rear propeller shaft from the final drive. Refer to Removal and Installation (2WD), Removal and Installation (AWD).
  4. Remove rear suspension member stay. Refer to Removal and Installation .
  5. Separate drive shaft from final drive. Refer to Removal and Installation .
  6. Remove breather hose from the final drive.

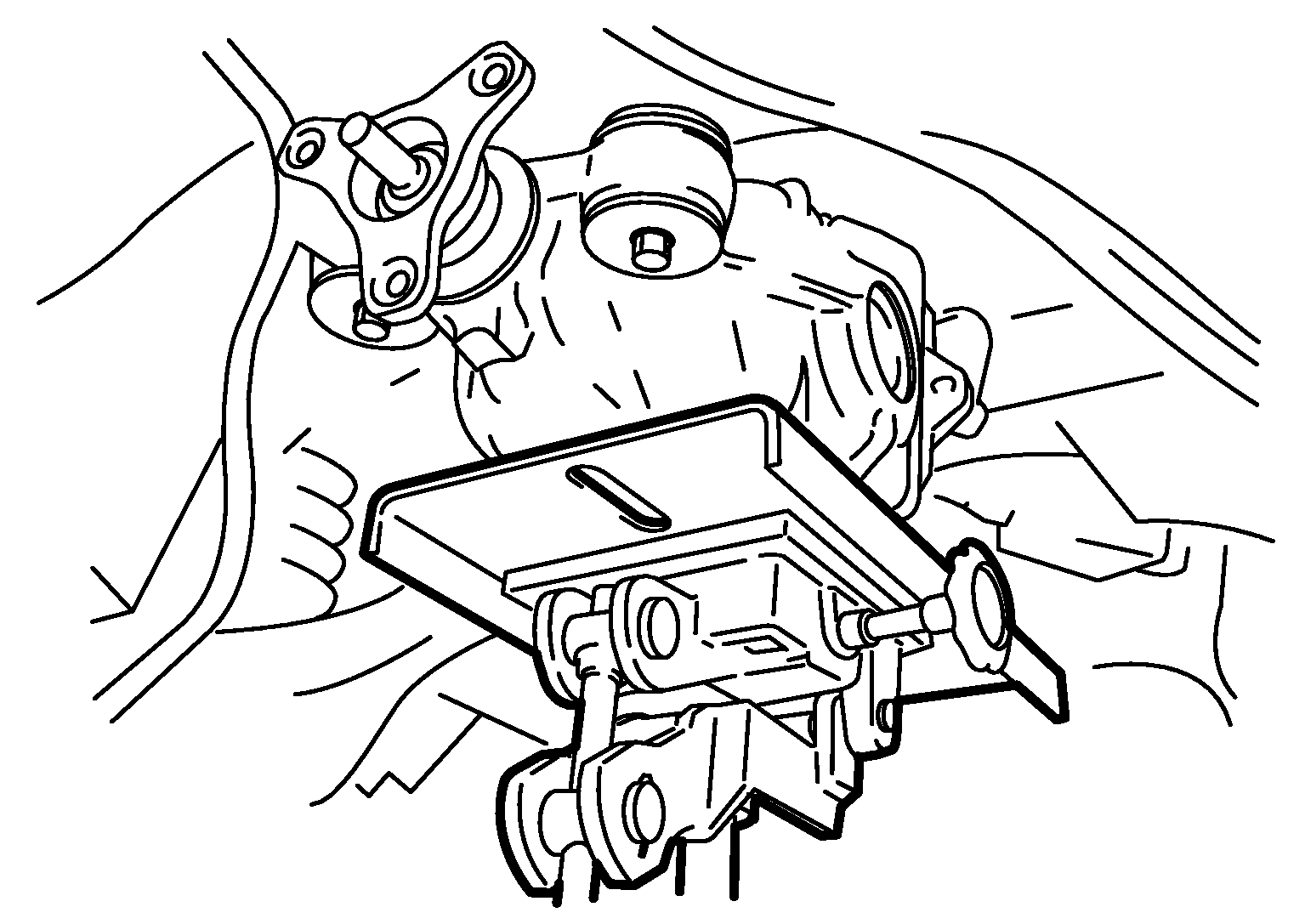

  7. Set a suitable jack to rear final drive assembly.
    GNSJSDIA0026Z-026Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never place a jack on the rear cover (aluminum case).
  8. Remove rear wheel sensor. Refer to Removal and Installation .
  9. Remove the mounting bolts and nuts connecting to the suspension member with a power tool. And then, remove rear final drive assembly.
    CAUTION: Secure rear final drive assembly to suitable jack while removing it.
