Exploded View

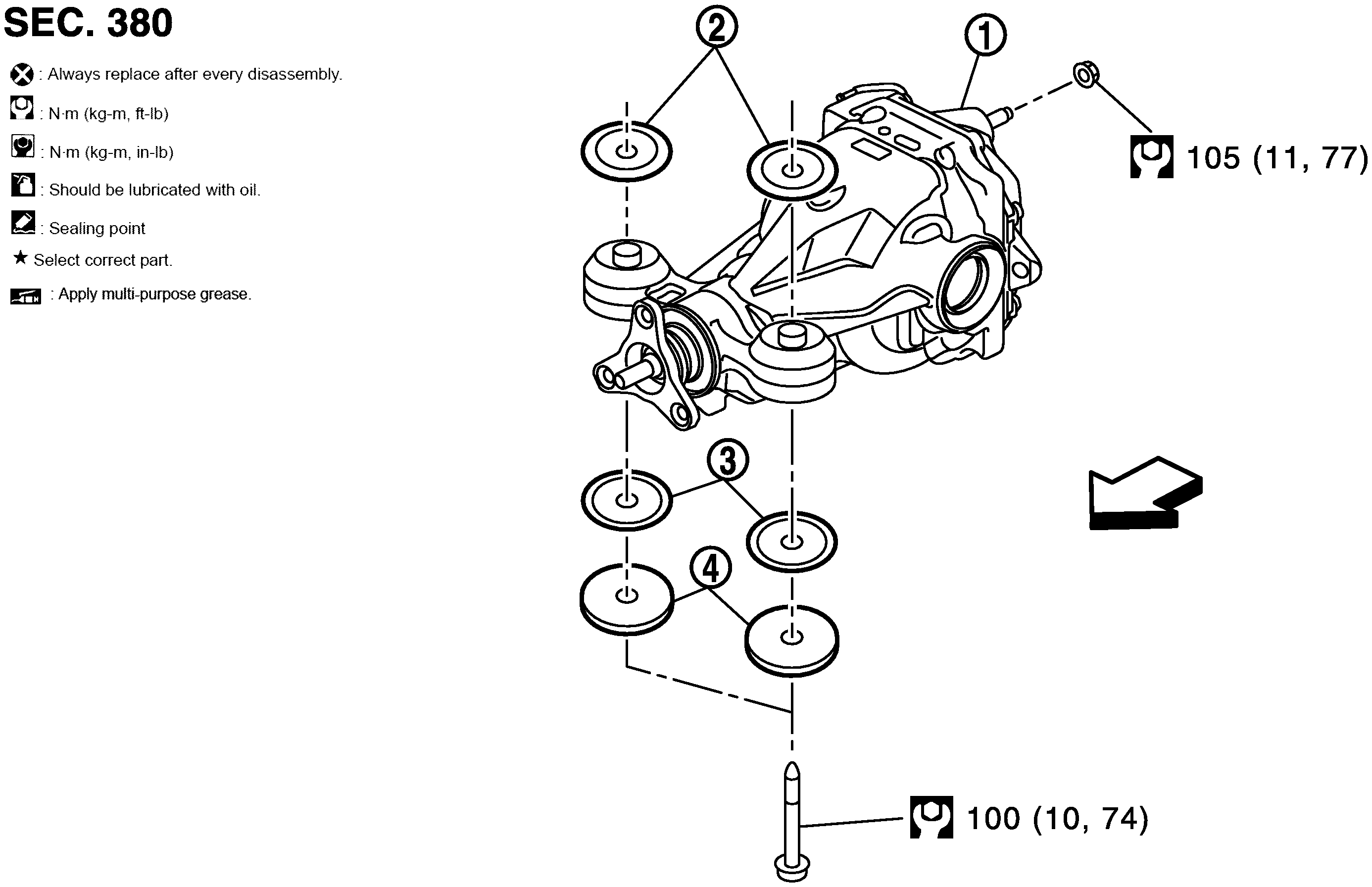

Fig 1: Rear Final Drive Assembly R200 With Torque Specifications
GNSJPDID0283GB-283Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear final drive assembly

2.

Upper stopper

3.

Lower stopper

4.

Washer

SYMBOL : Vehicle front

Refer to Components for symbols in the figure.
