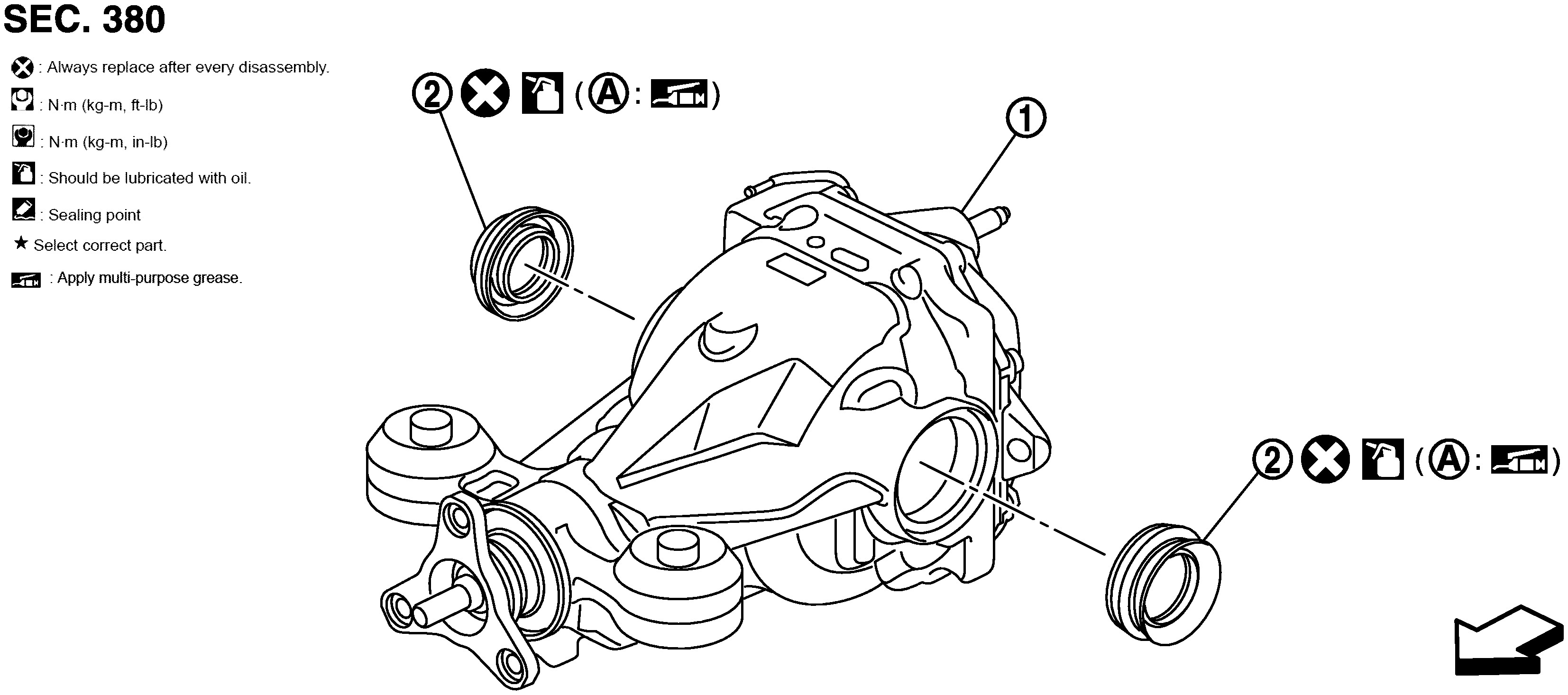

Exploded View

GNSJPDID0282Z-282

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Final drive assembly	2.	Side oil seal
A.	Oil seal lip

: Vehicle front
: Apply gear oil.
Refer to Components for symbols not described on the above.
