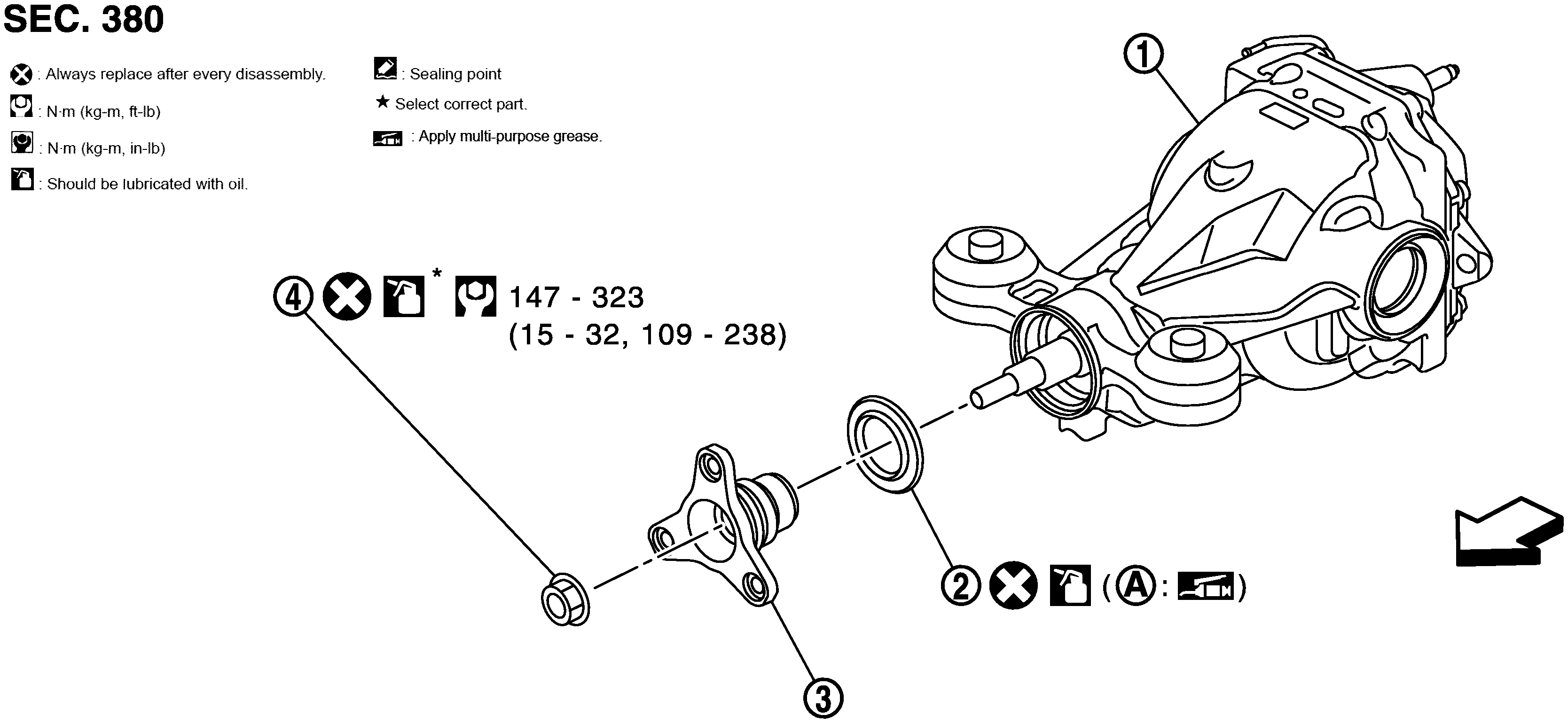

Exploded View
|
1. |
Final drive assembly |
2. |
Front oil seal |
3. |
Companion flange |
|
4. |
Drive pinion lock nut |
||||
|
A. |
Oil seal lip |
|
|
|||||
|
|
|||||
|
|
|||||
|
Refer to Components for symbols not described on the above. |
