Rear Differential Gear Oil: Refilling

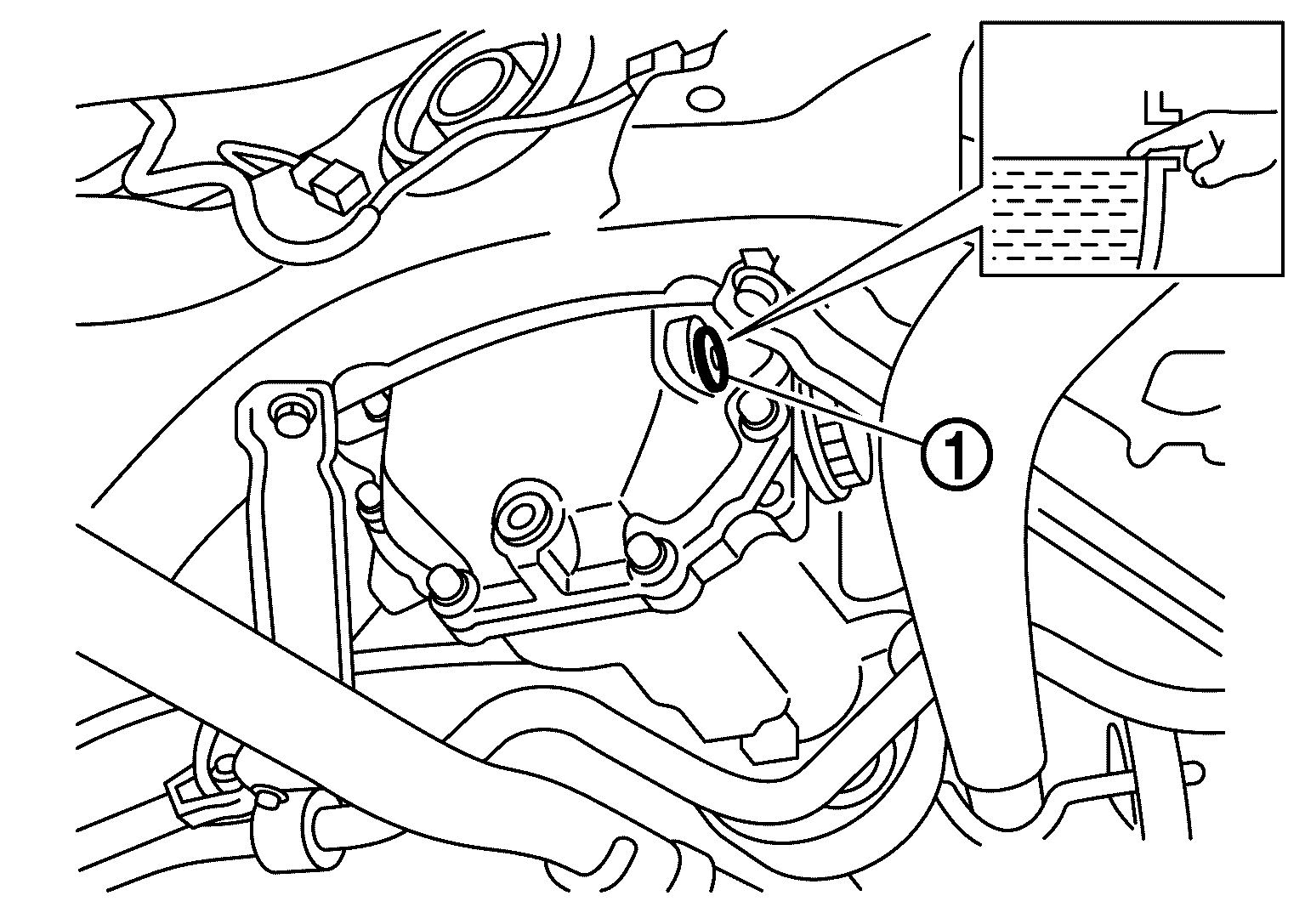

  1. Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
    GNSJPDID0423Z-423Courtesy of NISSAN NORTH AMERICA, INC.

    Recommended oil and capacity

    : Refer to Fluids and Lubricants .
  2. After refilling oil, check oil level. Set a gasket to filler plug, then install it to final drive assembly. Refer to Exploded View .
    CAUTION: Never reuse gasket.
