Rear Differential Gear Oil: Draining

  1. Stop engine.

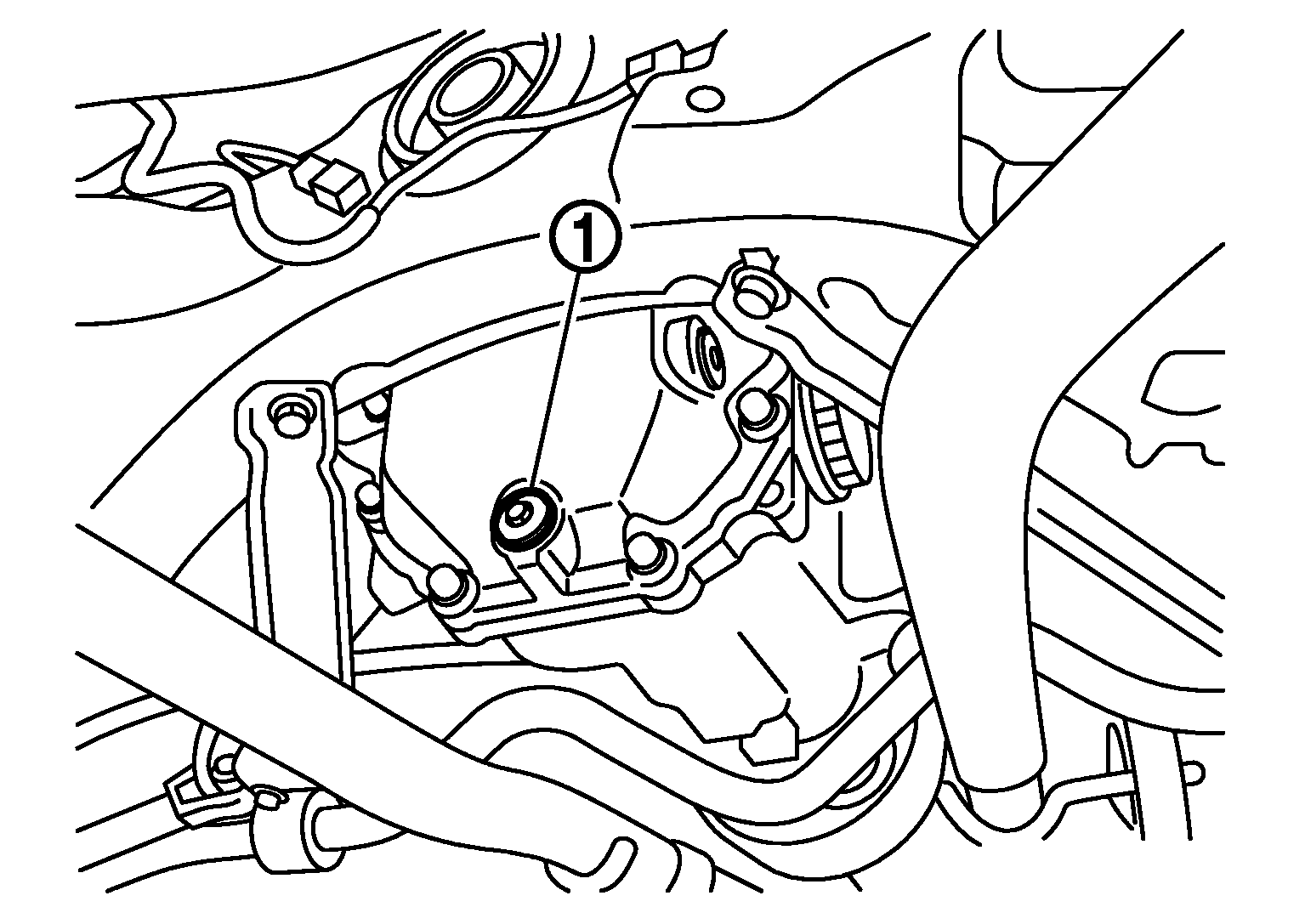

  2. Remove drain plug (1) and drain gear oil.
    GNSJPDID0294Z-294Courtesy of NISSAN NORTH AMERICA, INC.
  3. Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to Exploded View .
    CAUTION: Never reuse gasket.
