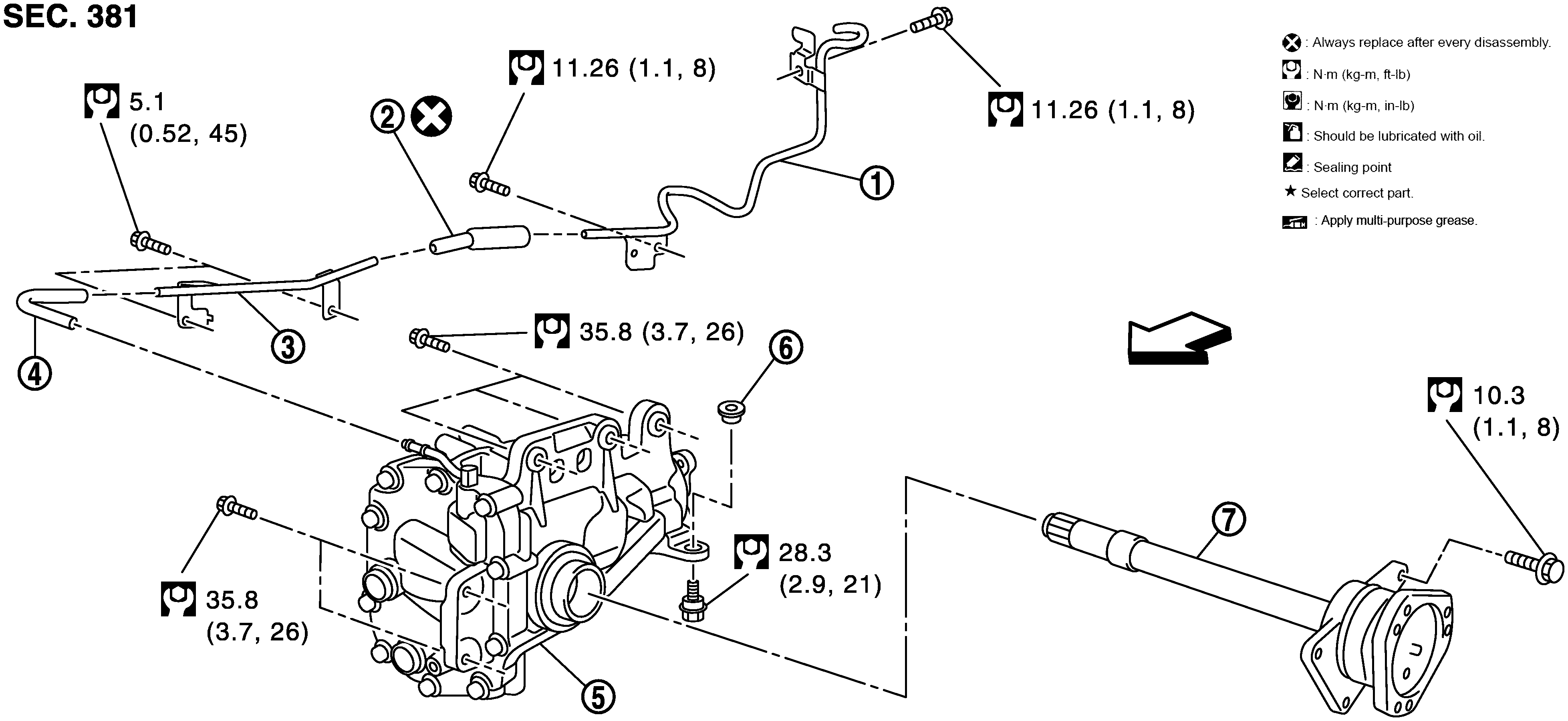

Exploded View
|
1. |
Breather tube |
2. |
Breather hose |
3. |
Breather tube |
|
4. |
Breather hose |
5. |
Front final drive assembly |
6. |
Bushing |
|
7. |
Side shaft assembly |
|
|
|||||
|
Refer to Components for symbols in the figure. |
