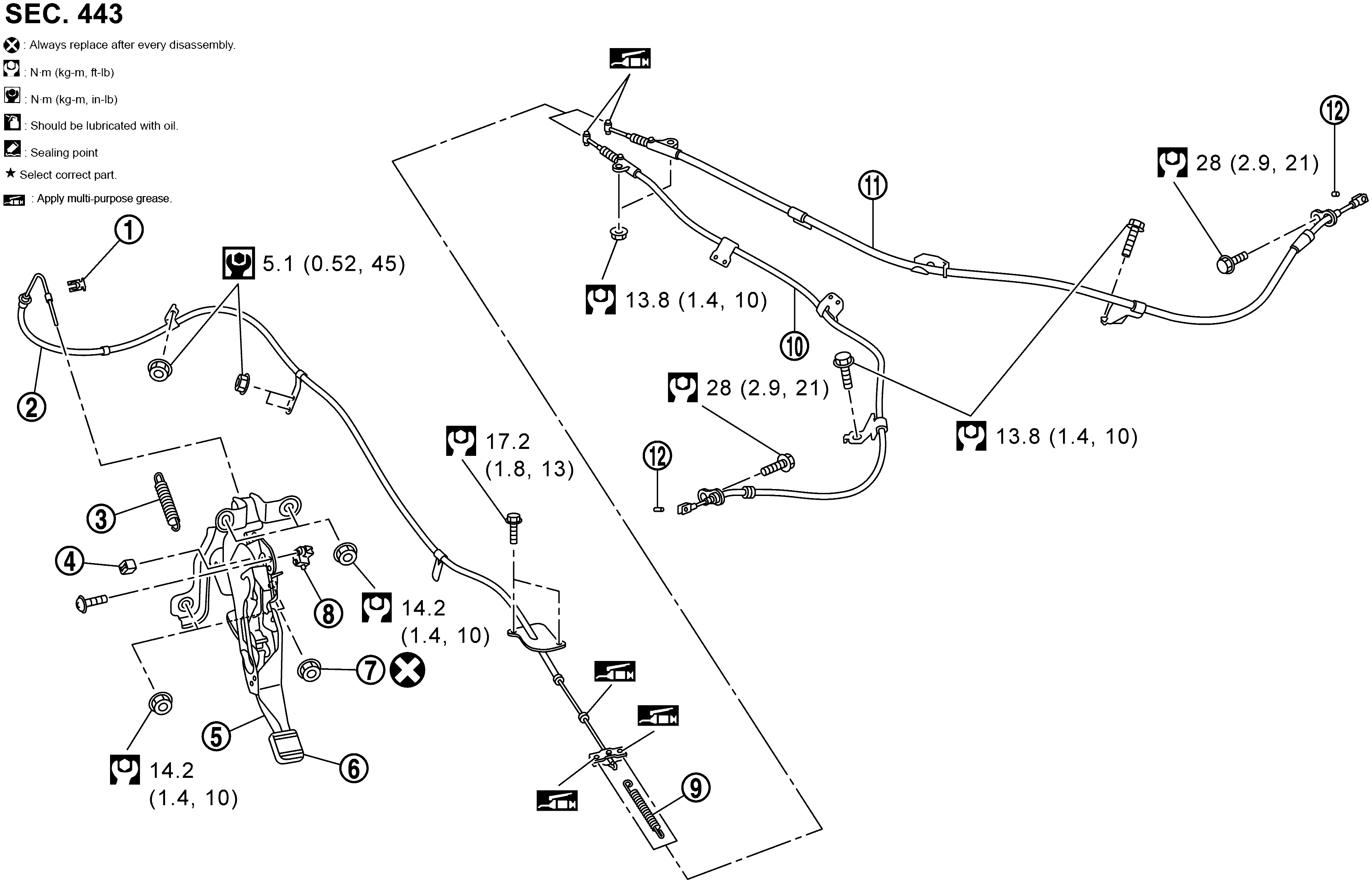

Exploded View
|
1. |
Lock Plate |
2. |
Front Cable |
3. |
Return Spring |
|
4. |
Stopper Rubber |
5. |
Parking Brake Pedal Assembly |
6. |
Pedal Pad |
|
7. |
Adjusting Nut |
8. |
Parking Brake Switch |
9. |
Spring |
|
10. |
Rear Cable (Left Side) |
11. |
Rear Cable (Right Side) |
12. |
Pin |
|
|
|||||
|
Refer to Components for symbols not described on the above. |
|||||
