Exploded View

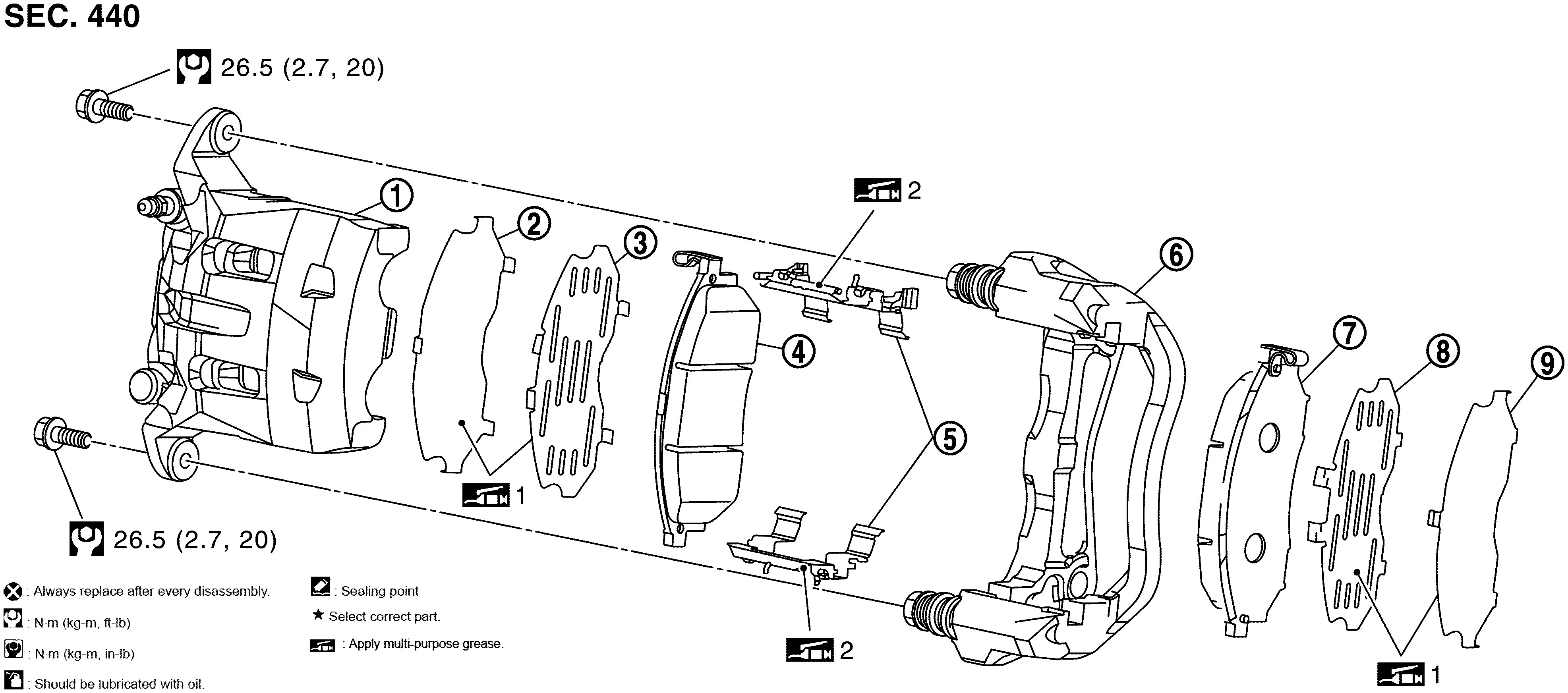

Fig 1: Front Disc Brake With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cylinder body	2.	Inner shim cover	3.	Inner shim
4.	Inner pad (with pad wear sensor)	5.	Pad retainer	6.	Torque member
7.	Outer pad	8.	Outer shim	9.	Outer shim cover
1: Apply MOLYKOTE ^® AS880N or copper based grease.
2: Apply MOLYKOTE ^® 7439 or copper based grease.
Refer to Components for symbols not described on the above.

Molykote is a registered trademark of Dow Corning Corporation.
