Inspection After Removal

Check for the following items and replace the brake pedal assembly if necessary.

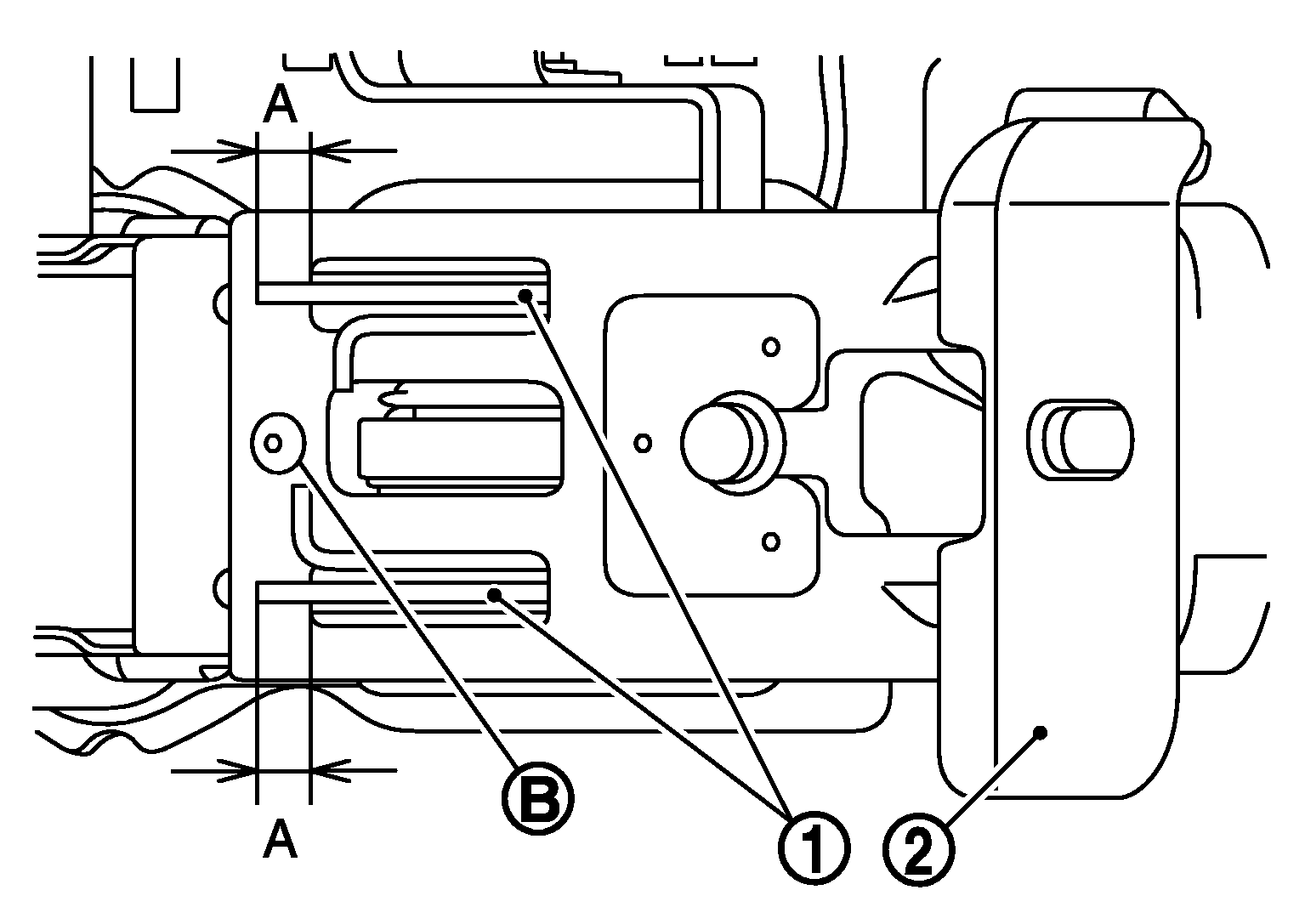

Check the brake pedal upper rivet (made by aluminum) (B) for deformation.

Courtesy of NISSAN NORTH AMERICA, INC.

Check the lapping length (A) of sub-bracket (1) and slide plate (2).

A	: 5.0 mm (0.197 in) or more

Check clevis pin and plastic stopper (A) for damage and deformation. If any is found, replace clevis pin.

Courtesy of NISSAN NORTH AMERICA, INC.
