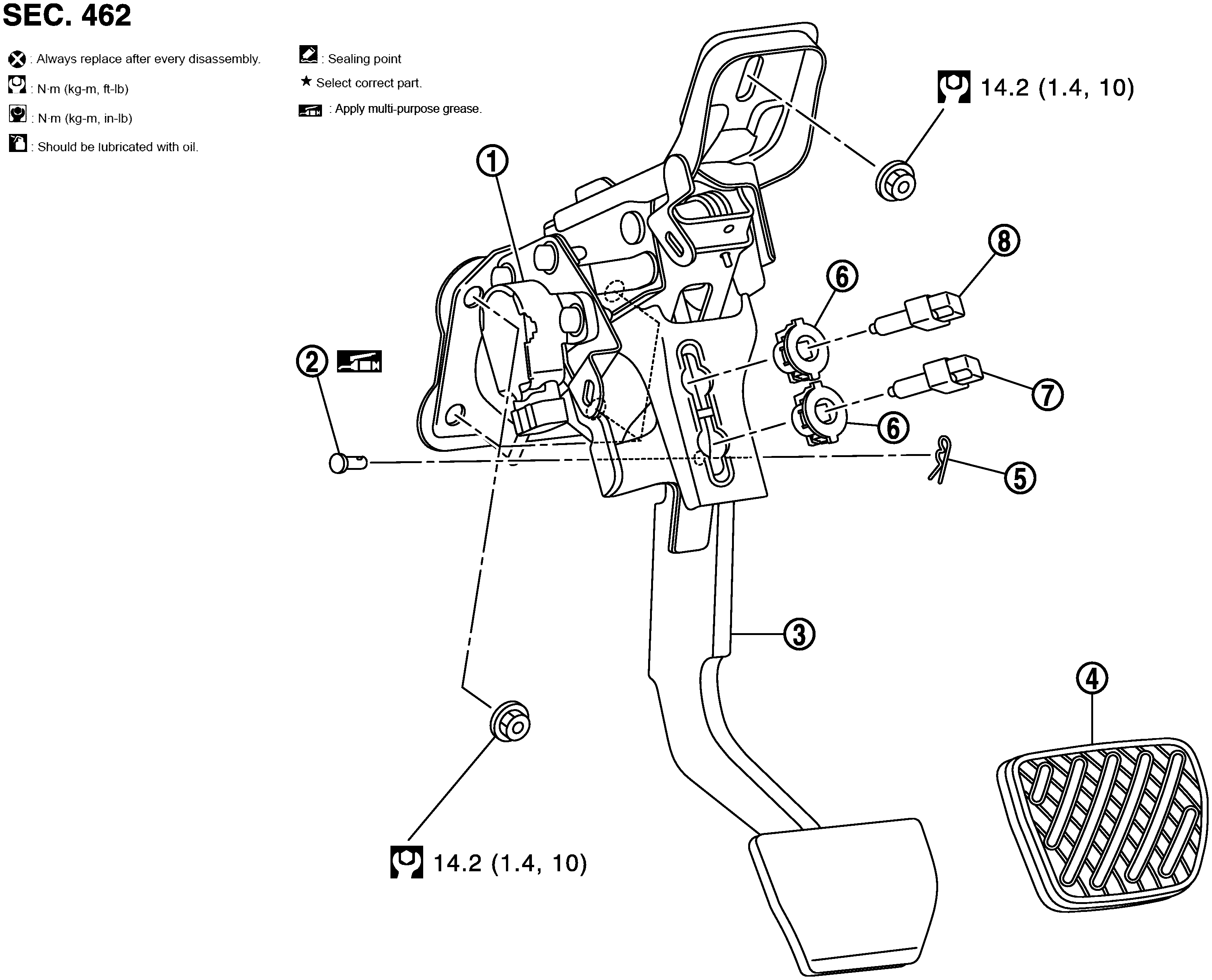

Exploded View
|
1. |
Brake pedal stroke sensor (with pre-crash seat belt) |
2. |
Clevis pin |
3. |
Brake pedal assembly |
|
4. |
Brake pedal pad |
5. |
Snap pin |
6. |
Clip |
|
7. |
Brake switch |
8. |
Stop lamp switch |
||
|
|
|||||
|
Refer to Components for symbols not described on the above. |
|||||
