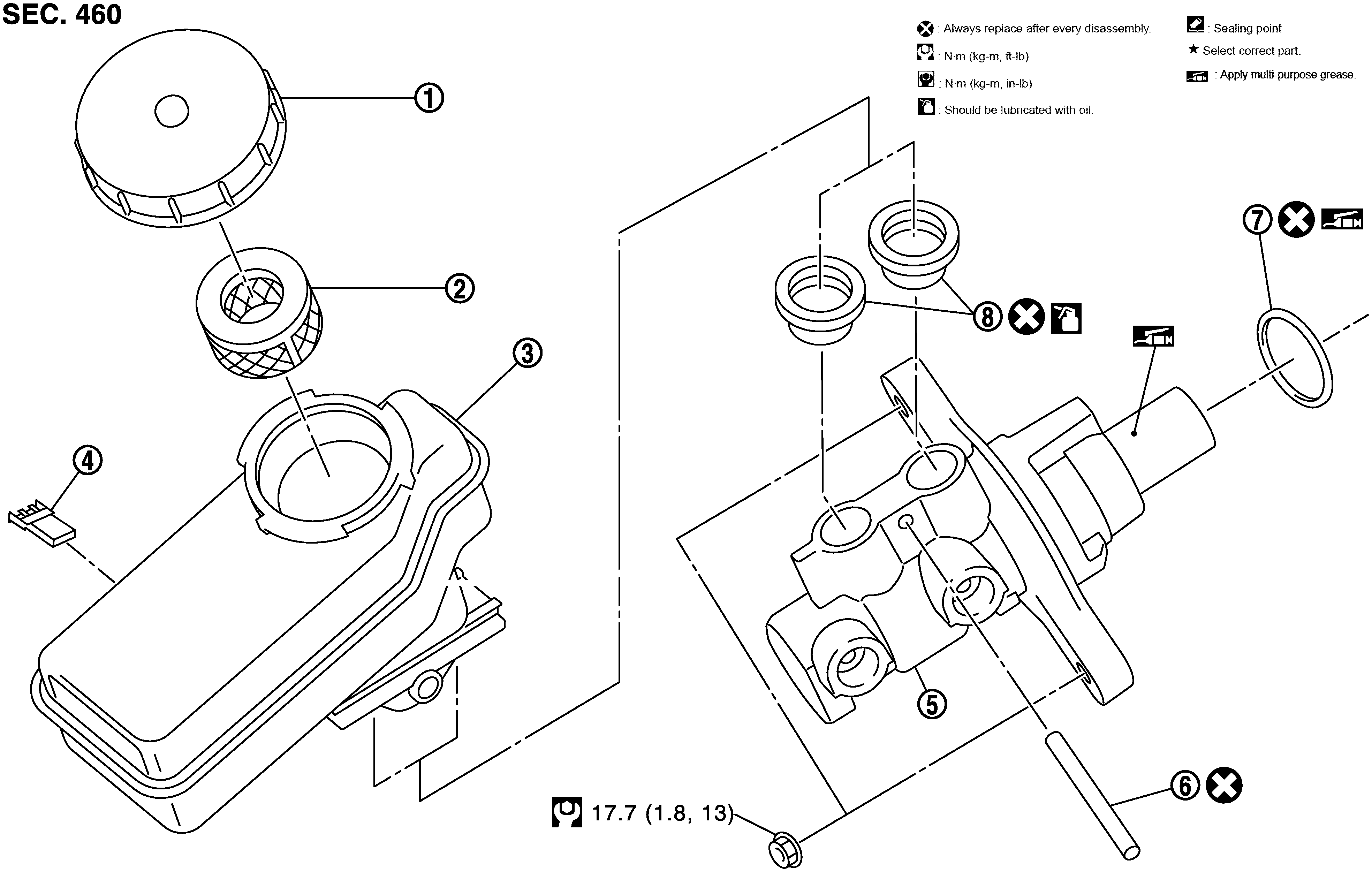

Exploded View

1.

Reservoir cap

2.

Oil strainer

3.

Reservoir tank

4.

Brake fluid level switch connector

5.

Cylinder body

6.

Pin

7.

O-ring

8.

Grommet

: Apply silicone grease.

: Apply brake fluid.

Refer to Components for symbols not described on the above.
