Adjustment After Removal

Input Rod Length adjustment

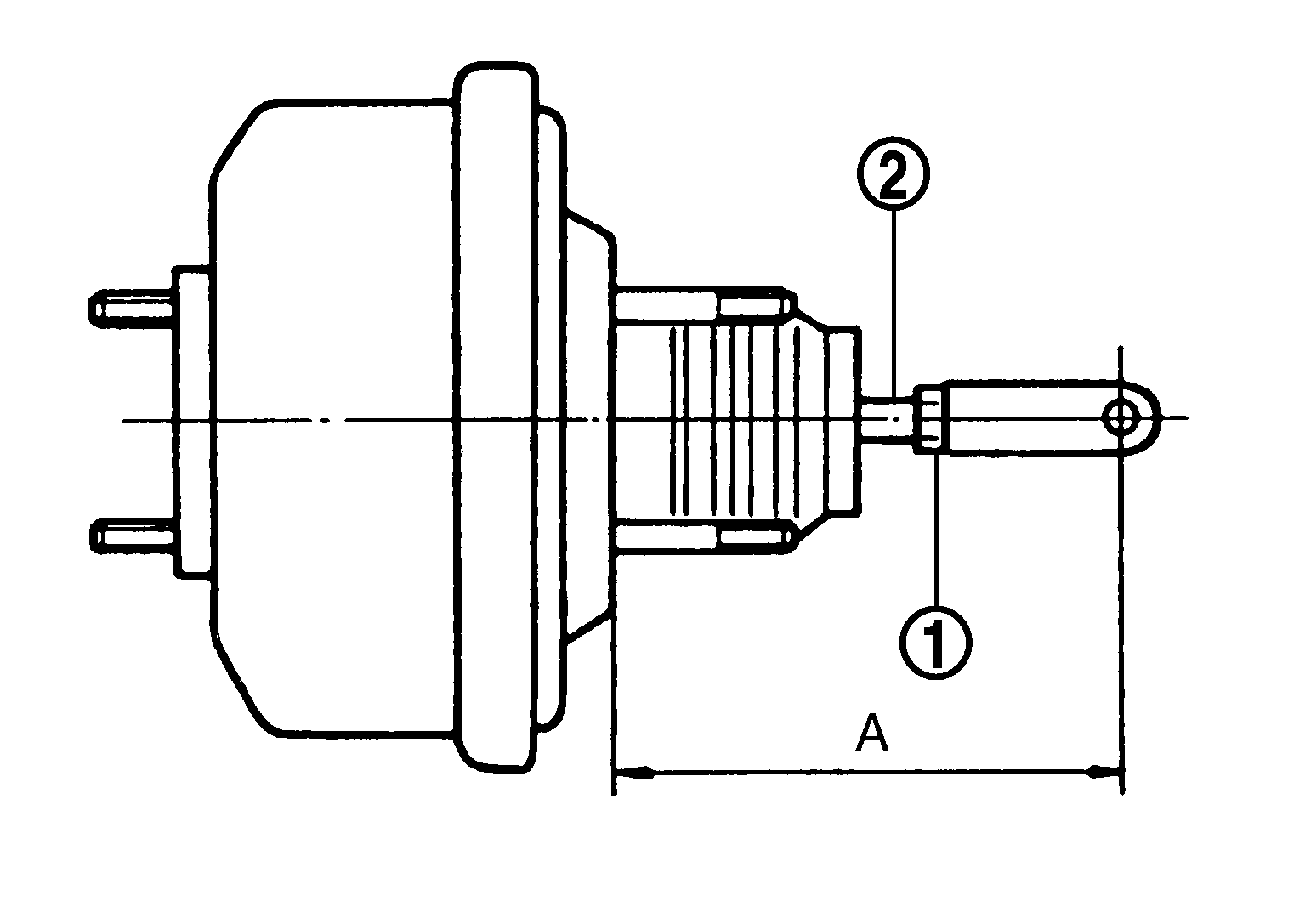

  1. Loosen the lock nut (1) and adjust the input rod (2) to the specified length (A).
    GNSJPFIA0238Z-238Courtesy of NISSAN NORTH AMERICA, INC.

    A

    : Brake Booster .
  2. Tighten the lock nut to the specified torque.
