Exploded View

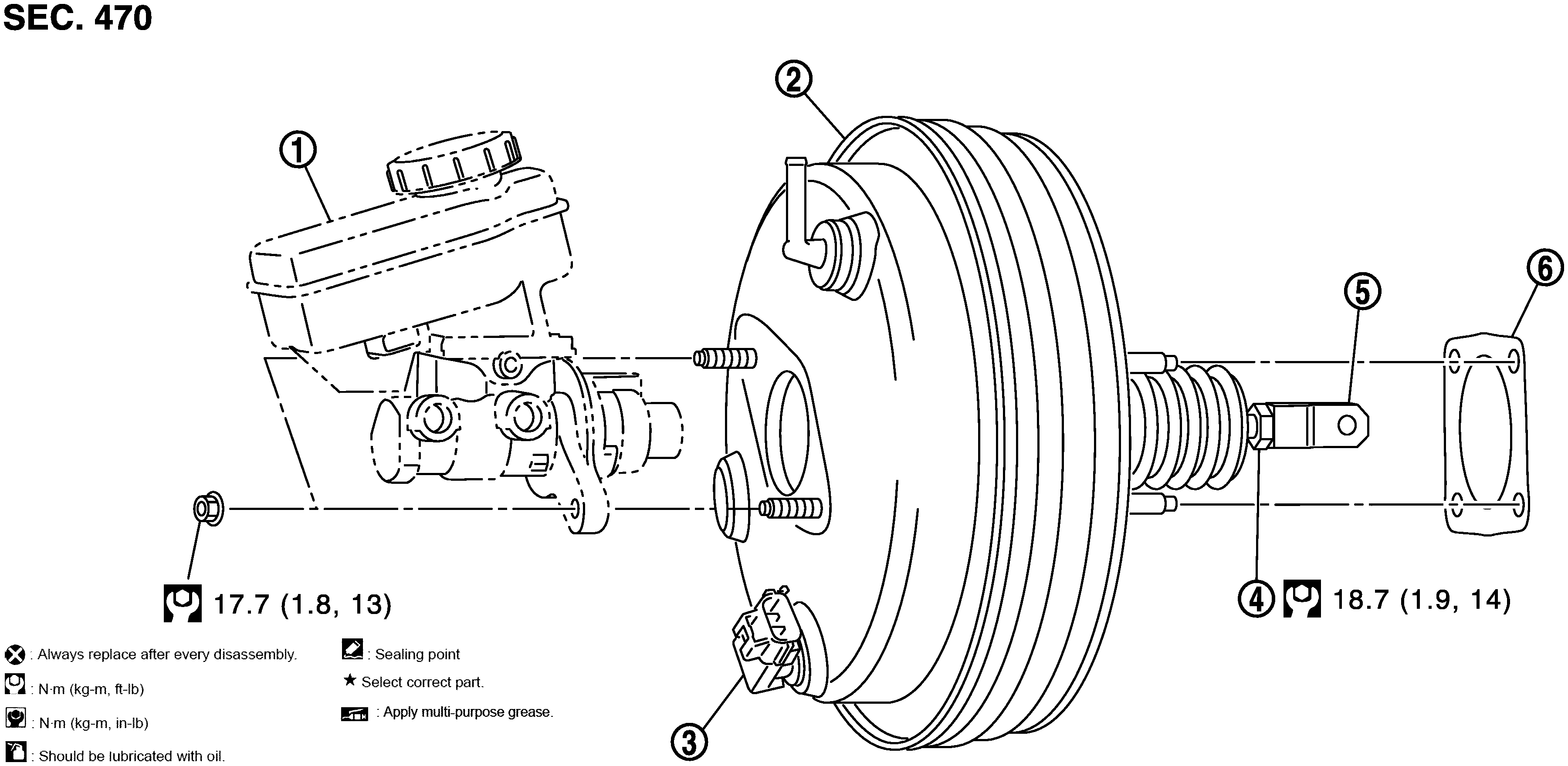

Fig 1: Brake Booster With Torque Specifications
GNSJPFIA0420GB-420Courtesy of NISSAN NORTH AMERICA, INC.

1.

Master cylinder assembly

2.

Brake booster

3.

Vacuum sensor

4.

Lock nut

5.

Clevis

6.

Gasket

Refer to Components for symbols in the figure.
