Inspection and Adjustment: Inspection

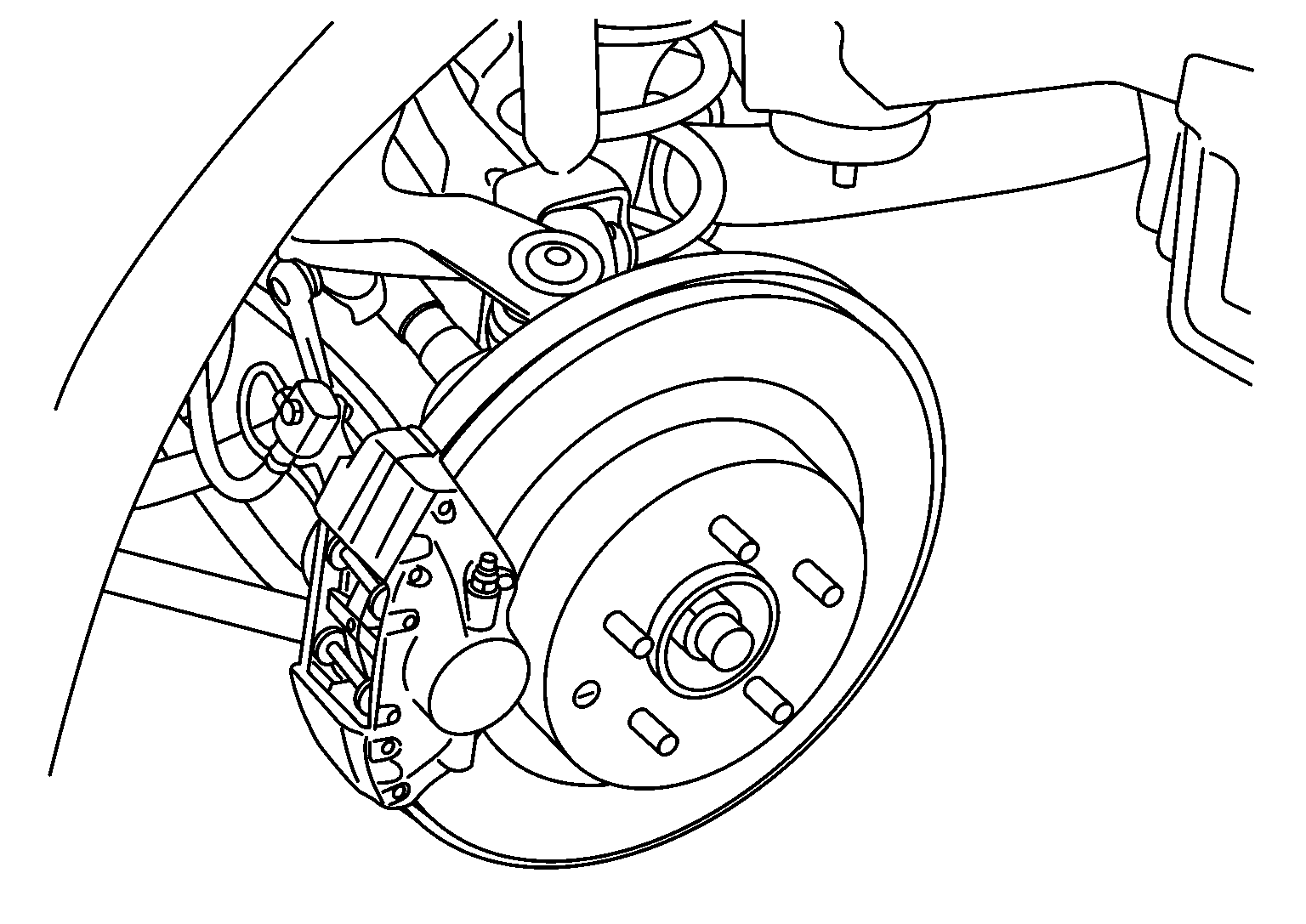

1 Piston Type

Check the brake pad wear thickness from an inspection hole on cylinder body. Check using a scale if necessary.

Courtesy of NISSAN NORTH AMERICA, INC.

2 Piston Type

Check the thickness of brake pad from the inspection hole on caliper. Check use a scale if necessary.

Courtesy of NISSAN NORTH AMERICA, INC.
