Removal and Installation: Removal

  1. Remove headlining. Refer to Removal and Installation .

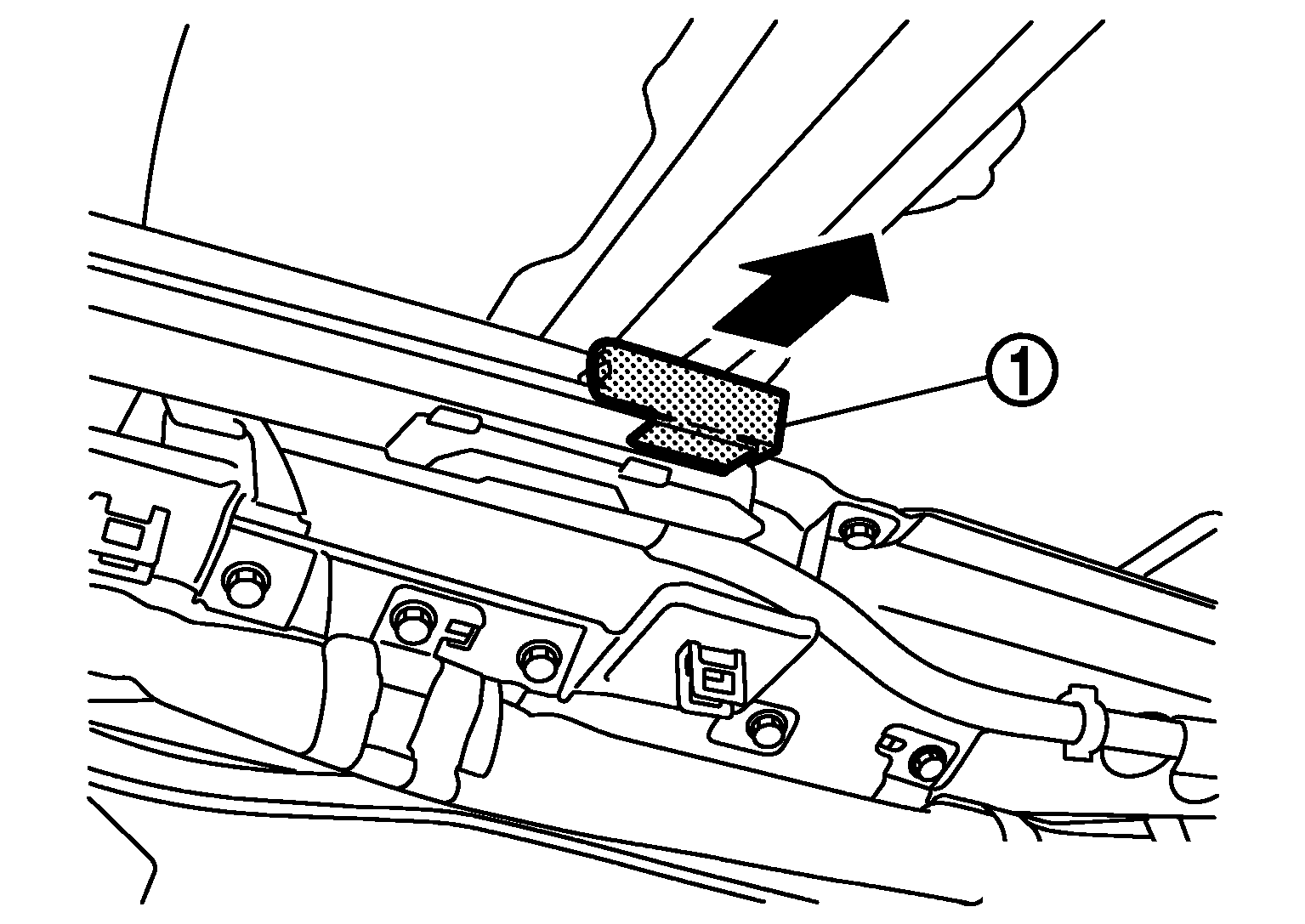

  2. Remove the sunshade stopper (1) from the rear end of sunroof frame.
    GNSJMKIA2045Z-045Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the sunshade from the rear end of sunroof frame.
