Removal and Installation: Removal
CAUTION:
- Before removing sunroof motor, check that glass lid is fully closed.
- After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.
- Fully close glass lid.
- Remove headlining. Refer to Removal and Installation .
- Remove sunroof motor.

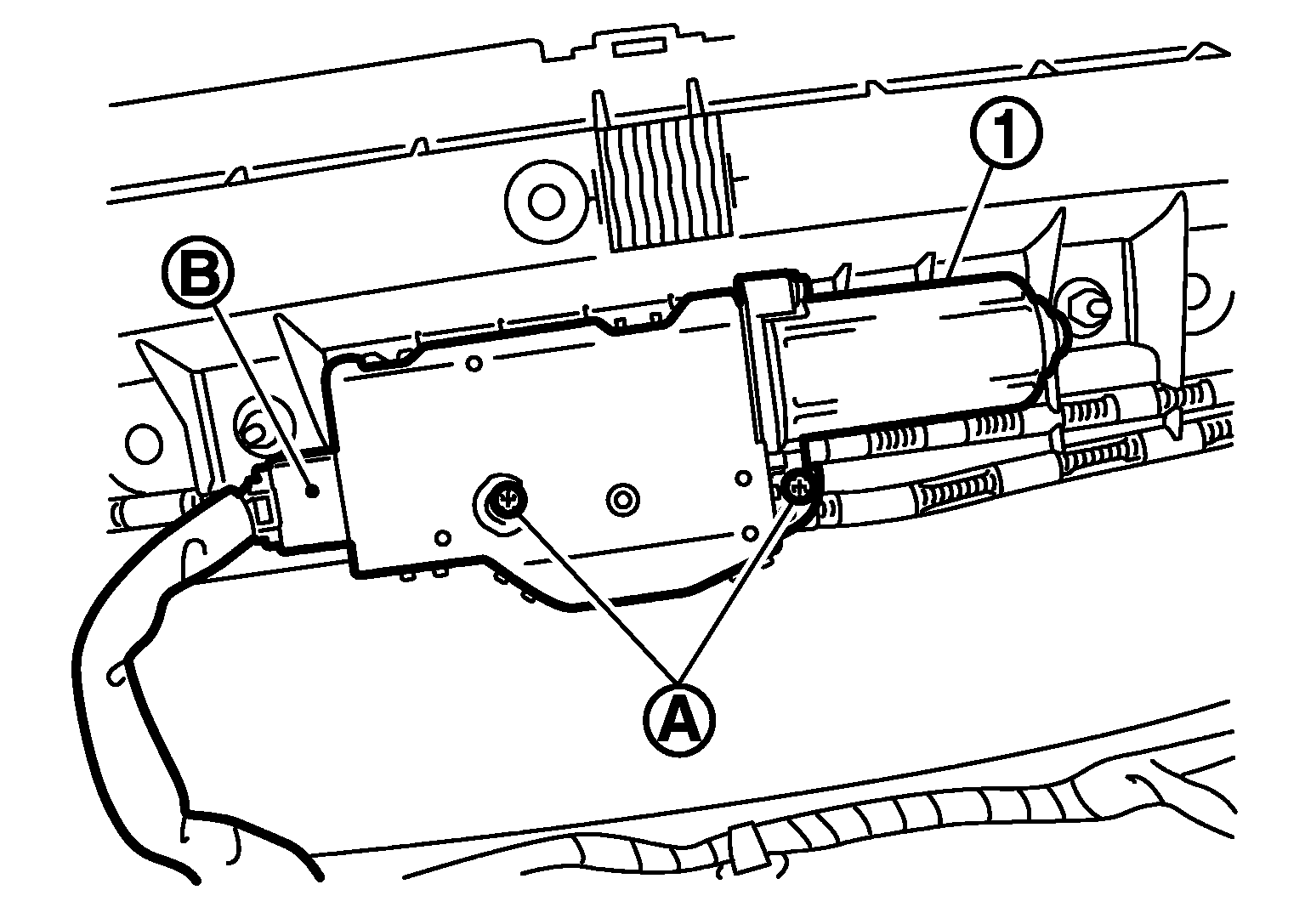

- Disconnect harness connector (B) from sunroof motor (1).
- Remove sunroof motor assembly fixing screws (A), and then remove sunroof motor assembly.
