Glass Lid: Adjustment
|

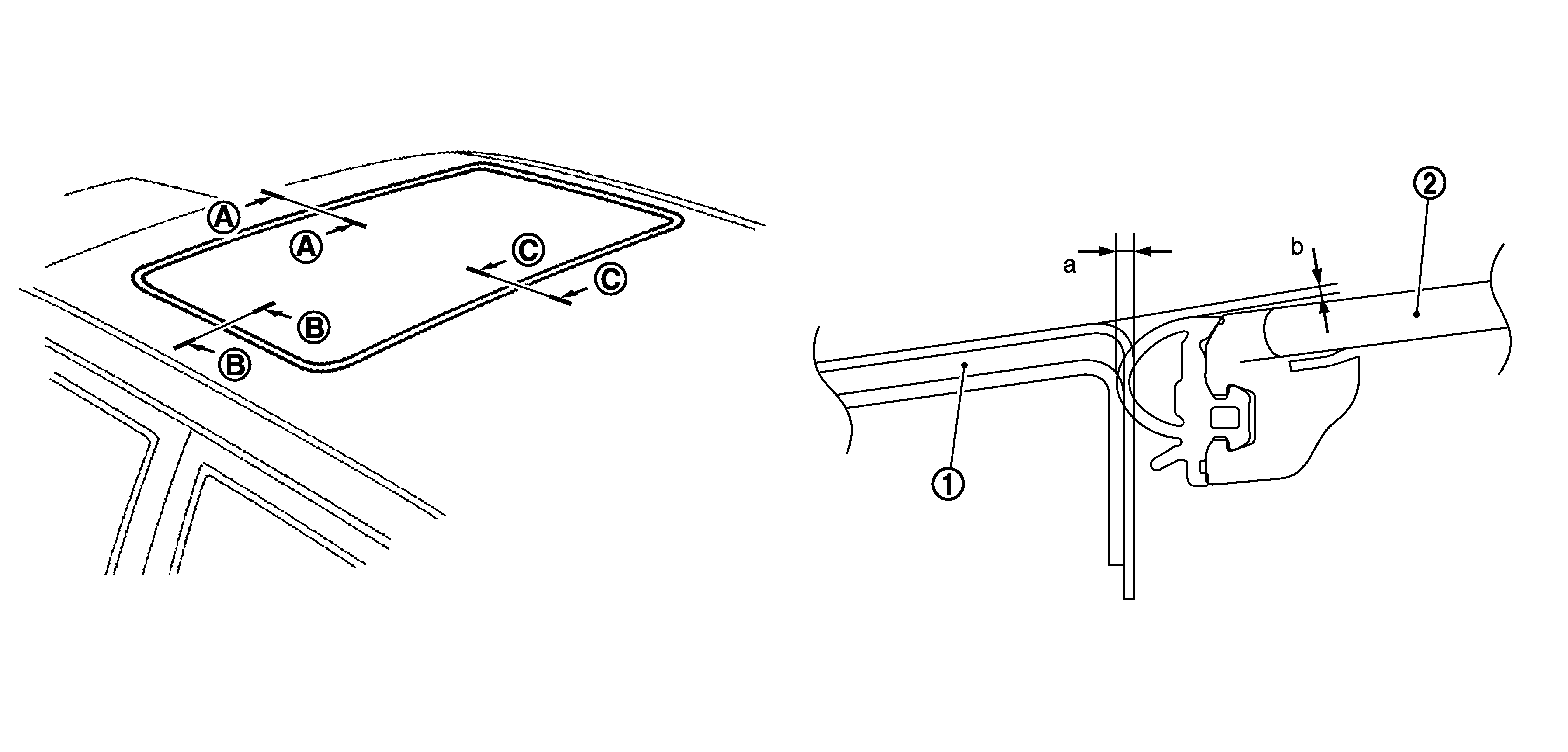

1. |
Roof Panel |
2. |
Glass Lid |
If the clearance and the surface height are out of specification, adjust them according to the procedures shown below.
|
Portion |
a (Clearance) |
b (Surface height difference) |
|
A - A |
0.6 - 2.2 mm (0.024 - 0.087 in) |
(-2.3) - (+0.7) mm [(-0.091) -(+0.028) in] |
|
B - B |
0.6 - 2.2 mm (0.024 - 0.087 in) |
(-1.9) - (+1.1) mm [(-0.075) - (+0.043) in] |
|
C - C |
0.6 - 2.2 mm (0.024 - 0.087 in) |
(-1.5) - (+1.5) mm [(-0.059) - (+0.059) in] |
- Remove side trims (LH/RH).
- Loosen glass lid mounting TORX bolts.
- Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.
- To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then tighten the TORX bolts of rear right.
- Tilt glass lid up and down several times to check that it moves smoothly.
NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to Description .
