Component Inspection

CHECK CLIMATE CONTROLLED SEAT RELAY

Turn ignition switch OFF.
Remove climate controlled seat relay.

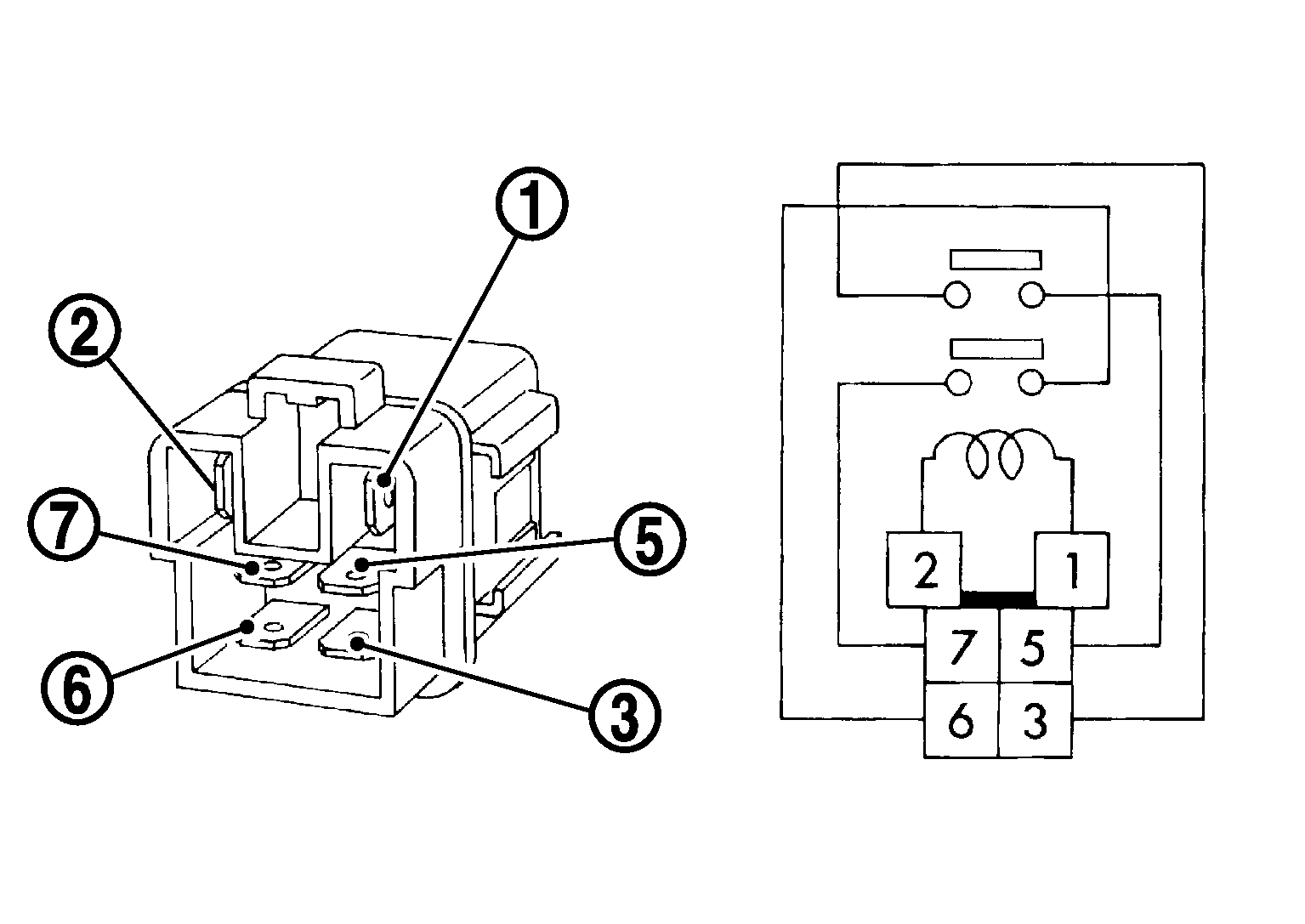

Check continuity between climate controlled seat relay terminals under the following conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal		Condition	Continuity
3	5	12 V direct current supply between terminals 1 and 2.	Existed
		No current supply	Not existed
6	7	12 V direct current supply between terminals 1 and 2.	Existed
		No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

Replace climate controlled seat relay.
