Exploded View

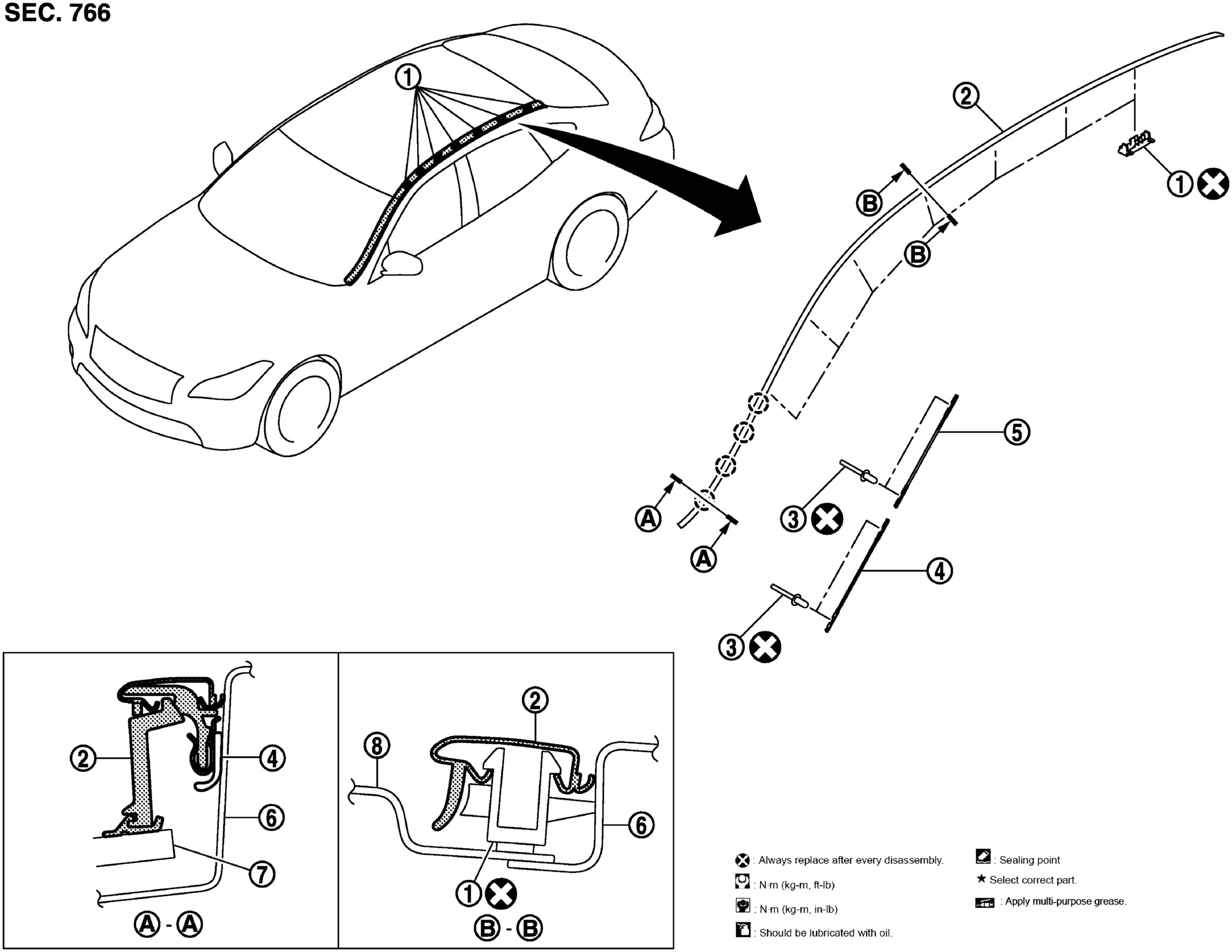

Except for long wheel base type
|
1. |
Roof side molding clip |
2. |
Roof side molding |
3. |
Rivet |
|
4. |
Molding fastener (lower) |
5. |
Molding fastener (upper) |
6. |
Body side panel |
|
7. |
Front glass |
8. |
Roof panel |
||
|
|
: Clip |
||||
|
|
: Always replace after every disassembly. |
||||

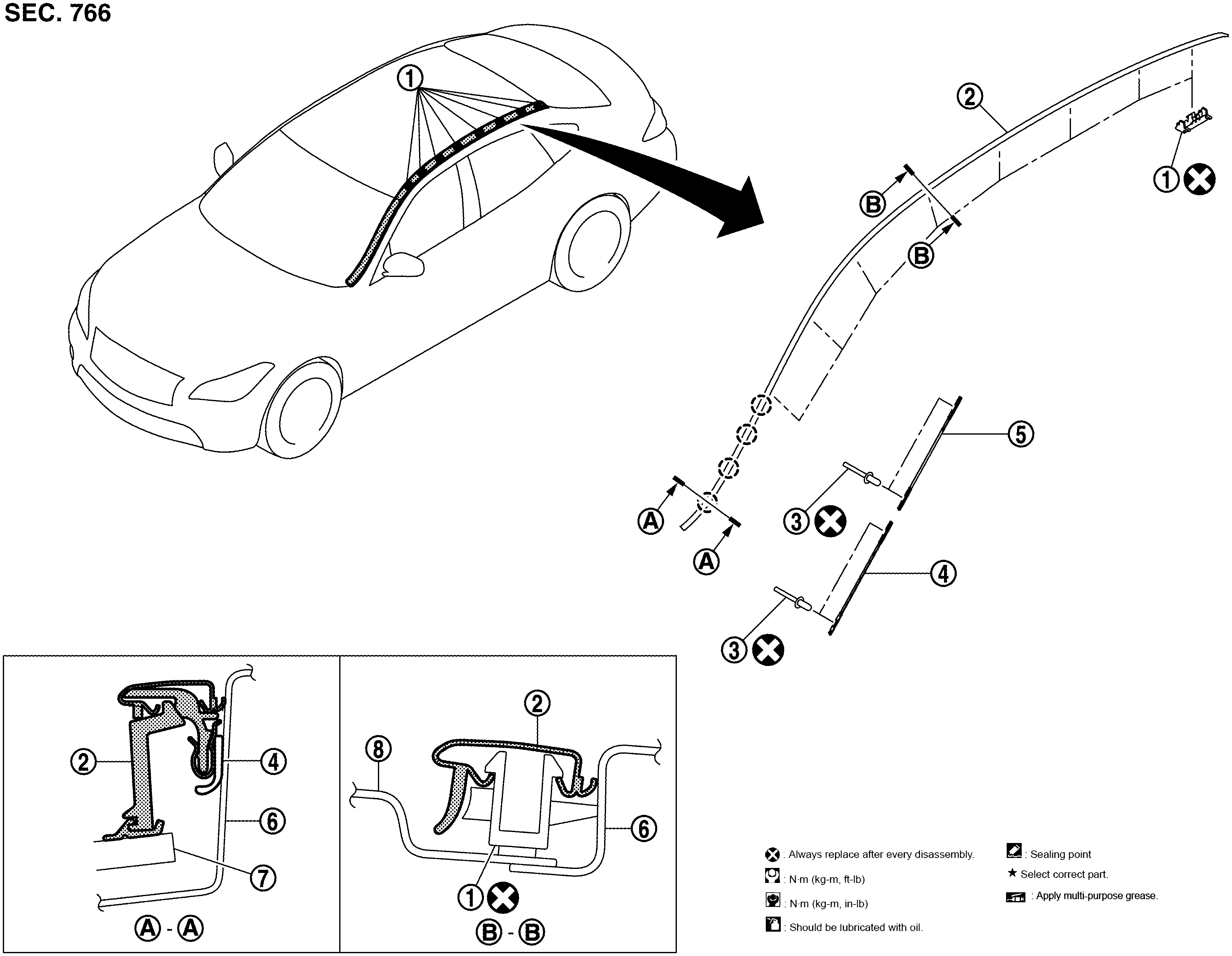

For long wheel base type
|
1. |
Roof side molding clip |
2. |
Roof side molding |
3. |
Rivet |
|
4. |
Molding fastener (lower) |
5. |
Molding fastener (upper) |
6. |
Body side panel |
|
7. |
Front glass |
8. |
Roof panel |
||
|
|
: Clip |
||||
|
|
: Always replace after every disassembly. |
||||
