Exploded View

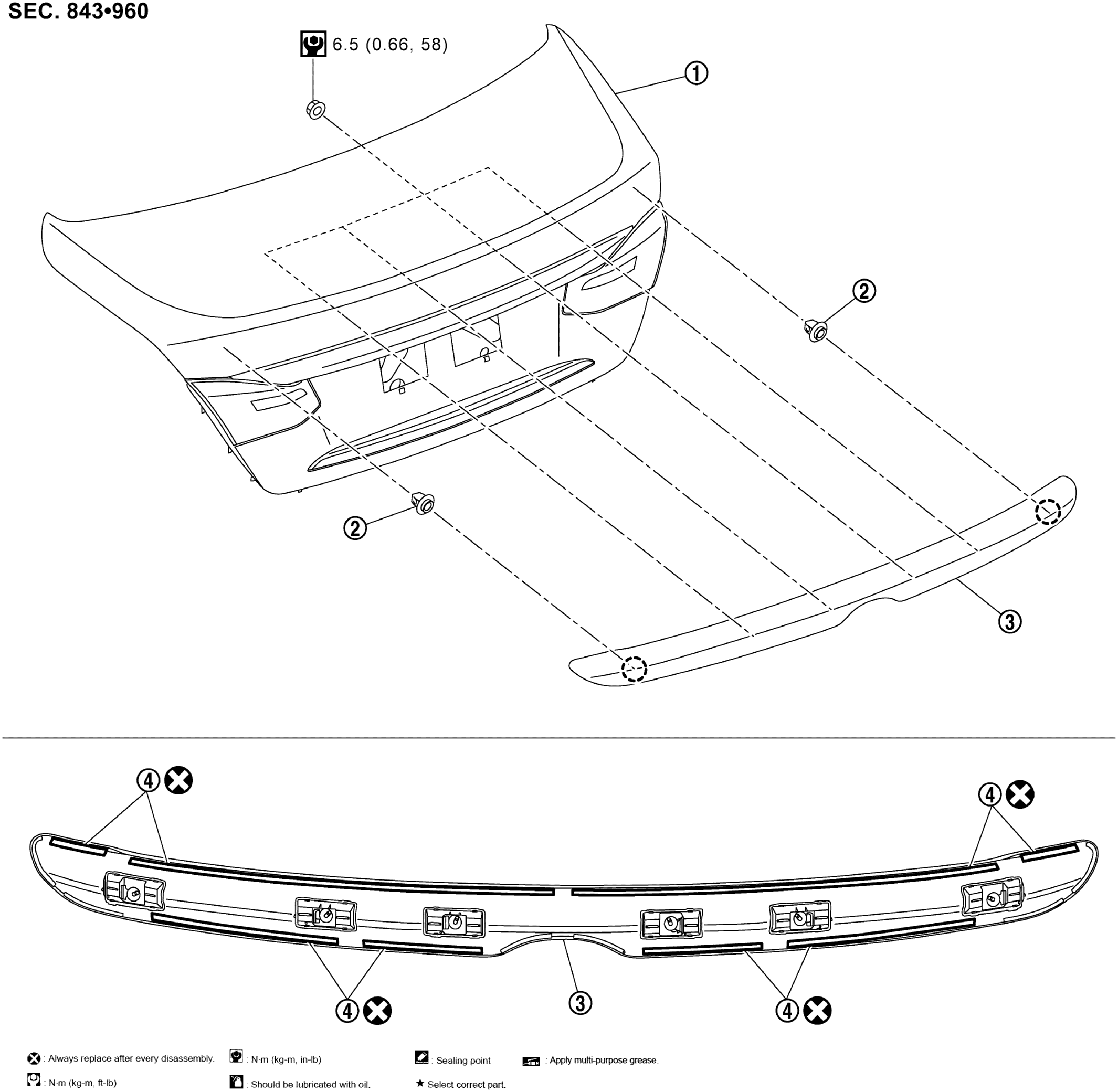

GNSJMKIB8112GB-112Courtesy of NISSAN NORTH AMERICA, INC.

1.

Trunk lid panel

2.

Grommet

3.

Rear spoiler

4.

Double-sided tape

[t: 1.2 mm (0.047 in)]

SYMBOL

: Clip

Refer to Components for symbols in the figure.
