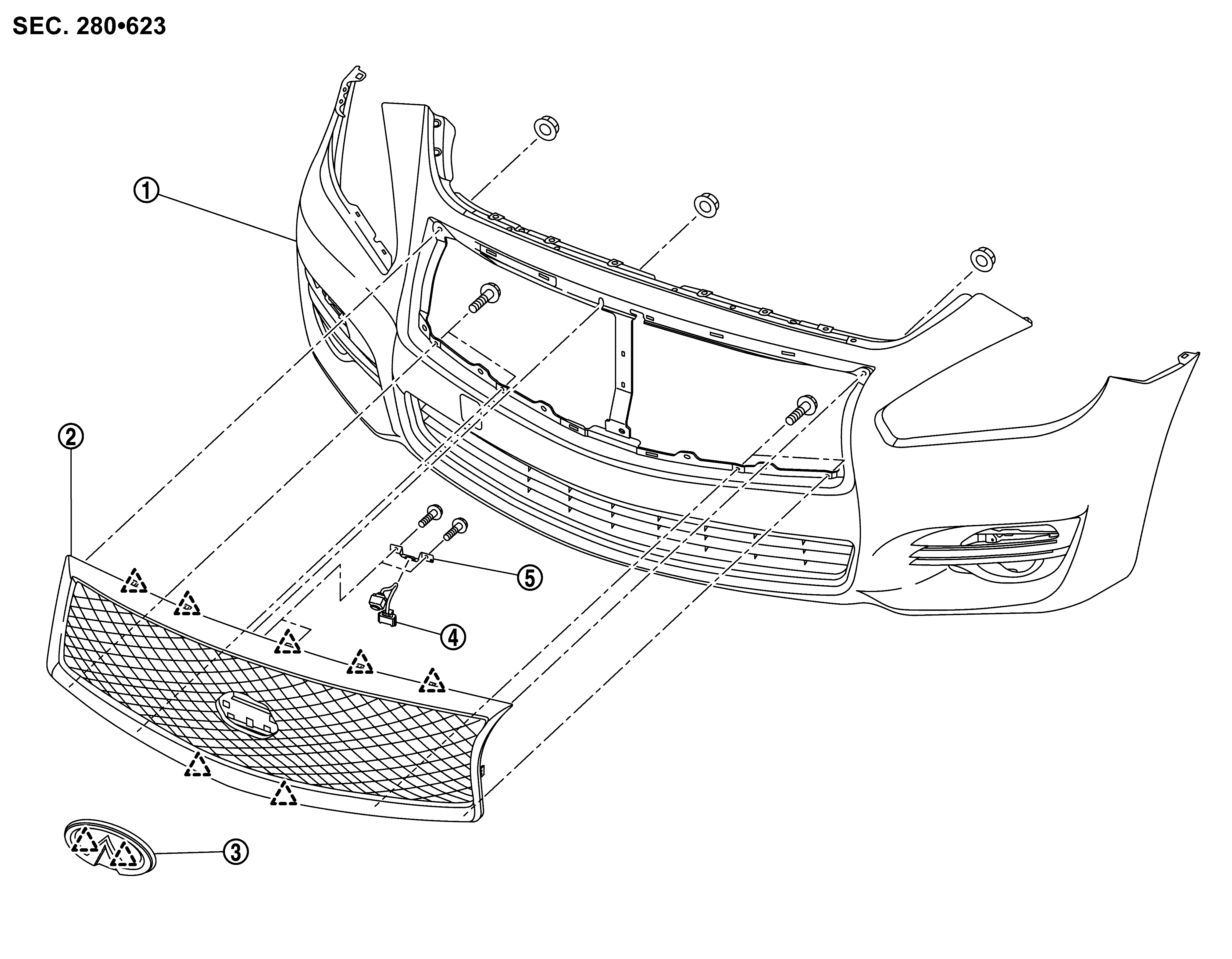

Exploded View

GNSJMKIB4358Z-358Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bumper fascia

2.

Front grille

3.

Front emblem

4.

Front camera (if equipped)

5.

Front camera bracket (if equipped)

SYMBOL

: Pawl
