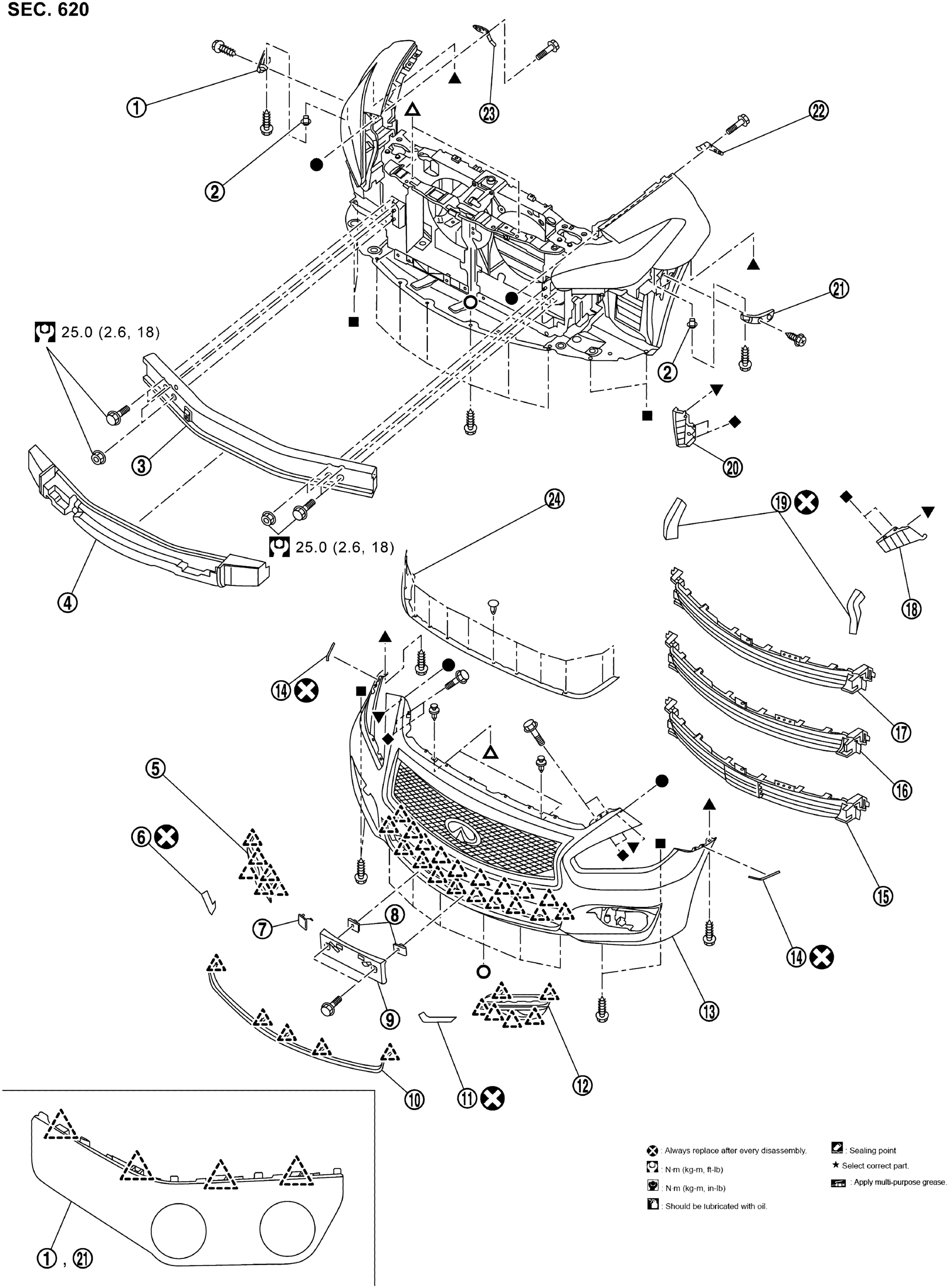

Exploded View

1.

Bumper side bracket RH

2.

Grommet

3.

Bumper reinforcement

4.

Bumper energy absorber

5.

Bumper finisher RH

6.

Bumper protector RH

7.

Bumper bracket cover

8.

Spring nut

9.

License plate bracket

10.

Bumper molding

11.

Bumper protector LH

12.

Bumper finisher LH

13.

Bumper fascia

14.

Bumper side spacer

15.

Bumper grille ^*

16.

Bumper grille (with ICC)

17.

Bumper grille (without ICC)

18.

Bumper side stiffener LH

19.

Bumper spacer

20.

Bumper side stiffener RH

21.

Bumper side bracket LH

22.

Bumper bracket LH

23.

Bumper bracket RH

24.

Hood seal

: Pawl

: N.m (kg-m, ft-lb)

: Always replace after every disassembly.

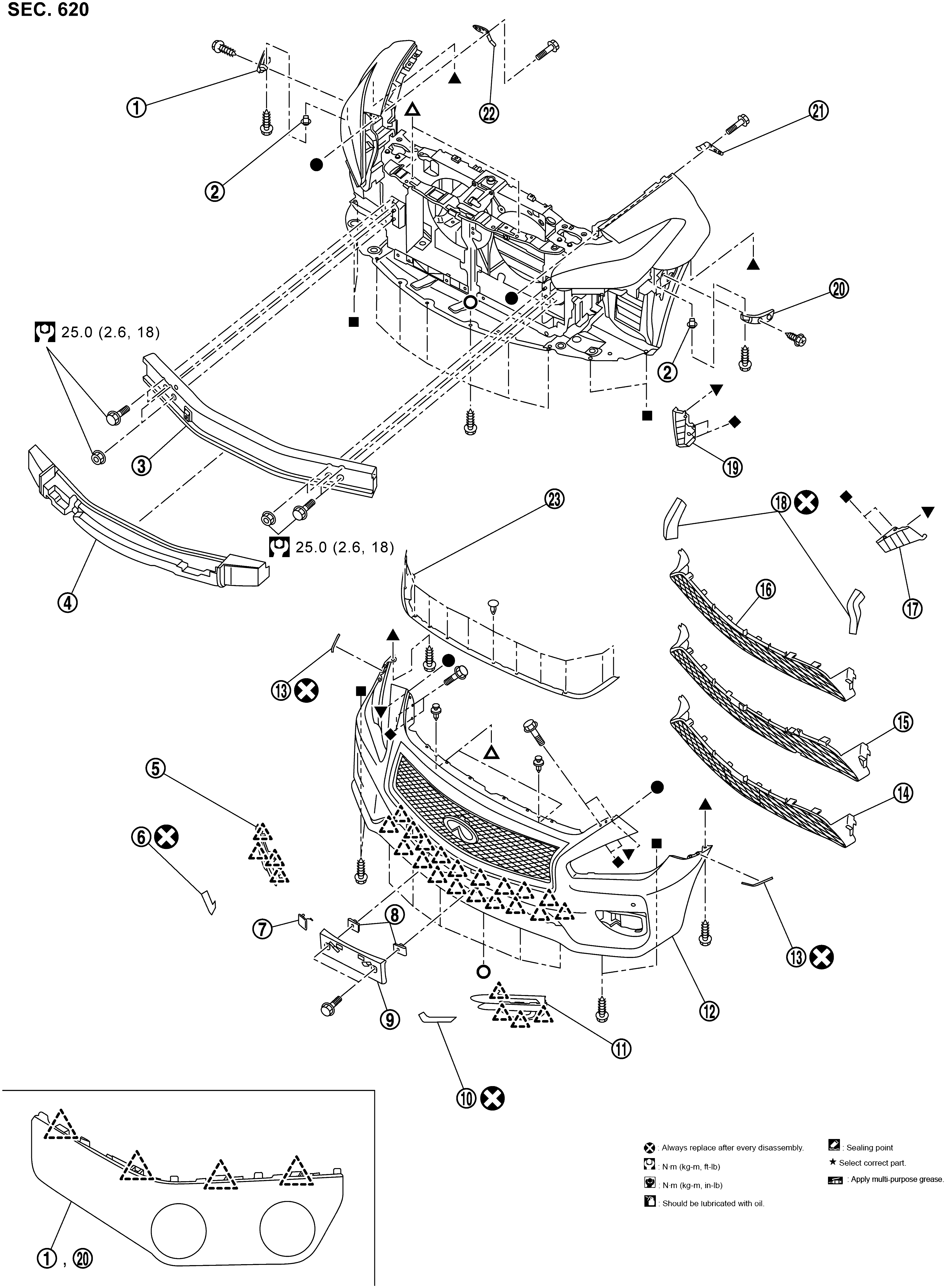

, , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.

1.

Bumper side bracket RH

2.

Grommet

3.

Bumper reinforcement

4.

Bumper energy absorber

5.

Bumper finisher RH

6.

Bumper protector RH

7.

Bumper bracket cover

8.

Spring nut

9.

License plate bracket

10.

Bumper protector LH

11.

Bumper finisher LH

12.

Bumper fascia

13.

Bumper side spacer

14.

Bumper grille (with ICC Diesel)

15.

Bumper grille (with ICC Gas)

16.

Bumper grille (without ICC)

17.

Bumper side stiffener LH

18.

Bumper spacer

19.

Bumper side stiffener RH

20.

Bumper side bracket LH

21.

Bumper bracket LH

22.

Bumper bracket RH

23.

Hood seal

: Pawl

: N.m (kg-m, ft-lb)

: Always replace after every disassembly.

, , , , , , : Indicates that the part is connected at points with same symbol in actual vehicle.
