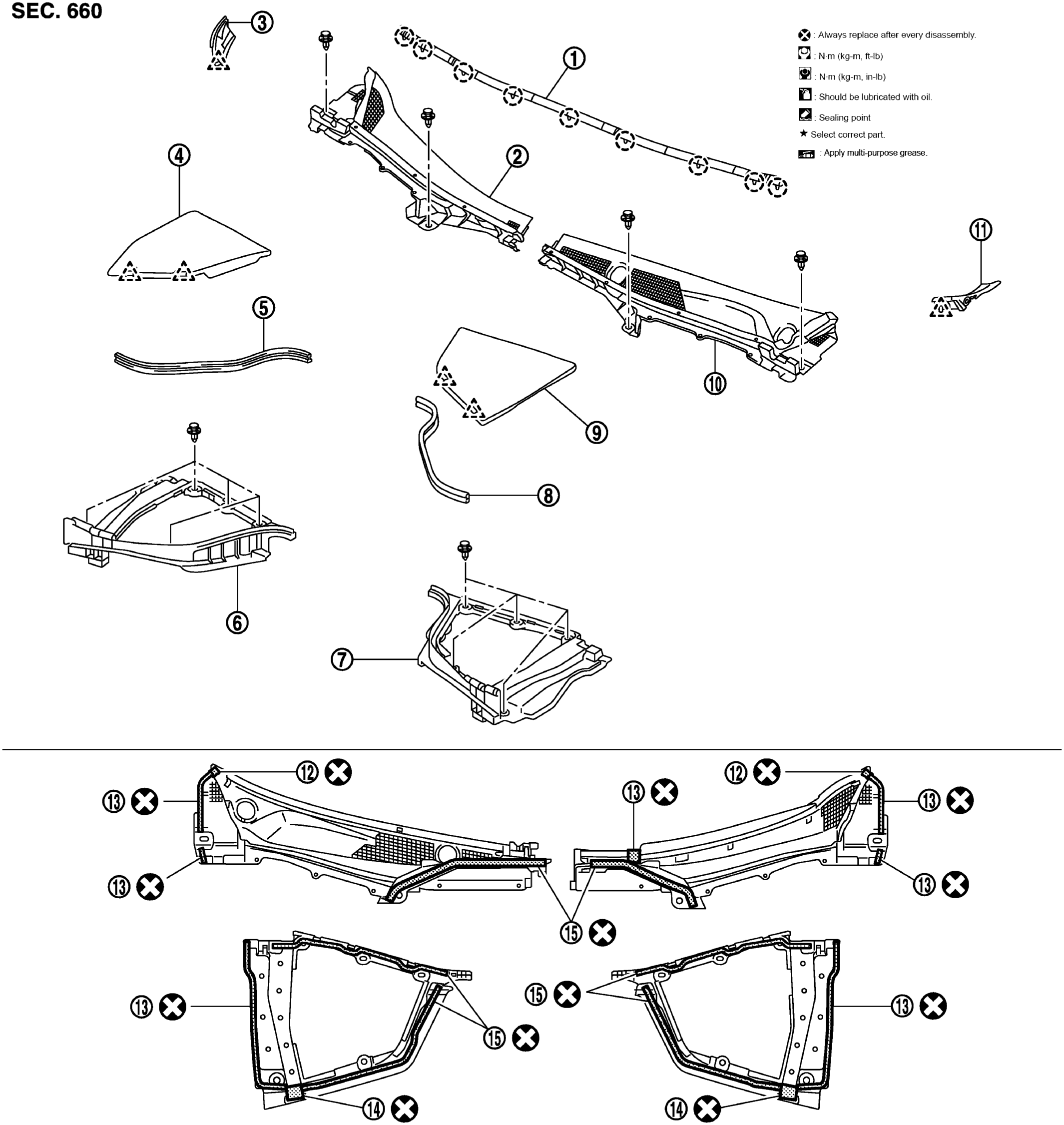

Exploded View
|
1. |
Cowl top seal |
2. |
Cowl top cover |
3. |
Front fender cover RH |
|
4. |
Battery cover |
5. |
Cowl top cover seal RH |
6. |
Hoodledge cover RH |
|
7. |
Hoodledge cover LH |
8. |
Cowl top cover seal LH |
9. |
Brake master cylinder cover |
|
10. |
Cowl top cover LH |
11. |
Front fender cover LH |
12. |
EPT sealer [t: 10.0 mm (0.394 in)] |
|
13. |
EPT sealer [t: 5.0 mm (0.197 in)] |
14. |
EPT sealer [t: 15.0 mm (0.591 in)] |
15. |
EPT sealer [t: 3.0 mm (0.118 in)] |
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Always replace after every disassembly. |
||||
