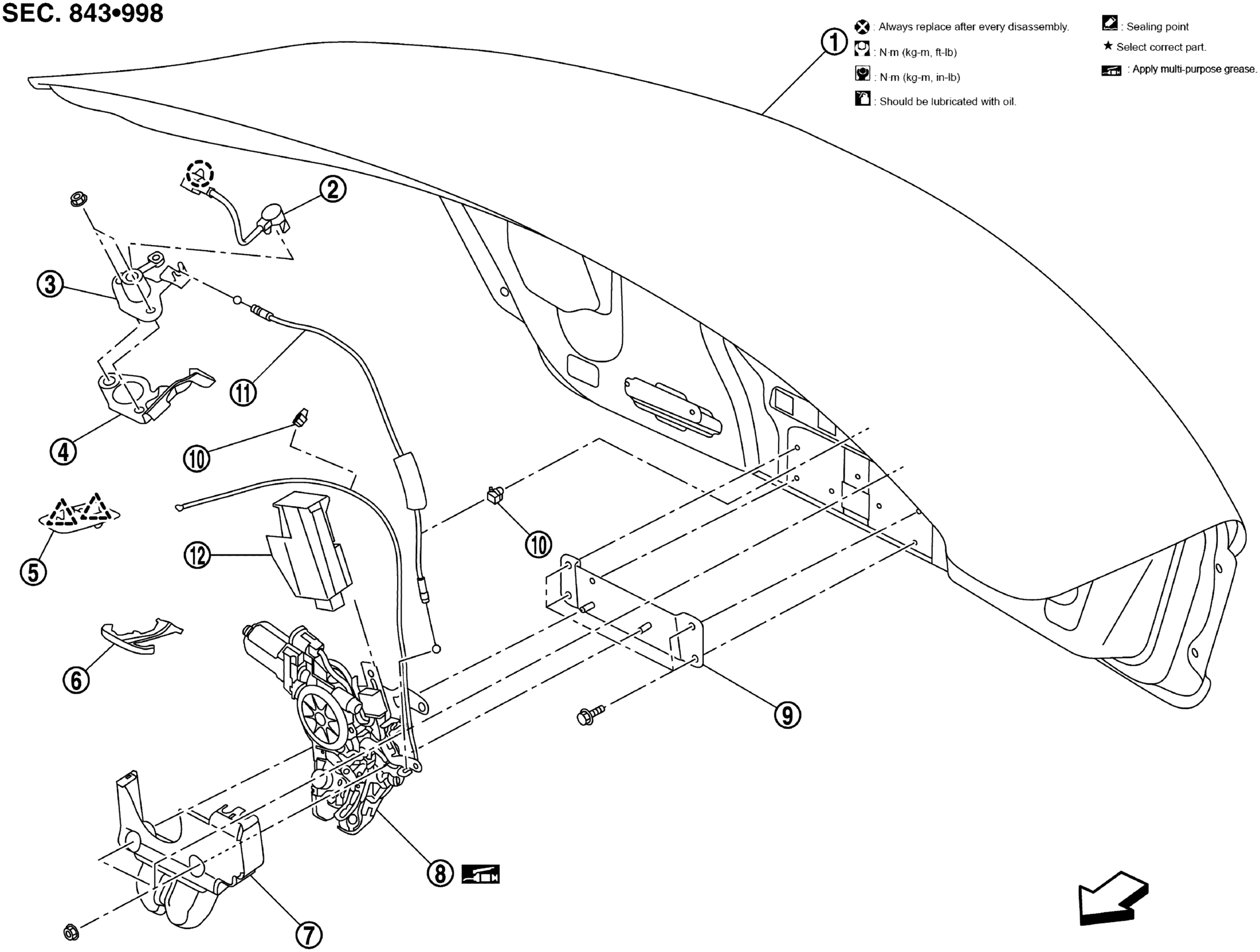

Exploded View
|
1. |
Trunk lid |
2. |
Trunk lid cylinder switch |
3. |
Trunk lid cylinder assembly |
|
4. |
Trunk lid outer protector |
5. |
Emergency holder |
6. |
Emergency inside handle |
|
7. |
Trunk lid lock cover |
8. |
Trunk closure assembly |
9. |
Trunk opener bracket assembly |
|
10. |
Cable clip |
11. |
Trunk lid cable |
12. |
Trunk lid closure control unit |
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Vehicle front |
||||
|
|
: Body grease |
||||
