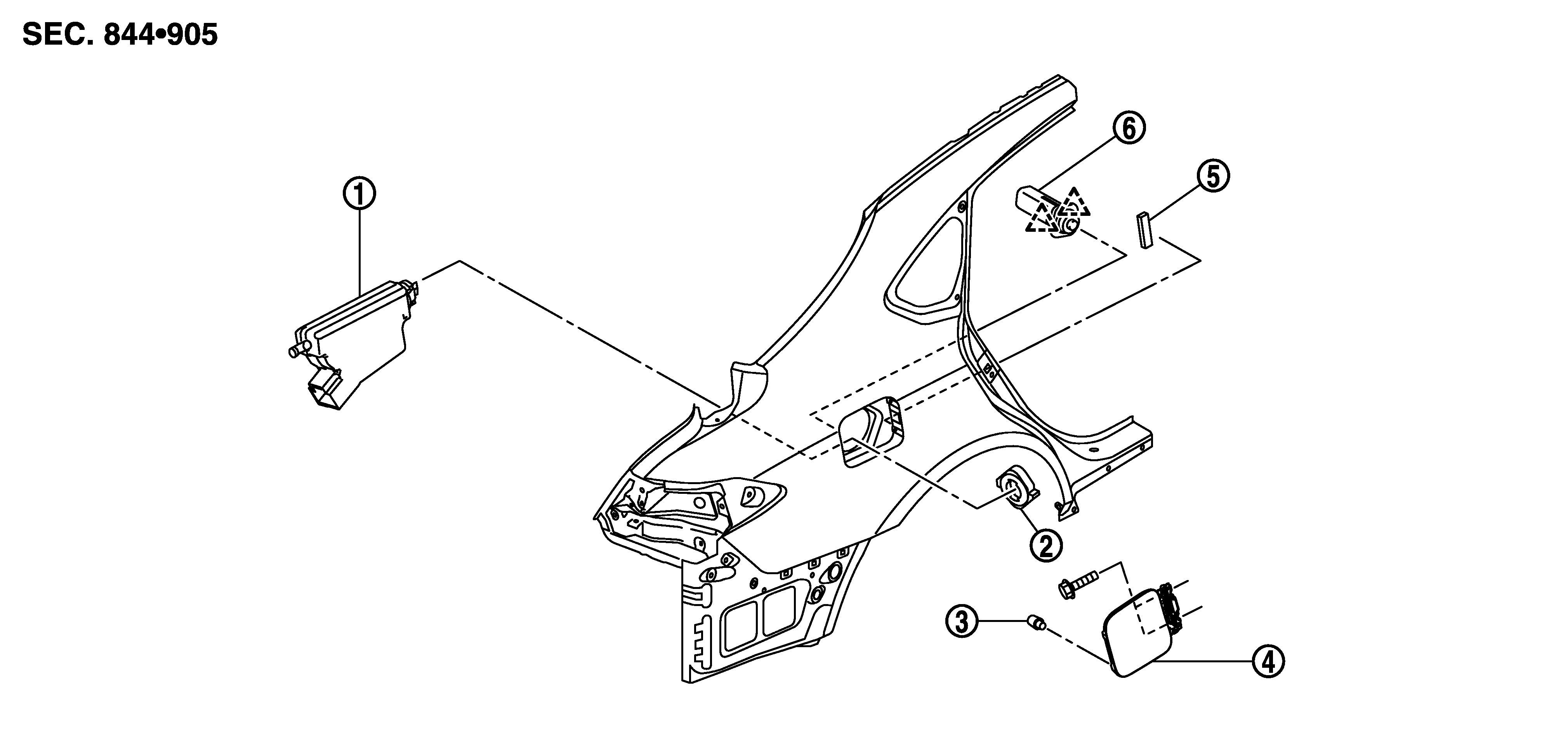

Exploded View

GNSJMKIA5039Z-039Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filler lid opener actuator

2.

Lock nut

3.

Bumper rubber

4.

Fuel filler lid assembly

5.

Bumper rubber

6.

Lock and rod assembly

SYMBOL

: Pawl
