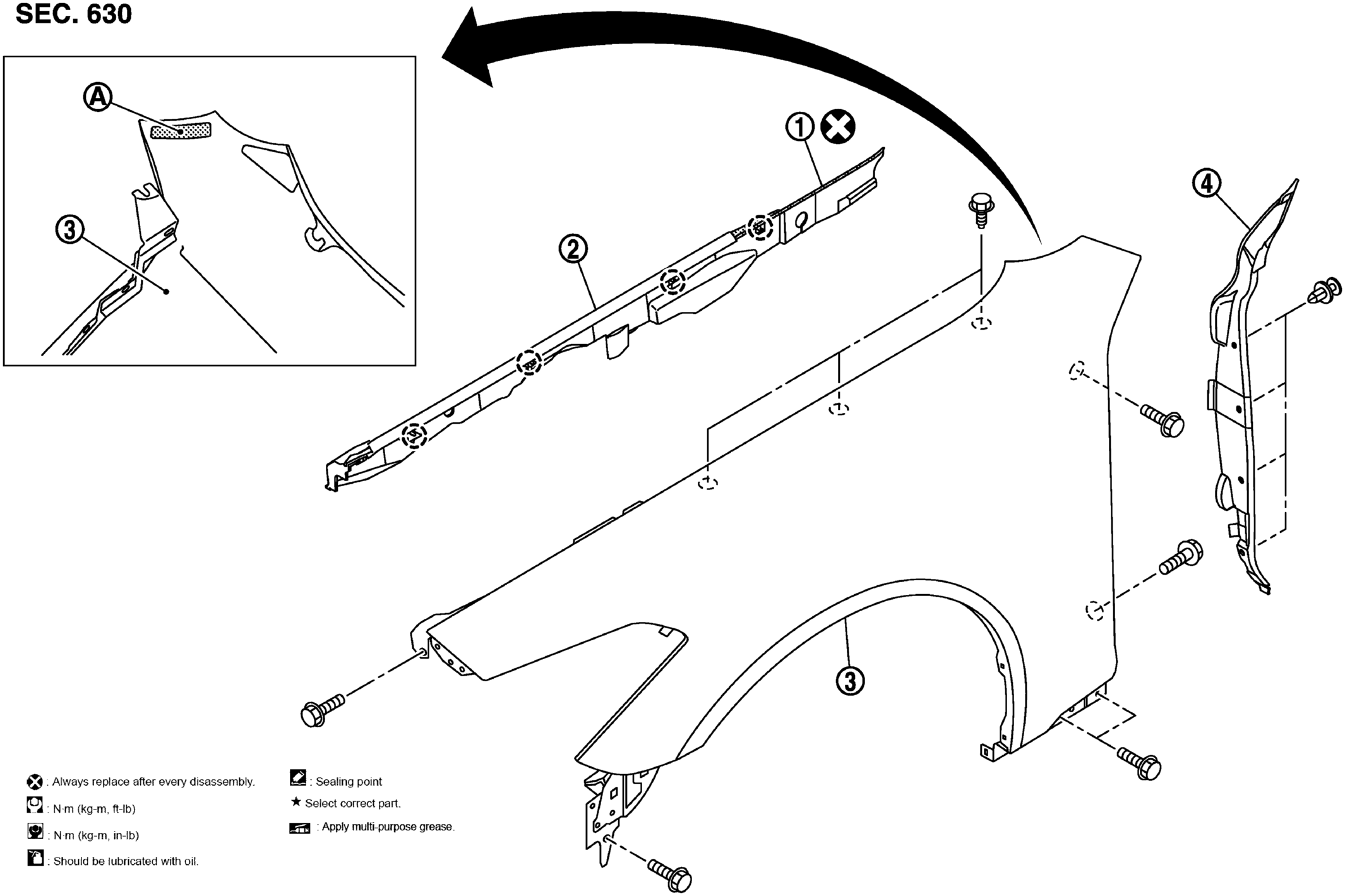

Exploded View
|
1. |
Double-faced adhesive tape 2.0 mm (0.079 in) |
2. |
Hood seal assembly (side) |
3. |
Front fender assembly |
|
4. |
Front fender baffle |
||||
|
|
: Clip |
||||
|
|
: Always replace after every disassembly |
||||
CAUTION:
A viscous urethane foam (A) is installed on the back surface of front fender. When removing the front fender, peel of the urethane foam bit at a time, and carefully to remove it.
