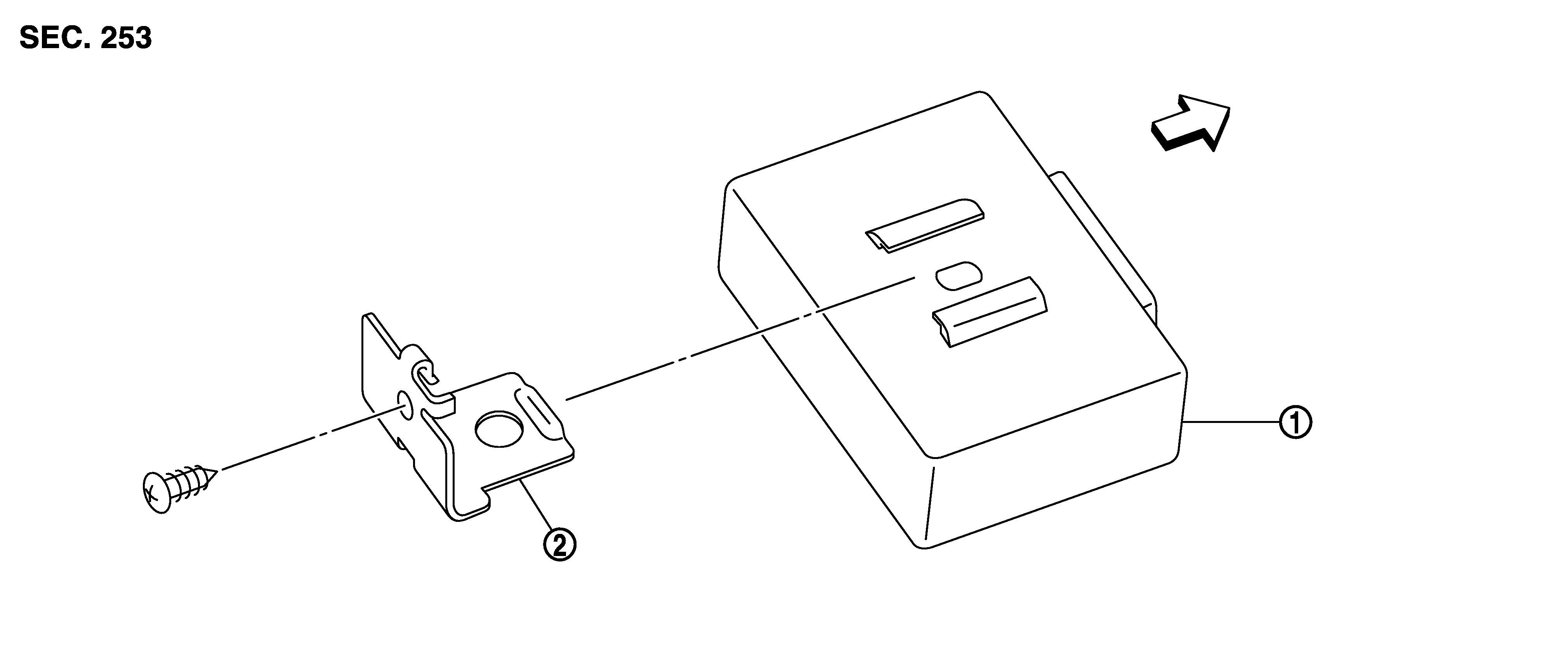

Exploded View

GNSJPEIC0078Z-078Courtesy of NISSAN NORTH AMERICA, INC.

1.

Low Tire Pressure Warning Control Unit

2.

Bracket

SYMBOL : Vehicle front

Refer to Components for symbols in the figure.
