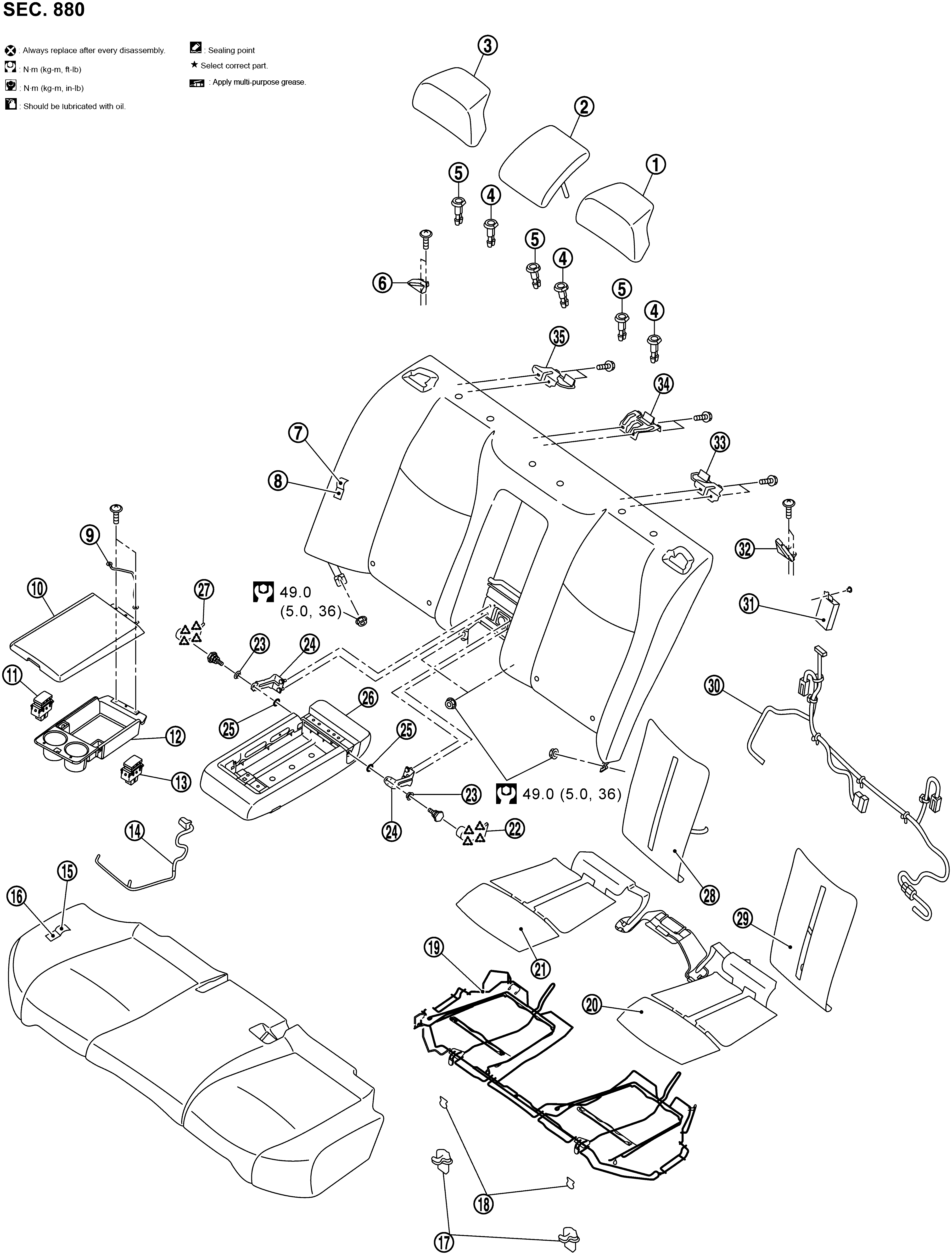

Exploded View
|
1. |
Headrest LH |
2. |
Center headrest |
3. |
Headrest RH |
|
4. |
Headrest holder (locked) |
5. |
Headrest holder (free) |
6. |
Seat belt hook RH |
|
7. |
Seatback trim |
8. |
Seatback pad |
9. |
Earth wire |
|
10. |
Center armrest lid |
11. |
Seat heater switch |
12. |
Center armrest try and tray |
|
13. |
Seat heater switch |
14. |
Harness |
15. |
Seat cushion trim |
|
16. |
Seat cushion pad |
17. |
Seat cushion hook |
18. |
Seat cushion hook |
|
19. |
Seat cushion FRM assembly |
20. |
Seat cushion heater assembly LH |
21. |
Seat cushion heater assembly RH |
|
22. |
Center armrest hinge escutcheon LH |
23. |
Center armrest bush |
24. |
Center armrest hinge |
|
25. |
Center armrest washer |
26. |
Center armrest assembly |
27. |
Center armrest hinge escutcheon RH |
|
28. |
Seatback heater assembly RH |
29. |
Seatback heater assembly LH |
30. |
Harness |
|
31. |
Seat heater control |
32. |
Seat belt hook LH |
33. |
Seatback bracket LH |
|
34. |
Center seatback bracket |
35. |
Seatback bracket RH |
||
|
|
|||||
|
|
: N.m (kg-m, ft-lb) |
||||
