Disassembly and Assembly: Armrest

DISASSEMBLY

  1. Remove mounting screws. Remove center armrest lid.

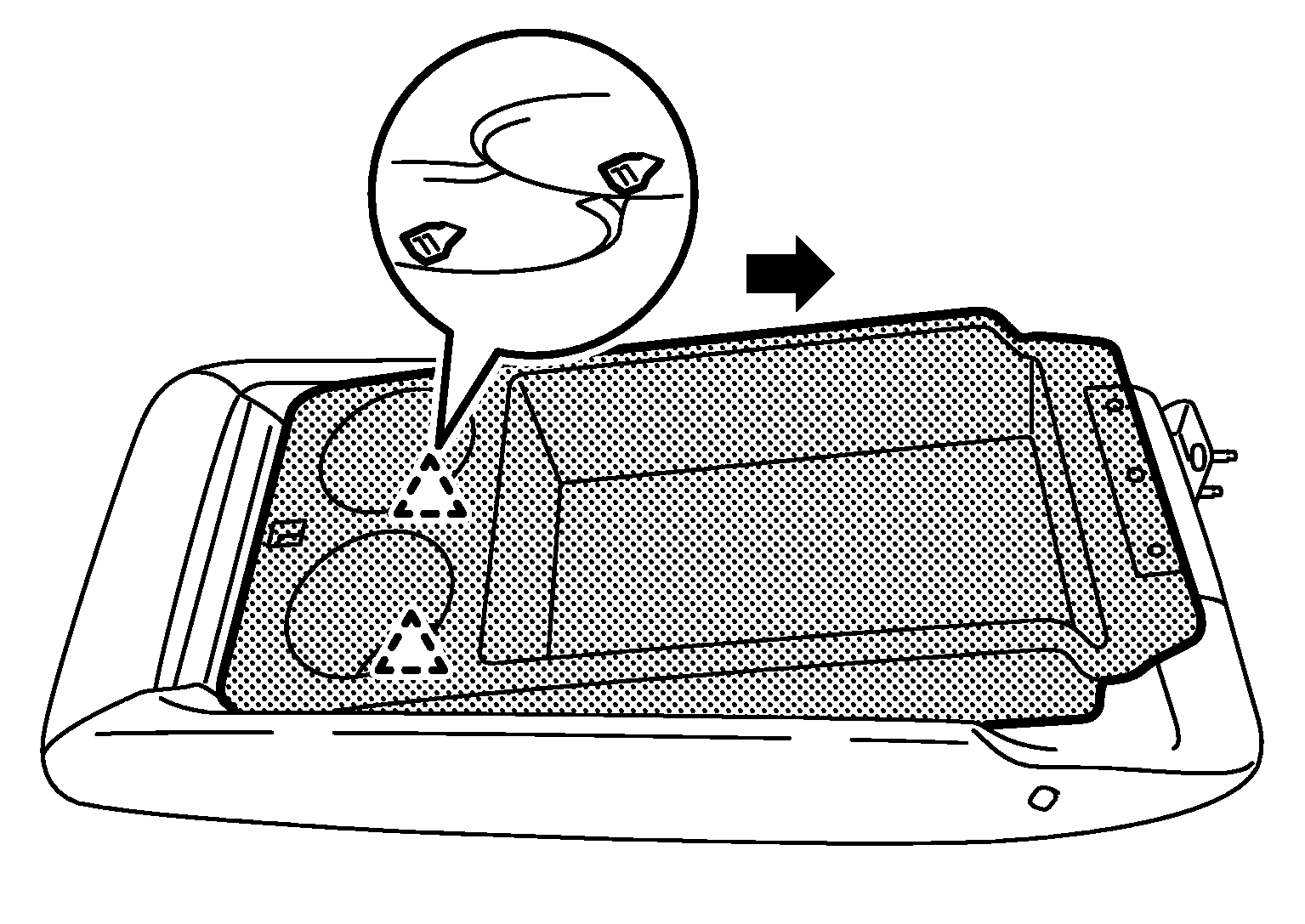

  2. Slide center armrest tray & box. Disengage pawls. Remove center armrest tray & box.
    GNSJMJIA3706Z-706Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  3. Remove center armrest hinge escutcheon.
  4. Remove mounting bolts. Remove center armrest hinge.

ASSEMBLY

Assemble in the reverse order of disassembly.
