Removal and Installation: Removal
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
- Remove the headrest.
- Remove the front leg cover.

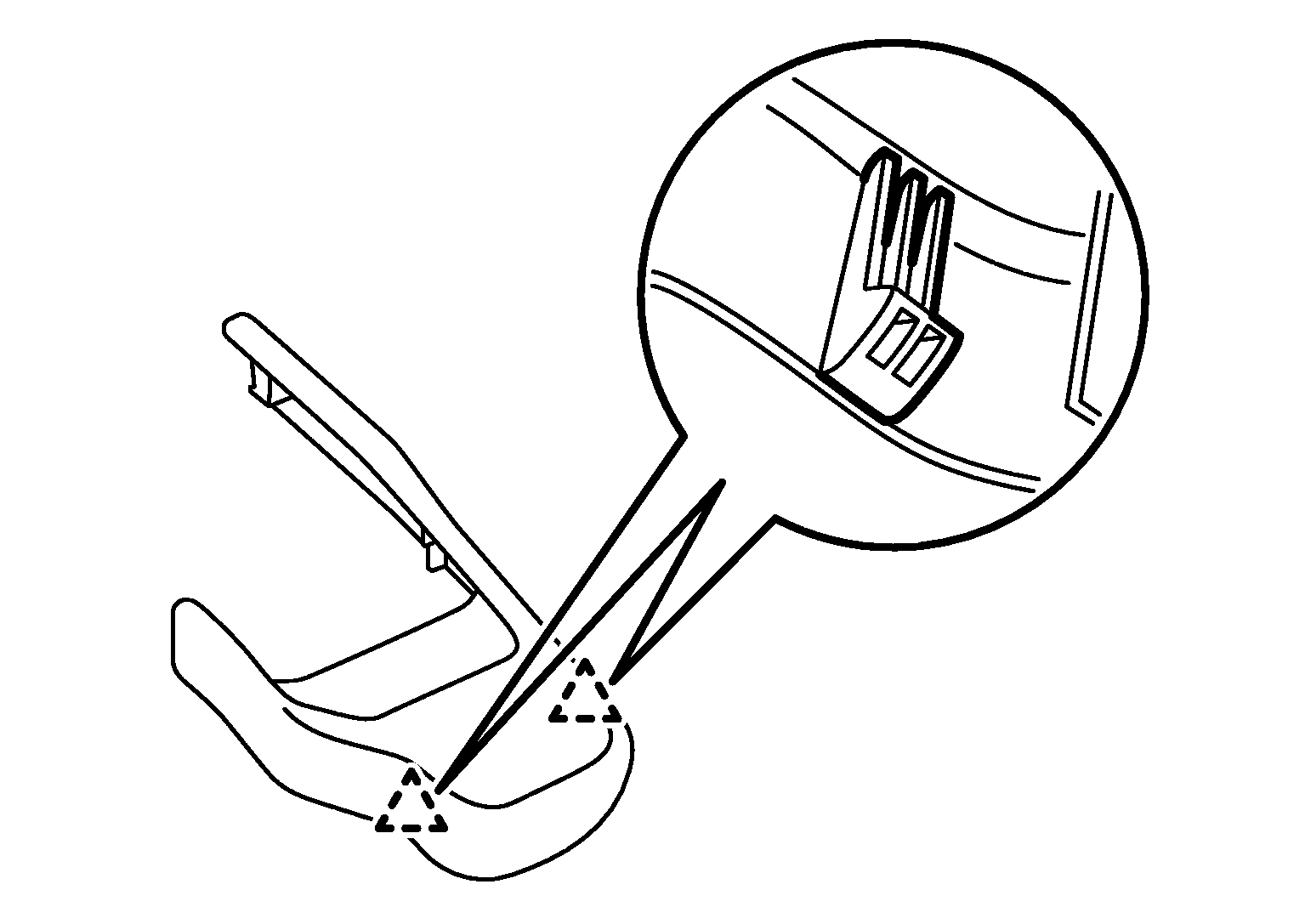

- Front outer leg cover
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Slide the seat to the rearmost position.
- Pull front leg cover outer front clips upward to disengage.
- Slide front leg cover outer foreword to remove.
|
|
: Pawl
|

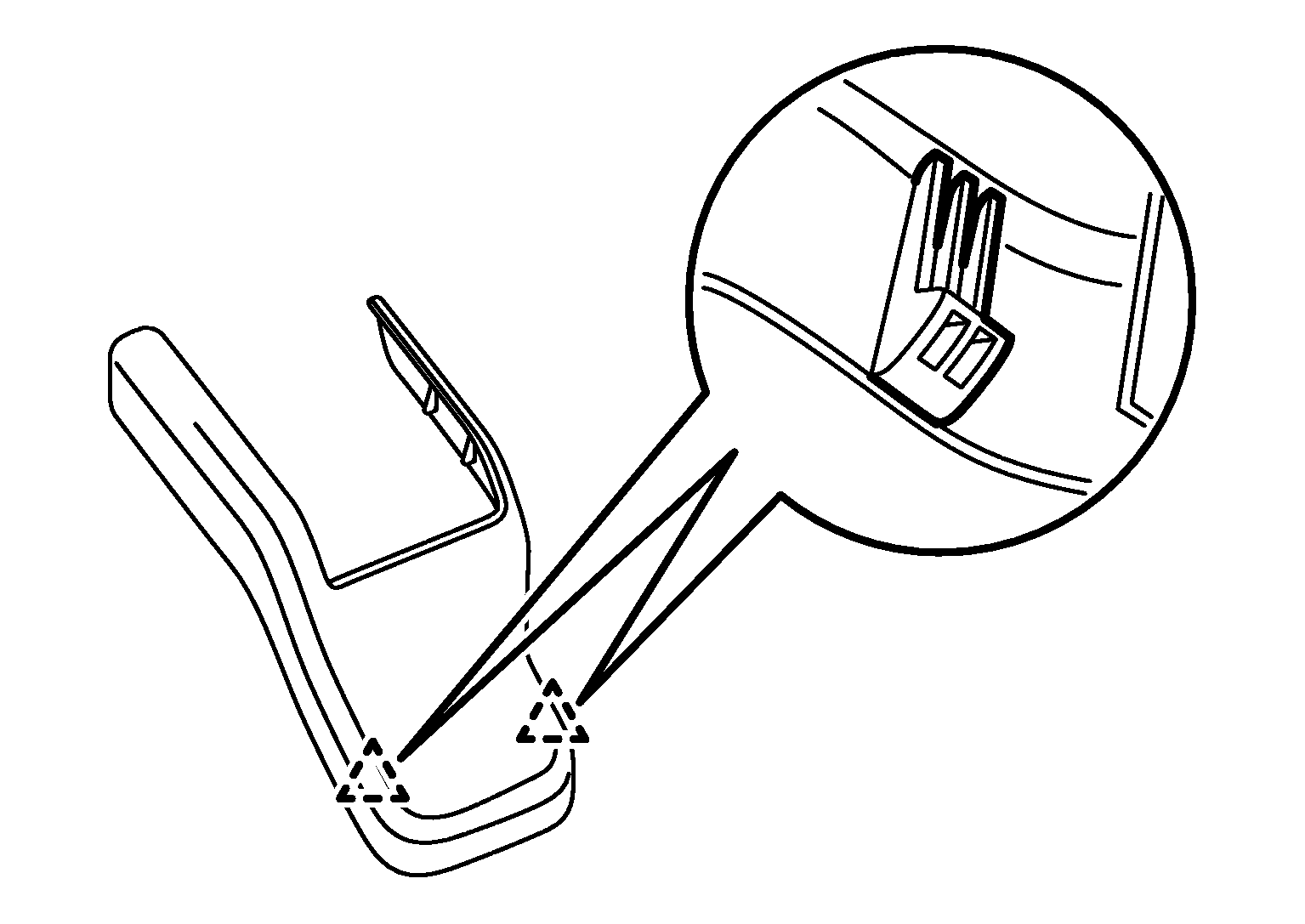

- Front inner leg cover
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Slide seat to the rearmost position.
- Pull front leg cover inner front pawls upward to disengage.
- Slide front leg cover foreword to remove.
|
|
: Pawl
|
- Remove mounting bolts from the front of front seat.
- Remove rear leg covers.

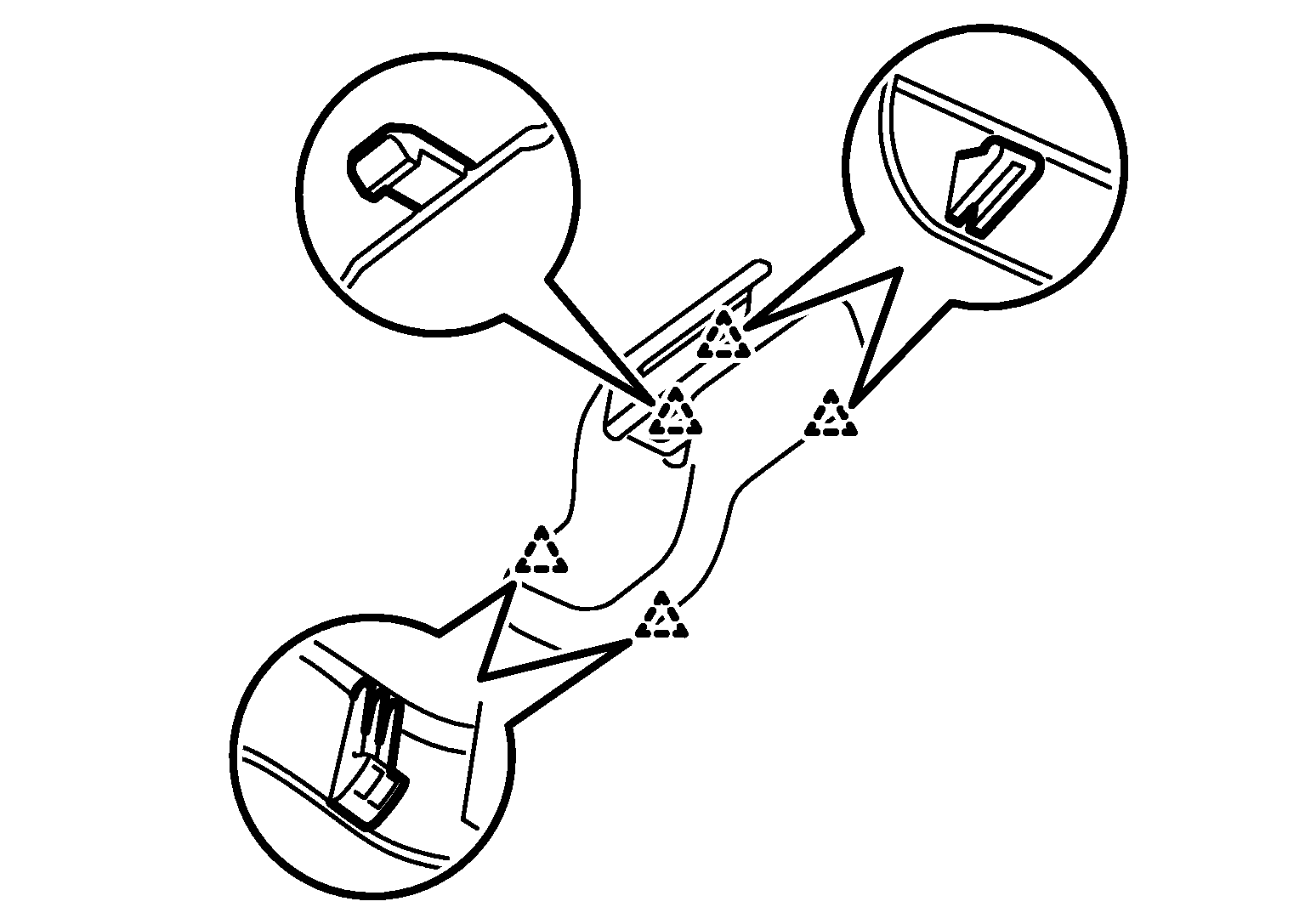

- Rear outer leg cover
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Slide seat to the front most position.
- Pull rear leg cover outer rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.
|
|
: Pawl
|
- Rear inner leg cover
Courtesy of NISSAN NORTH AMERICA, INC.
|
- Slide the seat to the front most position.
- Pull rear leg cover inner rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.
|
|
: Pawl
|
- Remove mounting bolts from the front seat rear side.
- Set the seatback vertically.
- Remove seat cushion lower harness connector and harness clamp.
CAUTION:
Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at lest 3 minutes.
- Remove the front seat from the vehicle.
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
