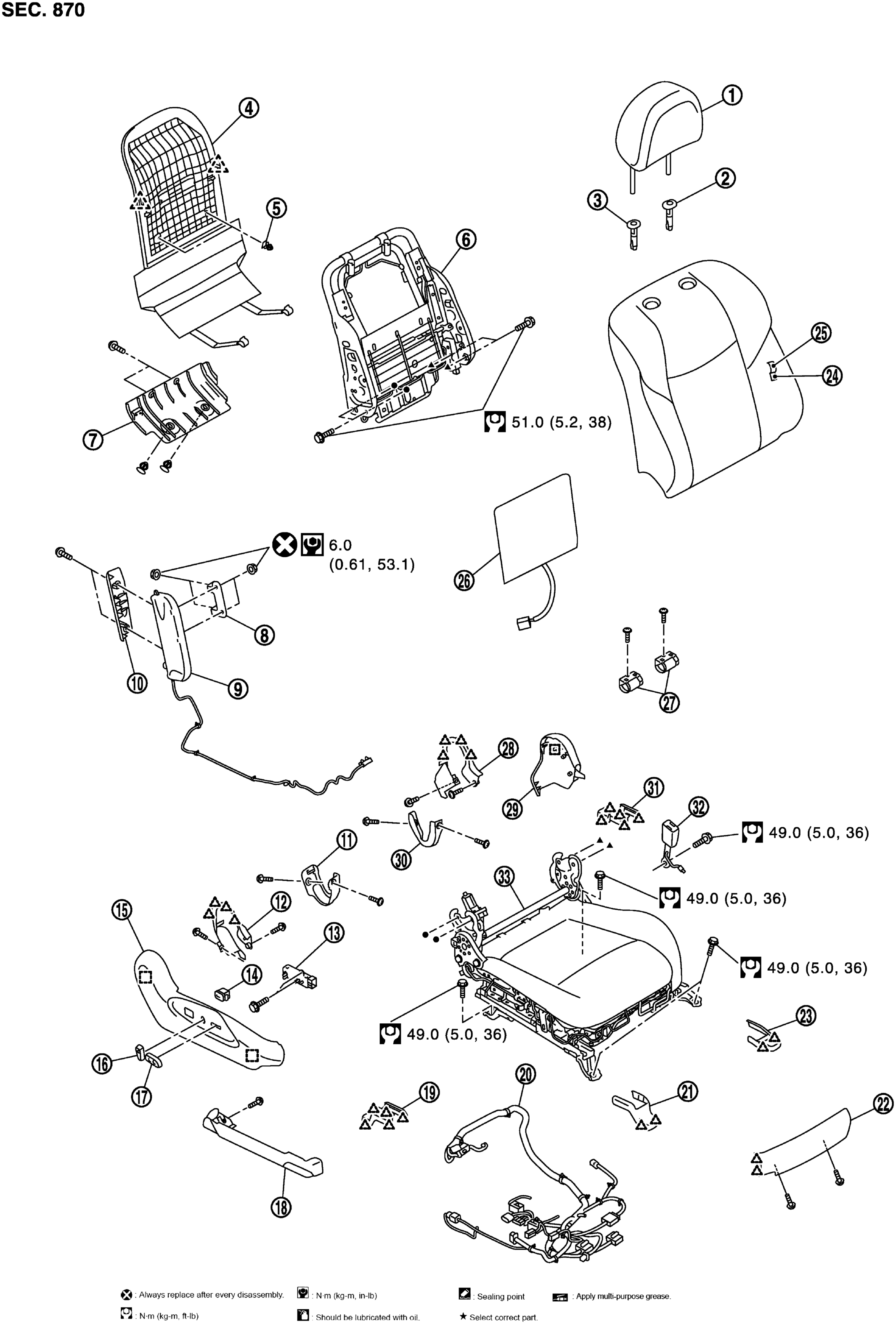

Passenger Seat With Seat Heater
|
1. |
Headrest |
2. |
Headrest holder (locked) |
3. |
Headrest holder (free) |
|
4. |
Seatback board |
5. |
Seatback board clip |
6. |
Seatback frame |
|
7. |
Seat cushion rear finisher |
8. |
Side air bag module bracket |
9. |
Side air bag module |
|
10. |
Side air bag module cover |
11. |
Seat cushion rear finisher RH |
12. |
Seat cushion inner finisher LH |
|
13. |
Seat control switch |
14. |
Lumber support switch |
15. |
Seat cushion outer finisher RH |
|
16. |
Seat reclining switch knob |
17. |
Seat slide and lifter switch knob |
18. |
Seat cushion lower outer finisher |
|
19. |
Rear leg outer cover |
20. |
Seat harness |
21. |
Front leg outer cover |
|
22. |
Seat cushion finisher (front) |
23. |
Front leg inner cover |
24. |
Seatback pad |
|
25. |
Seatback trim |
26. |
Seatback heater unit |
27. |
Seat cushion frame bracket |
|
28. |
Seat cushion inner finisher LH |
29. |
Seat cushion outer finisher RH |
30. |
Seat cushion rear finisher LH |
|
31. |
Rear leg inner cover |
32. |
Seat belt buckle |
33. |
Seat cushion assembly |
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
|||||
