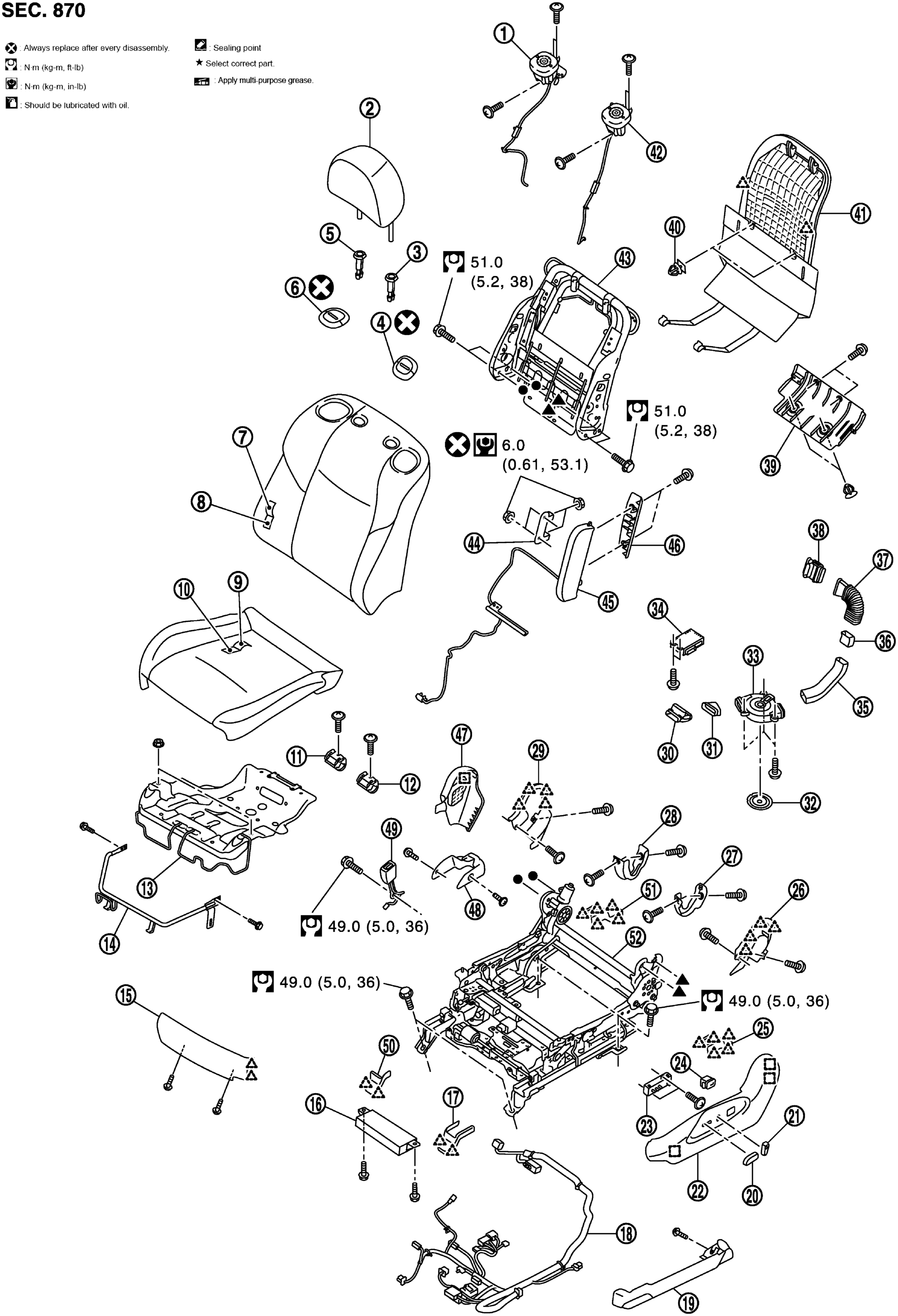

Driver Seat With Seat Speaker And Climate Controlled Seat
|
1. |
Seat speaker RH |
2. |
Headrest |
3. |
Headrest holder (locked) |
|
4. |
Seat speaker grill LH |
5. |
Headrest holder (free) |
6. |
Seat speaker grill RH |
|
7. |
Seatback trim |
8. |
Seatback pad |
9. |
Seat cushion trim |
|
10. |
Seat cushion pad |
11. |
Seat cushion frame bracket RH |
12. |
Seat cushion frame bracket LH |
|
13. |
Seat cushion frame |
14. |
Seat adjuster bar |
15. |
Seat cushion finisher (front) |
|
16. |
Seat control unit |
17. |
Front leg outer cover |
18. |
Seat harness |
|
19. |
Seat cushion lower outer finisher |
20. |
Seat slide and lifter switch knob |
21. |
Seat reclining switch knob |
|
22. |
Seat cushion outer finisher LH |
23. |
Seat control switch |
24. |
Lumber support switch |
|
25. |
Rear leg outer cover |
26. |
Seat cushion inner finisher LH |
27. |
Seat cushion rear finisher LH |
|
28. |
Seat cushion rear finisher RH |
29. |
Seat cushion inner finisher RH |
30. |
Seat cushion thermal electric unit |
|
31. |
Seat cushion duct |
32. |
Climate controlled seat blower filter |
33. |
Climate controlled seat blower motor |
|
34. |
Climate controlled seat control unit |
35. |
Seatback duct |
36. |
Seatback duct |
|
37. |
Seatback duct |
38. |
Seatback thermal electric unit |
39. |
Seat cushion rear finisher |
|
40. |
Seatback board clip |
41. |
Seatback board |
42. |
Seat speaker LH |
|
43. |
Seatback frame |
44. |
Side air bag module bracket |
45. |
Side air bag module |
|
46. |
Side air bag module cover |
47. |
Seat cushion outer finisher RH |
48. |
Seat cushion lower inner finisher |
|
49. |
Seat belt buckle |
50. |
Front leg inner cover |
51. |
Rear leg inner cover |
|
52. |
Seat adjuster assembly |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
|||||
