Disassembly and Assembly: Disassembly

  1. Remove the seatback board.

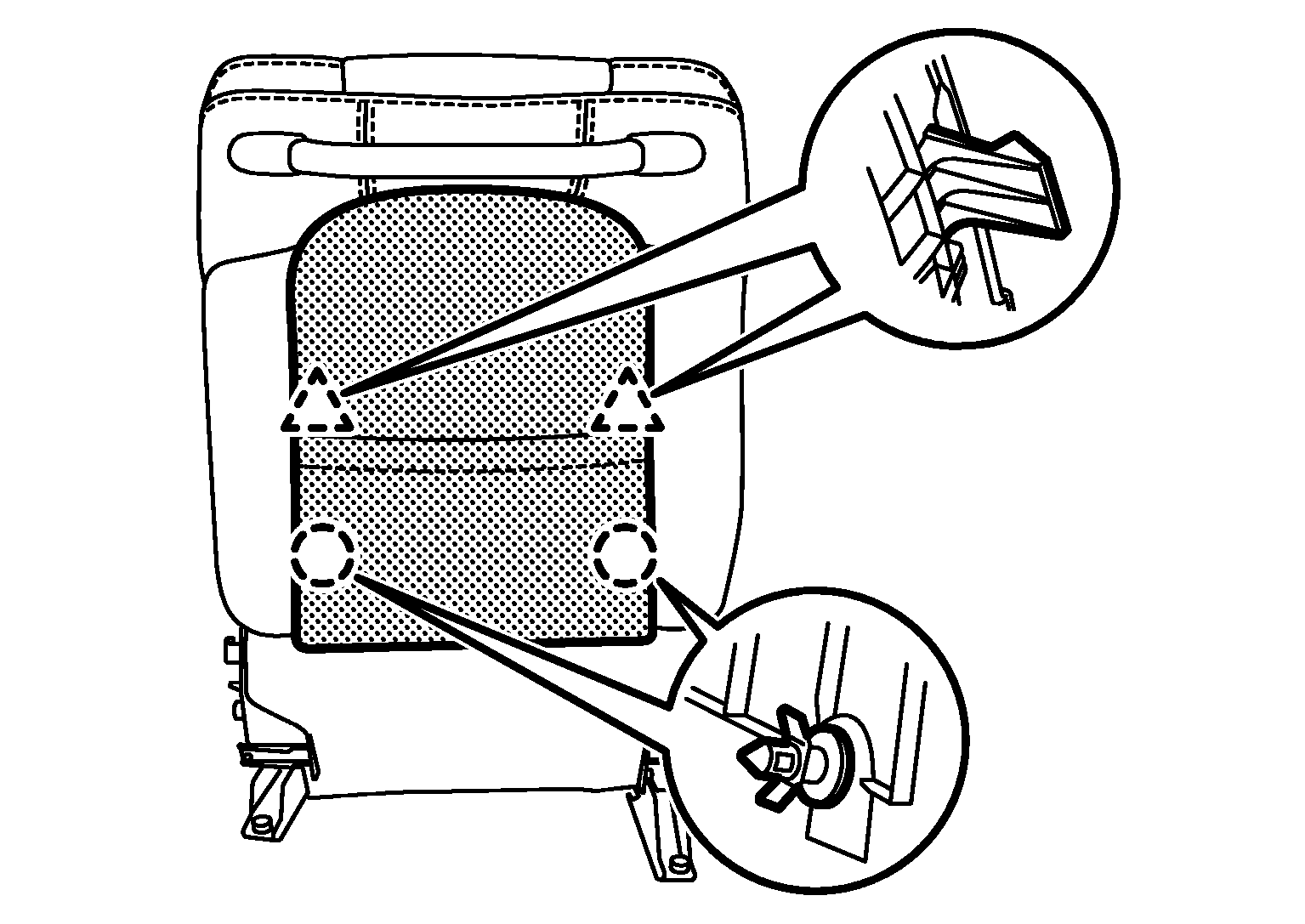

    1. Pull seatback board forward. Disengage clips of lower side, and then disengage pawls.
      GNSJMJIA3692Z-692Courtesy of NISSAN NORTH AMERICA, INC.
    2. Pull seatback board downward. Remove seatback board.

      SYMBOL

      : Clip

      SYMBOL

      : Pawl
  2. Remove seatback trim and seatback pad.

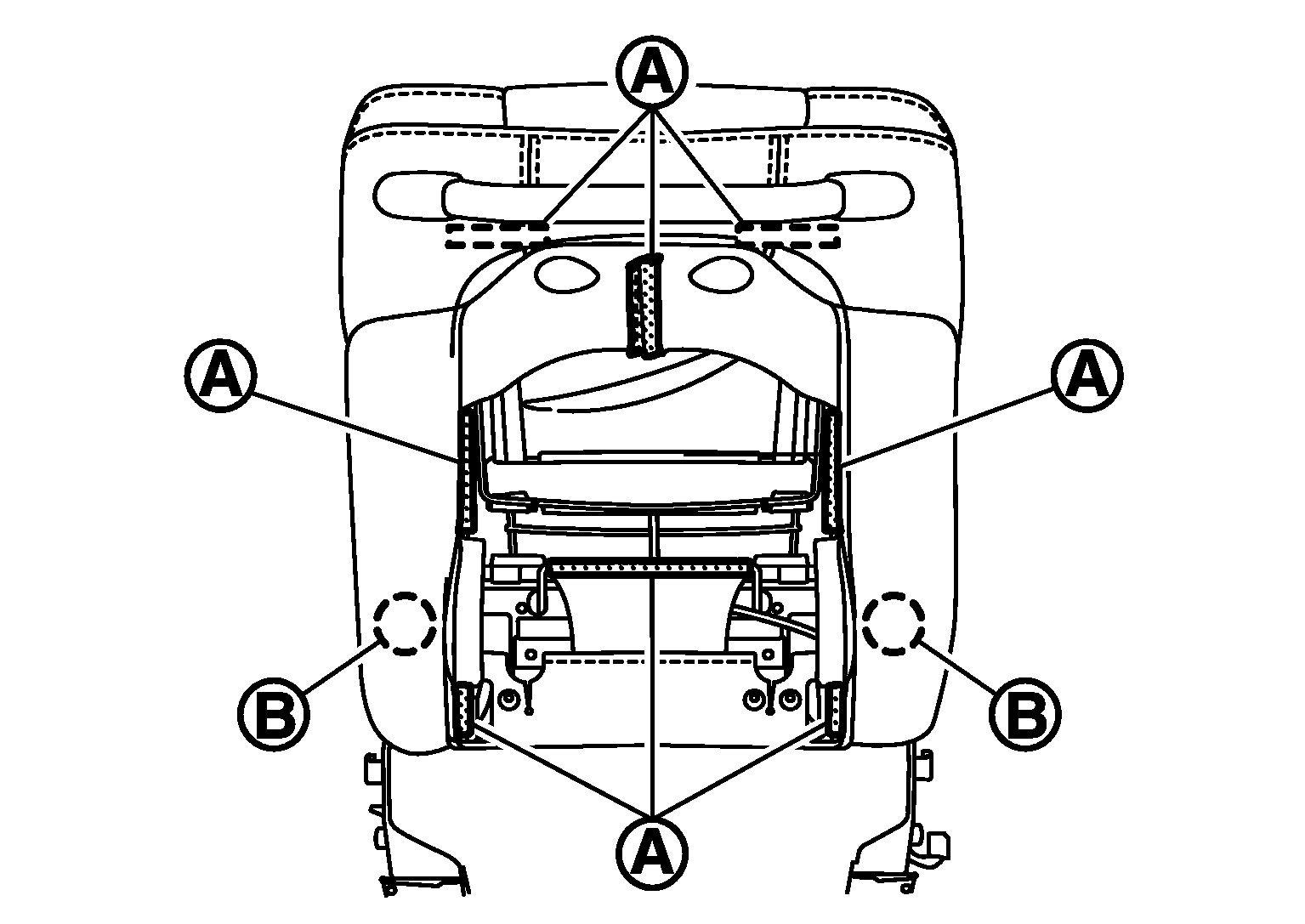

    1. Remove seatback retainer (A).
      GNSJMJIA3693Z-693Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove mounting clips (B).

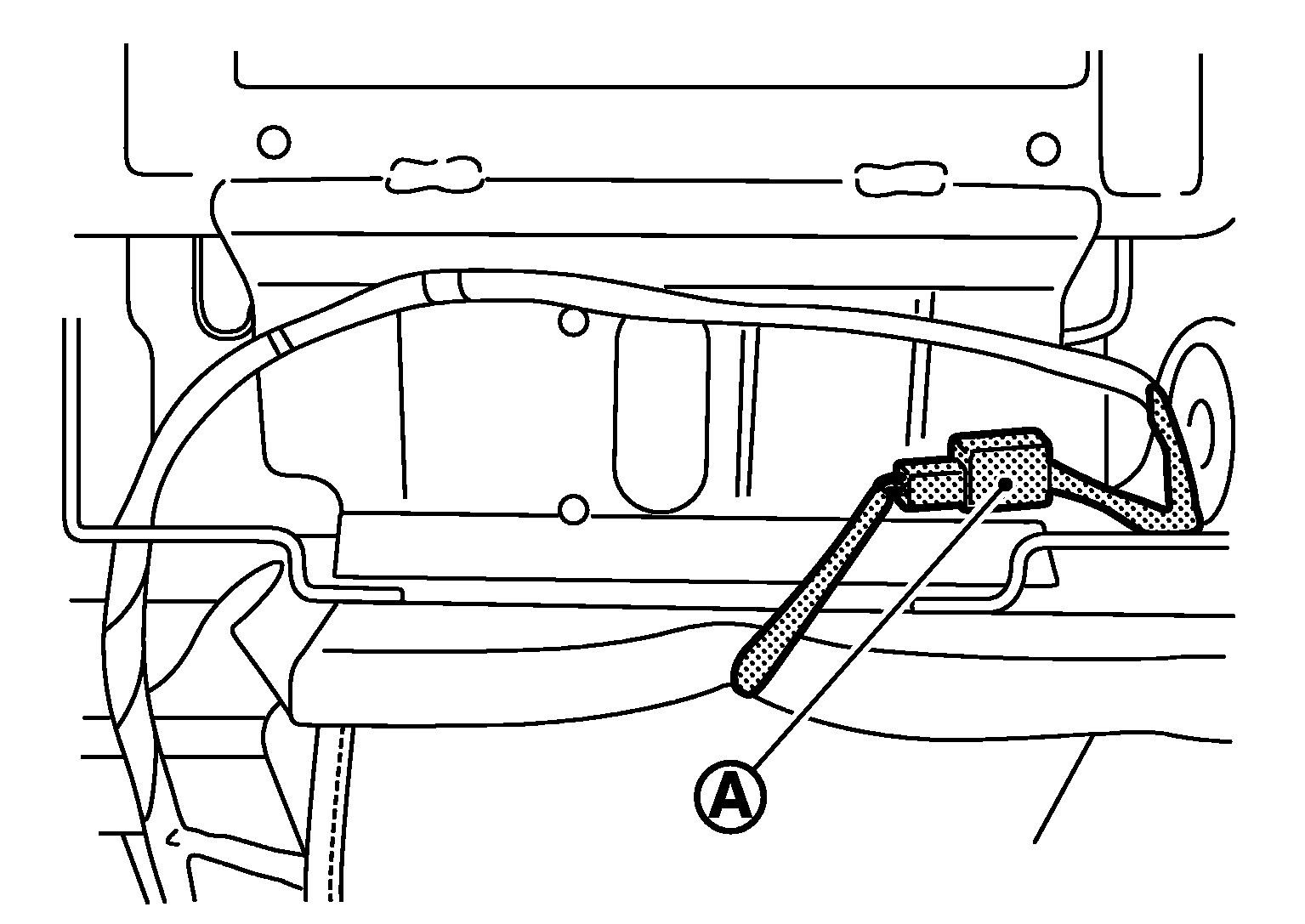

    3. Disconnect the seatback heater unit harness connector. (Heated seat model only.)
      GNSJMJIA4171Z-171Courtesy of NISSAN NORTH AMERICA, INC.
    4. Remove the headrest holder.
      G04146145Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Before installing headrest holder check its orientation. (Front/rear and right/left)
    5. Remove the side air bag module cover.
    6. Remove the side air bag module mounting nuts. Refer to Removal and Installation .
    7. Remove the speaker grill (seat with speaker only). Refer to Removal and Installation .
    8. Remove the seatback trim and seatback pad from the seatback frame.
      NOTE: For models with seat heater, remove seatback heater unit, seatback trim, and seatback pad as a set.
    9. Remove the hog rings, and separate the seatback trim and seatback pad.
  3. Remove the seatback silencer.

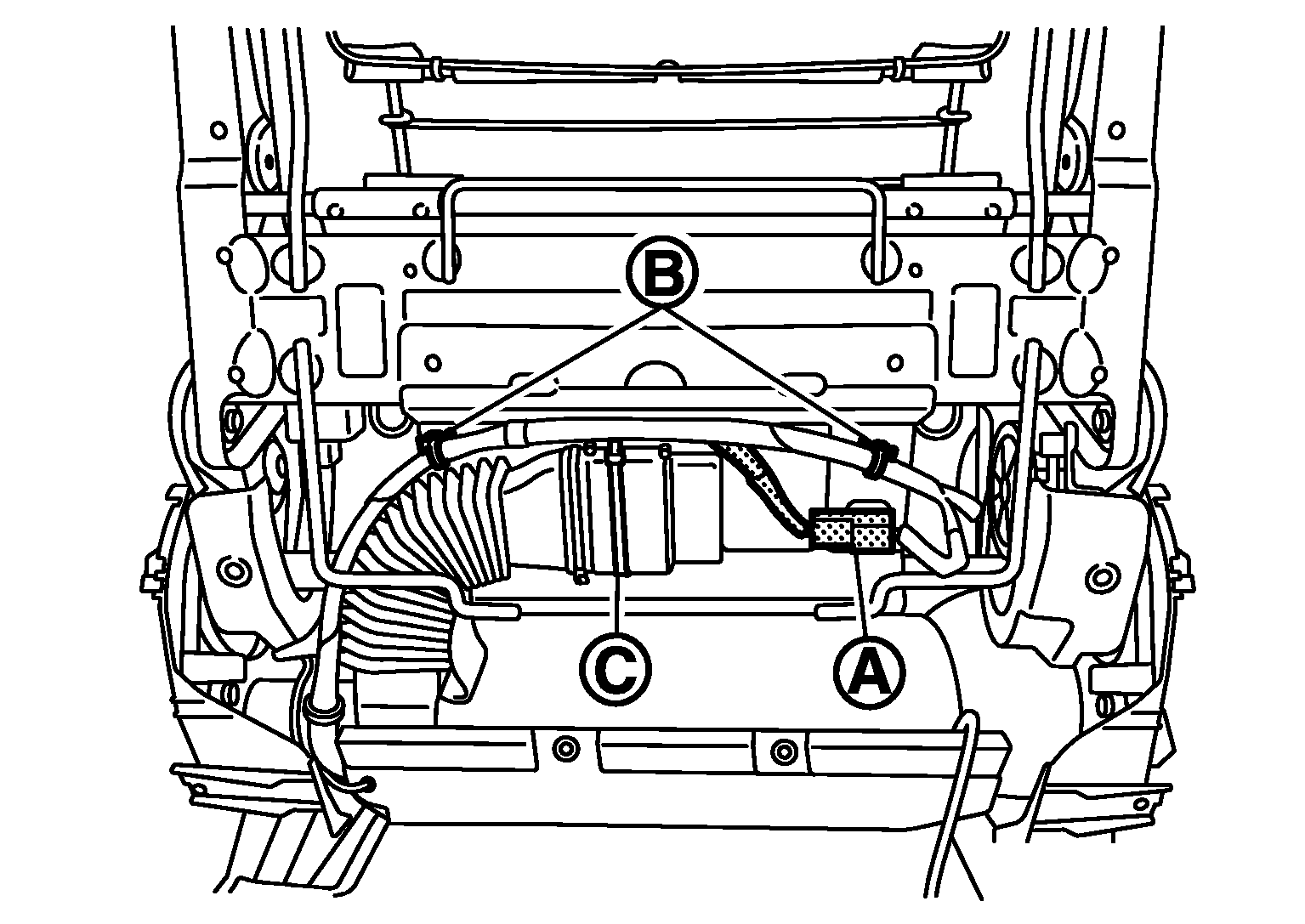

  4. Remove the seatback thermal electric unit harness connector (A).
    GNSJMJIA3694Z-694Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the harness clips (B).
  6. Cut mounting band (C) of seatback thermal electric unit.

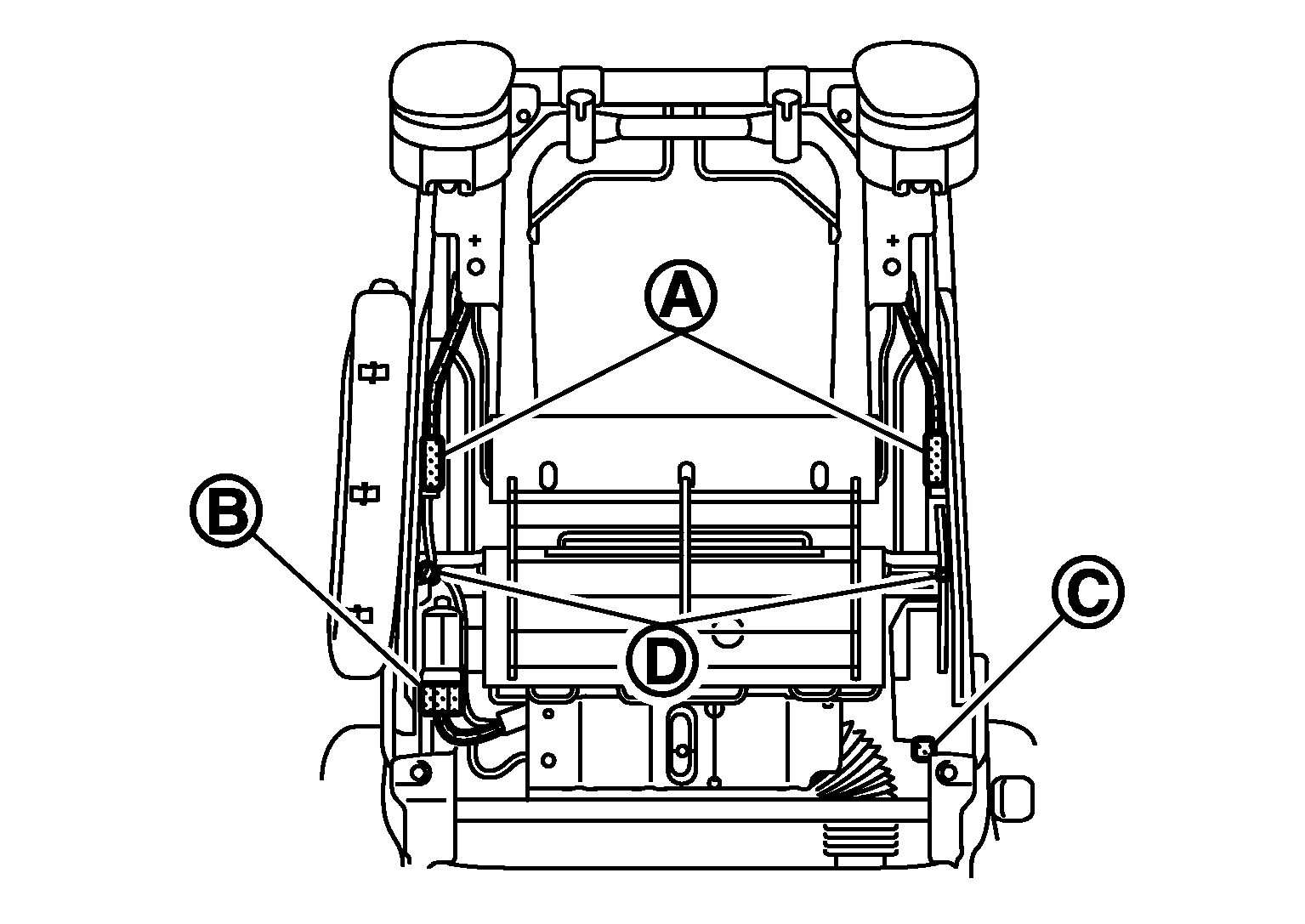

  7. Disconnect seatback speaker harness connector (A), reclining motor harness connector (B), Lumbar support motor harness connector (C), and harness clip (D).
    GNSJMJIA3695Z-695Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove mounting bolts, and then remove seatback frame.
