Disassembly and Assembly: Assembly

Note the following item, and then assembly in the reverse order of disassembly.

CAUTION:

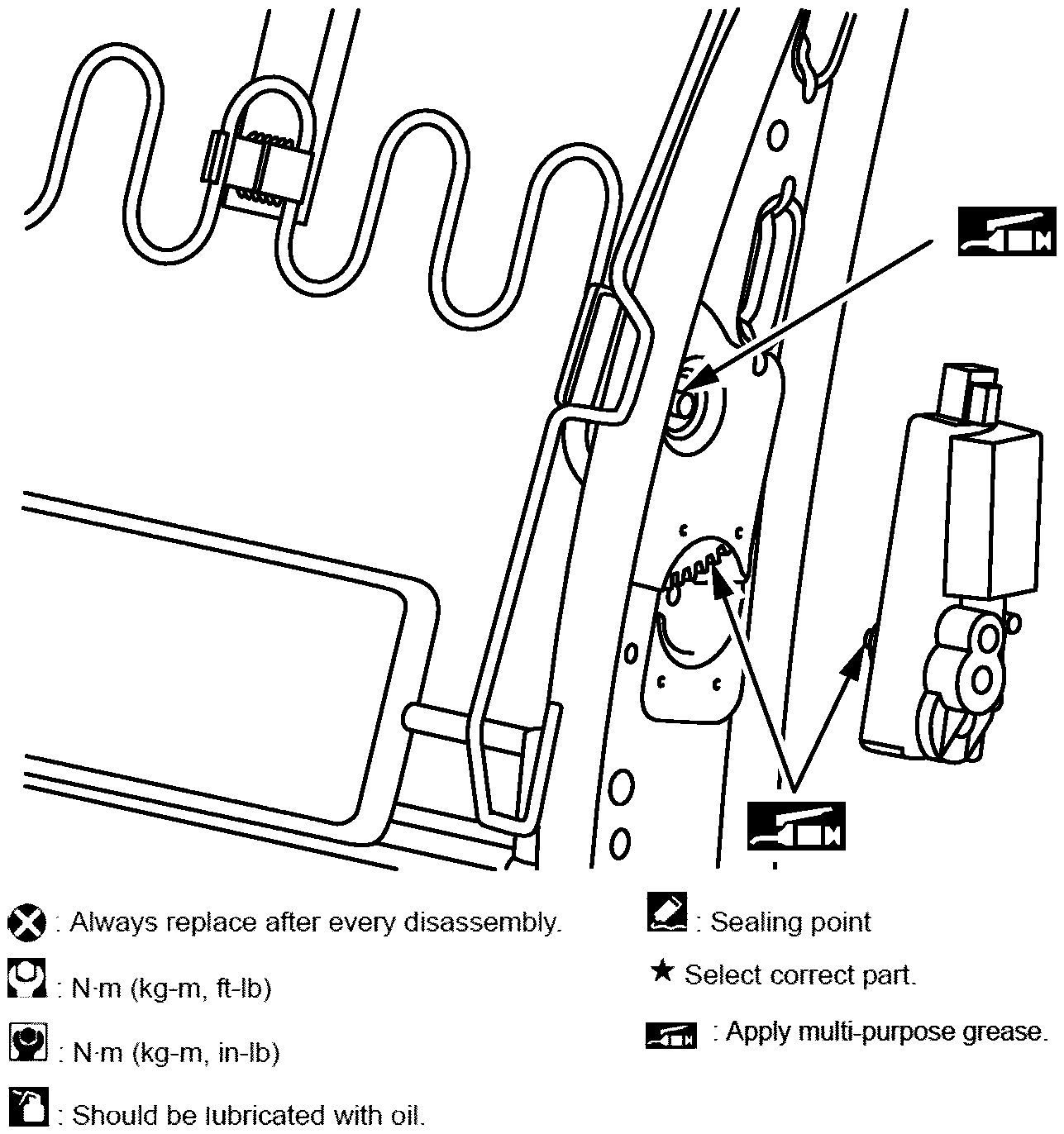

Install the hog rings of seat trim in position, and then securely connect the trim or trim cord with the pad side wire.

Apply door regulator grease or an equivalent to shaft and gear positions of lumber support unit. (Models with power lumber support only)

Courtesy of NISSAN NORTH AMERICA, INC.
