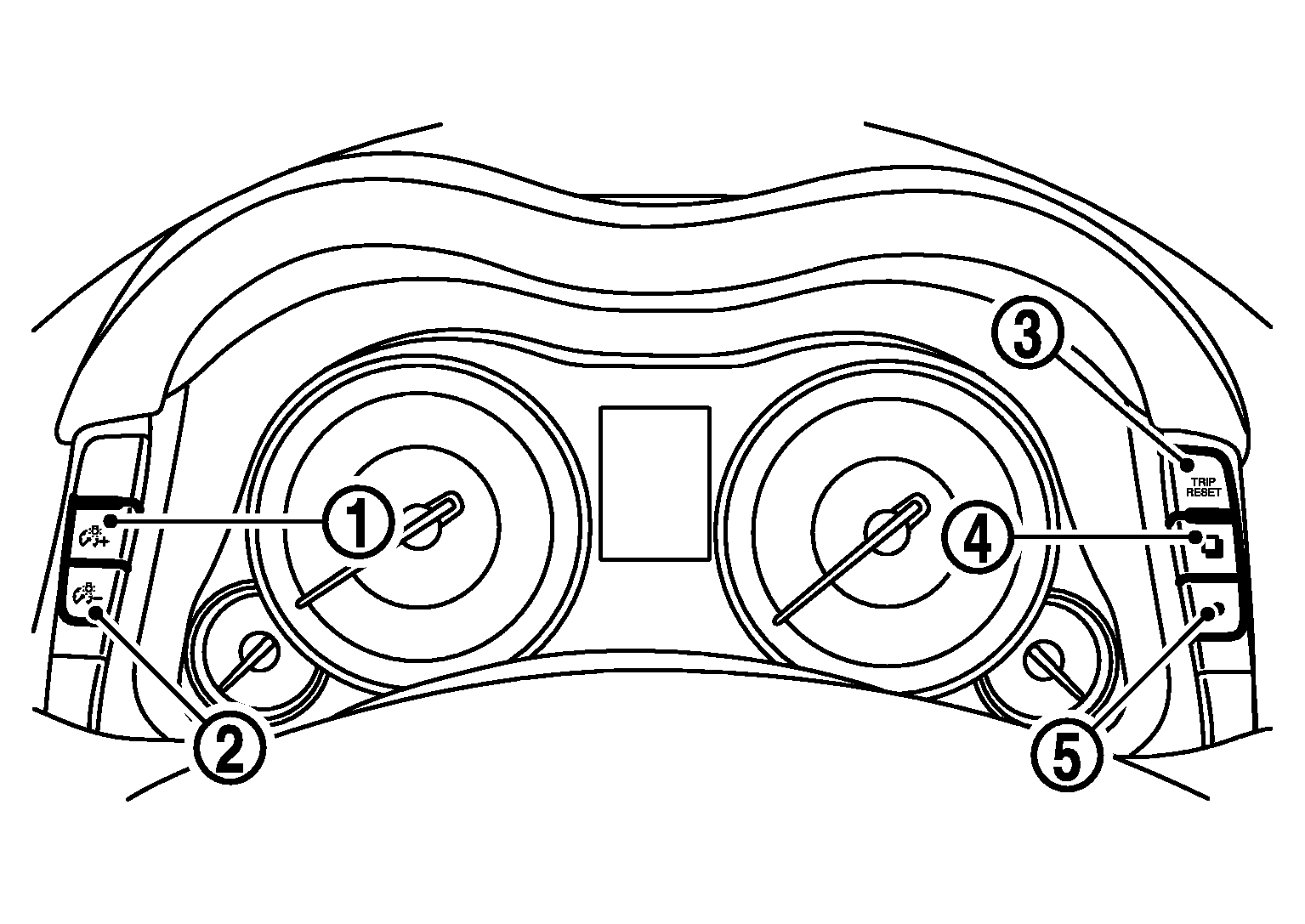

Switch Name and Function

Switch name

Operation

Description

Meter control switch

Illumination control switch (+) (1)

Press

An illuminance level of the back light of the Combination Meter can be adjusted.

Illumination control switch (-) (2)

Trip reset switch (3)

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.

Enter switch (4)

• The information display screen can be switched.
• The item indicated on the information display can be confirmed.

Select switch (5)

When plural items are shown on the information display, a selected item can be changed to the other item.
