Physical Values

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
+	-	Signal name	Input/ Output
1 (W)	Ground	Battery power supply	Input	Ignition switch OFF	--	Battery voltage
2 (BG)	Ground	Ignition signal	Input	Ignition switch ON	--	Battery voltage
3 (GR)	Ground	Vehicle speed signal (2-pulse)	Output	Ignition switch ON	Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)]	NOTE: The maximum voltage varies depending on the specification (destination unit). Courtesy of NISSAN NORTH AMERICA, INC.
4 (R)	Ground	Vehicle speed signal (8-pulse)	Output	Ignition switch ON	Speedometer operated [When vehicle speed is approx. 40 km/h (25 MPH)]	NOTE: The maximum voltage varies depending on the specification (destination unit). Courtesy of NISSAN NORTH AMERICA, INC.
5 (B)	Ground	Illumination control signal	Output	Ignition switch ON	Lighting switch 1ST position When meter illumination is maximum	Courtesy of NISSAN NORTH AMERICA, INC.
					Lighting switch 1ST position When meter illumination is step 11	Courtesy of NISSAN NORTH AMERICA, INC.
					Lighting switch 1ST position When meter illumination is minimum	12 V
7 (SB)	6 (B)	Enter switch signal	Input	Ignition switch ON	When switch (enter switch) is pressed	0 V
					Other than the above	5 V
8 (LG)	6 (B)	Select switch signal	Input	Ignition switch ON	When switch (select switch) is pressed	0 V
					Other than the above	5 V
9 (G)	6 (B)	Illumination control switch signal (+)	Input	Ignition switch ON	When switch [Illumination Control Switch ( )] is pressed	0 V
					Other than the above	5 V
10 (GR)	6 (B)	Illumination control switch signal (-)	Input	Ignition switch ON	When switch [Illumination Control Switch ( )] is pressed	0 V
					Other than the above	5 V
11 (L)	6 (B)	Trip reset switch signal	Input	Ignition switch ON	When trip reset switch is pressed	0 V
					Other than the above	5 V
12 (B)	Ground	Ground	--	Ignition switch ON	--	0 V
14 (L)	--	CAN-H	--	--	--	--
15 (P)	--	CAN-L	--	--	--	--
16 (R)	Ground	Air bag signal	Input	Ignition switch ON	Air bag warning lamp ON	3 V
					Air bag warning lamp OFF	0 V
17 (G)	Ground	LED headlamp (RH) warning signal	Input	Ignition switch ON	Headlamp warning ON	1.0 V
					Headlamp warning OFF	12 V
18 (V)	Ground	LED headlamp (LH) warning signal	Input	Ignition switch ON	Headlamp warning ON	1.0 V
					Headlamp warning OFF	12 V
23 (B)	Ground	Ground	--	Ignition switch ON	--	0 V
25 (W)	Ground	Alternator signal	Input	Ignition switch ON	Charge warning lamp ON	2 V
					Charge warning lamp OFF	Battery voltage
26 (V)	Ground	Parking brake switch signal	Input	Ignition switch ON	Parking brake applied	0 V
					Parking brake released	12 V
27 (V)	Ground	Brake fluid level switch signal	Input	Ignition switch ON	Brake fluid level is normal	12 V
					The brake fluid level is lower than the low level	0 V
28 (G)	Ground	Security signal	Input	Ignition switch ON	Security indicator lamp ON	0 V
					Security indicator lamp OFF	12 V
29 (L)	Ground	Washer level switch signal	Input	Ignition switch ON	Washer level switch ON	0 V
					Washer level switch OFF	5 V
32 (G)	Ground	Paddle shifter shift down signal	Input	Ignition switch ON	Paddle shifter shift down operation	0 V
					Other than the above	12 V
33 (BG)	Ground	Paddle shifter shift up signal	Input	Ignition switch ON	Paddle shifter shift up operation	0 V
					Other than the above	12 V

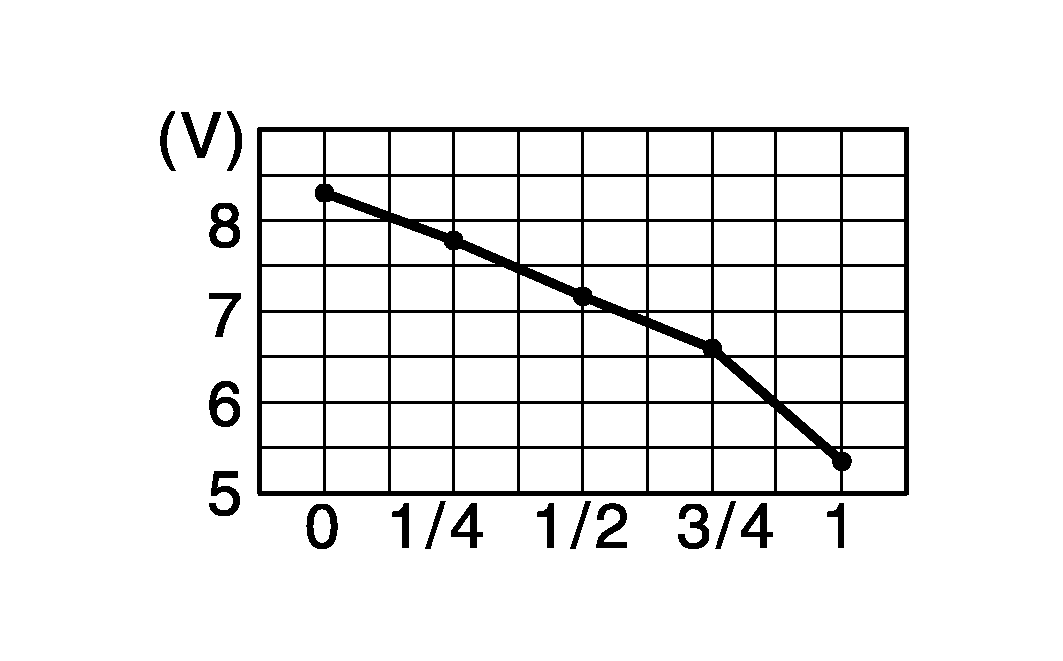

34 (G)	24 (B)	Fuel level sensor signal	Input	Ignition switch ON	--	Courtesy of NISSAN NORTH AMERICA, INC.
35 (W)	Ground	Seat belt buckle switch signal (driver side)	Input	Ignition switch ON	When driver seat belt is fastened	12 V
					When driver seat belt is unfastened	0 V
36 (G)	Ground	Passenger seat belt warning signal	Input	Ignition switch ON	When driver seat belt is fastened When getting in the passenger seat When passenger seat belt is fastened	12 V
					When driver seat belt is fastened When getting in the passenger seat When passenger seat belt is unfastened	0 V
37 (G)	Ground	Non-manual mode signal	Input	Ignition switch ON	Selector manual mode position	12 V
					Other than the above	0 V
38 (V)	Ground	Manual mode shift down signal	Input	Ignition switch ON	Selector lever shift down operation	0 V
					Other than the above	12 V
39 (L)	Ground	Manual mode shift up signal	Input	Ignition switch ON	Selector lever shift up operation	0 V
					Other than the above	12 V
40 (W)	Ground	Manual mode signal	Input	Ignition switch ON	Selector manual mode position	0 V
					Other than the above	12 V
