Disassembly and Assembly of Center Console Assembly

DISASSEMBLY

1. Remove console finisher assembly. Refer to Removal and Installation .
2. Remove console tray.
   1. Open the console lid assembly.

      Courtesy of NISSAN NORTH AMERICA, INC.

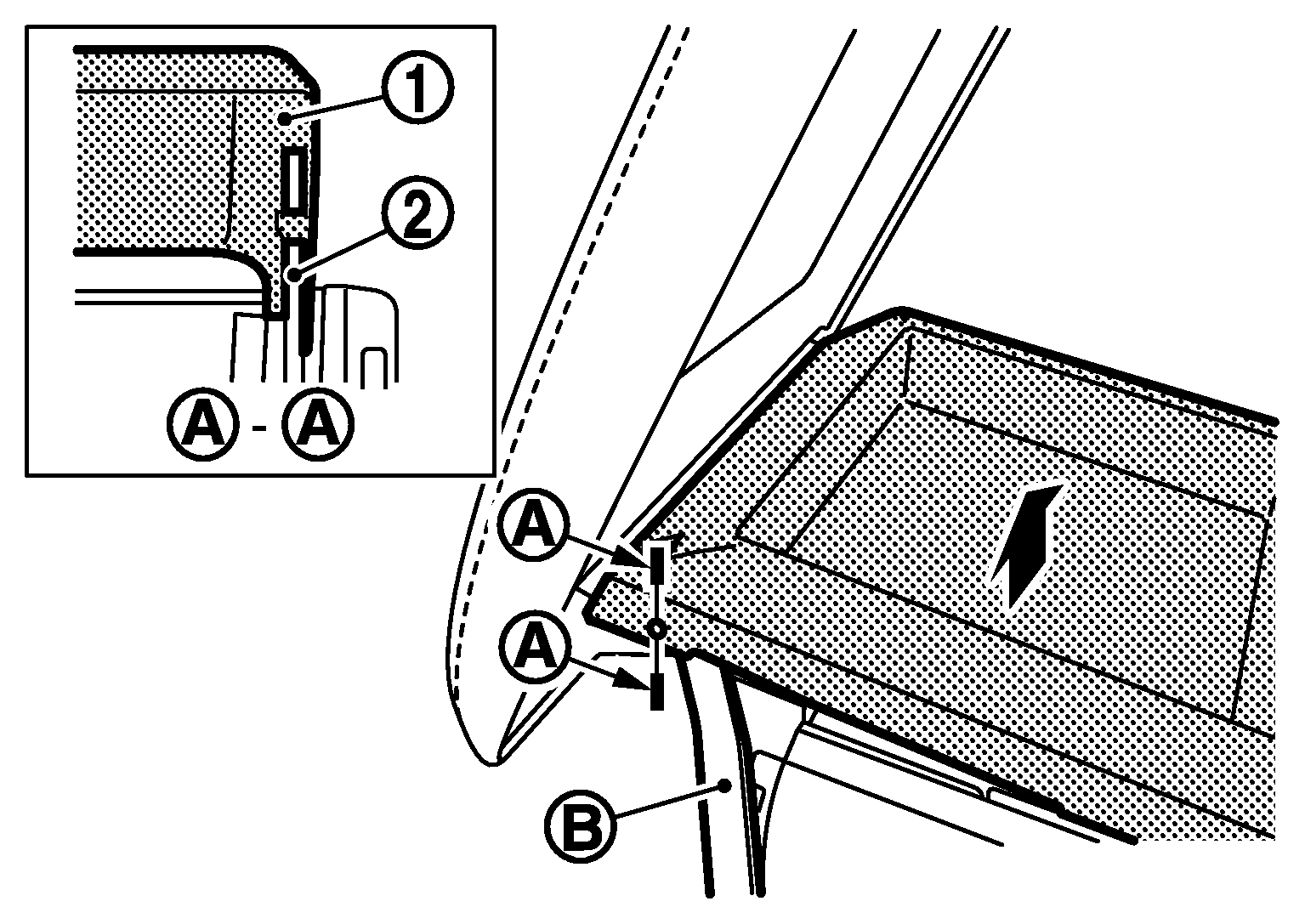

   2. Insert a remover tool (B) between console tray (1) and hinge arm (2) and disengage connection of rear portion.
      CAUTION:

      • Slowly disengage connection of console tray.
      • Never excessively pull console tray.

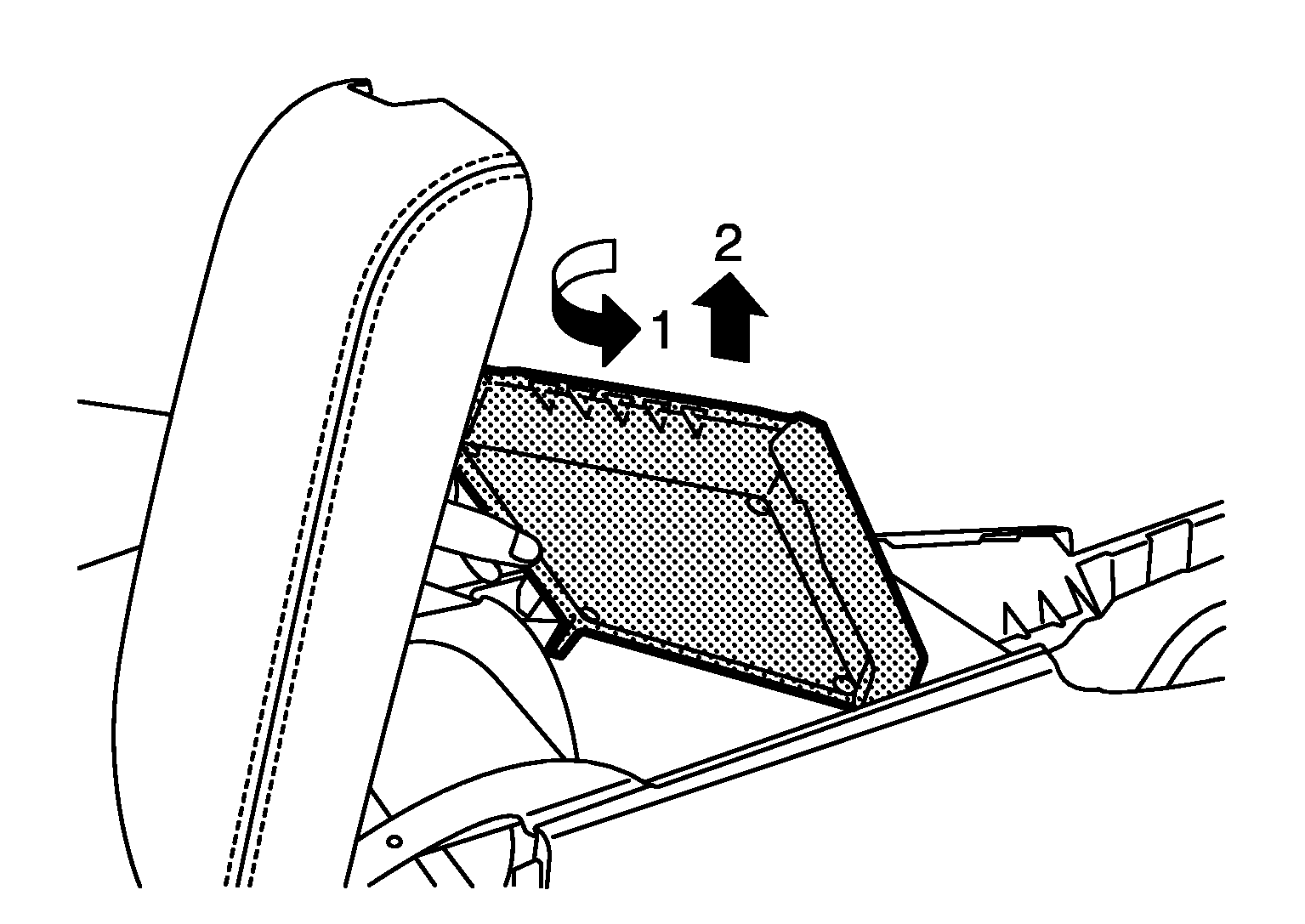

   3. Rotate console tray as shown in the figure, below. Slide toward vehicle front end pull toward vehicle upper.

      Courtesy of NISSAN NORTH AMERICA, INC.

      CAUTION:

      • Slowly disengage connection of console tray.
      • Never excessively pull console tray.
3. Remove console lid assembly.

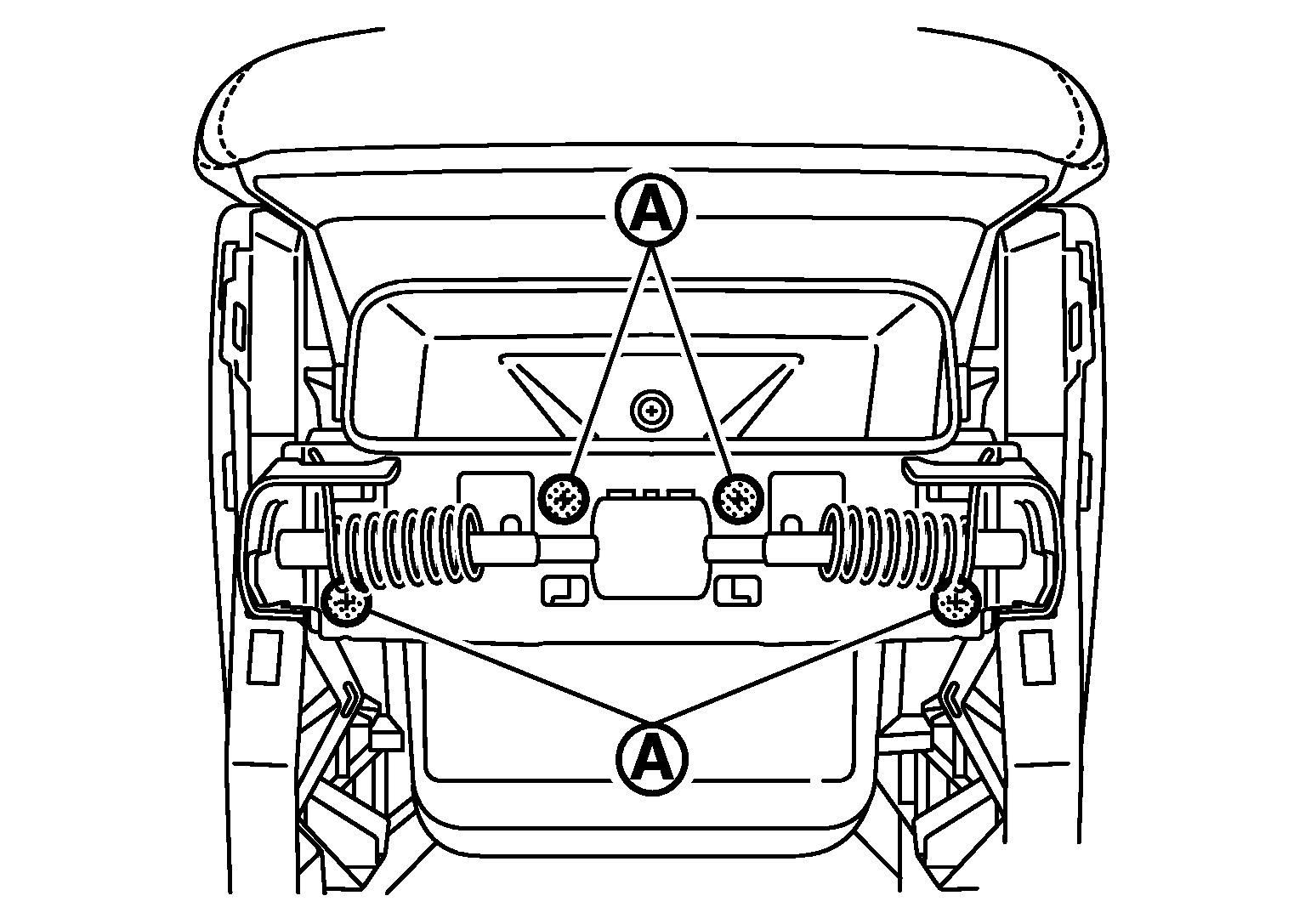

   1. Remove screws (A).

      Courtesy of NISSAN NORTH AMERICA, INC.

      NOTE: Do not lock console lid assembly. Perform the operation while console lid assembly is partly open.
      CAUTION: Be careful of the strong repulsive force of the spring.
   2. Pull back console lid assembly.
4. Rear ventilator duct. Refer to Removal and Installation .
5. Remove inside key antenna (console). Refer to Removal and Installation .
6. Remove power socket. Refer to Removal and Installation
7. Remove external data input box. Refer to Removal and Installation

ASSEMBLY

Assemble in the reverse order of disassembly.
