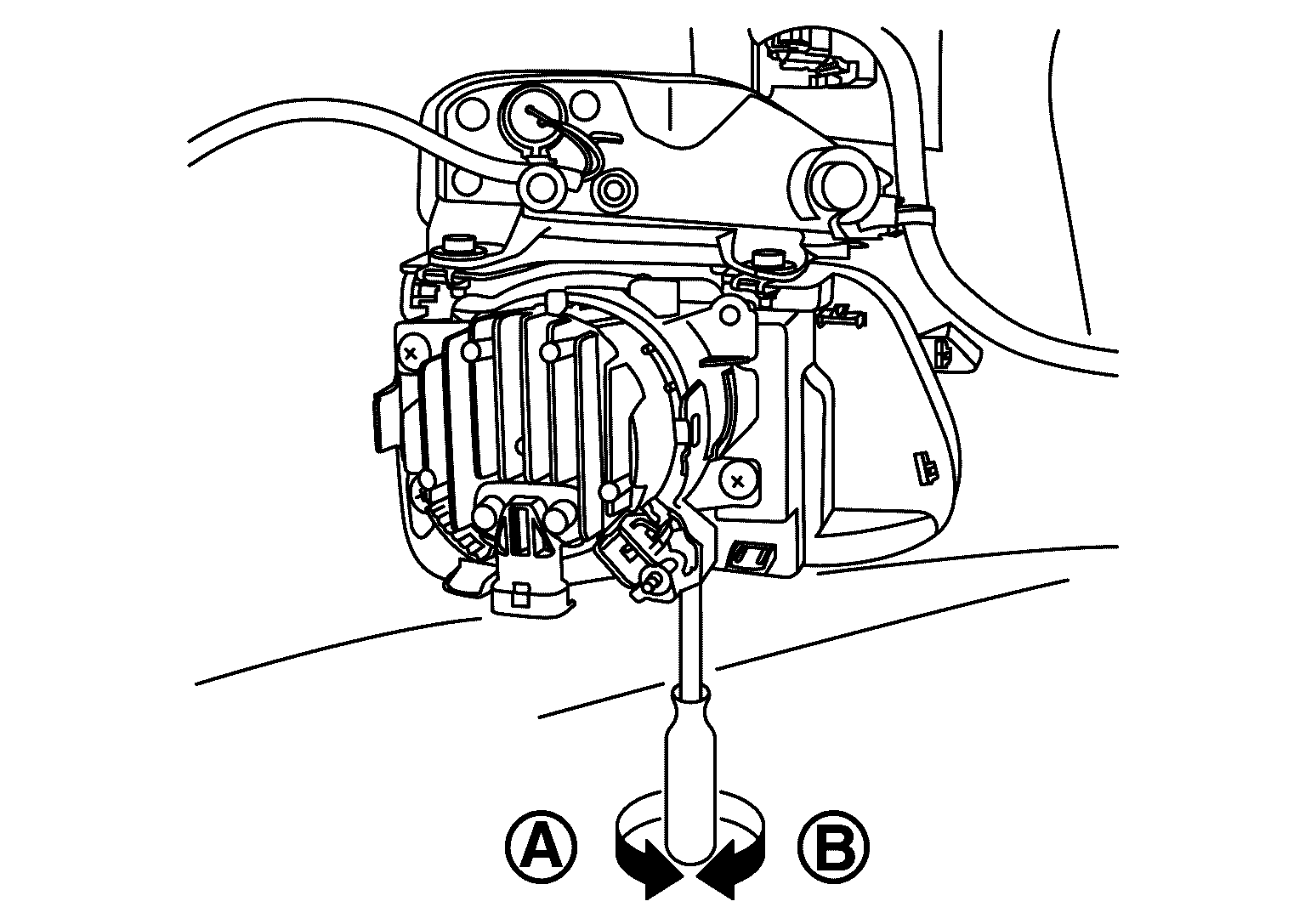

Aiming Adjustment Screw

• Turn the aiming adjusting screw for adjustment.

  Courtesy of NISSAN NORTH AMERICA, INC.

  A: DOWN

  B: UP

• For the position and direction of the adjusting screw, refer to the above figure.
  NOTE: A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used for adjustment.

For aiming adjustment procedure, refer to Aiming Adjustment Procedure .
