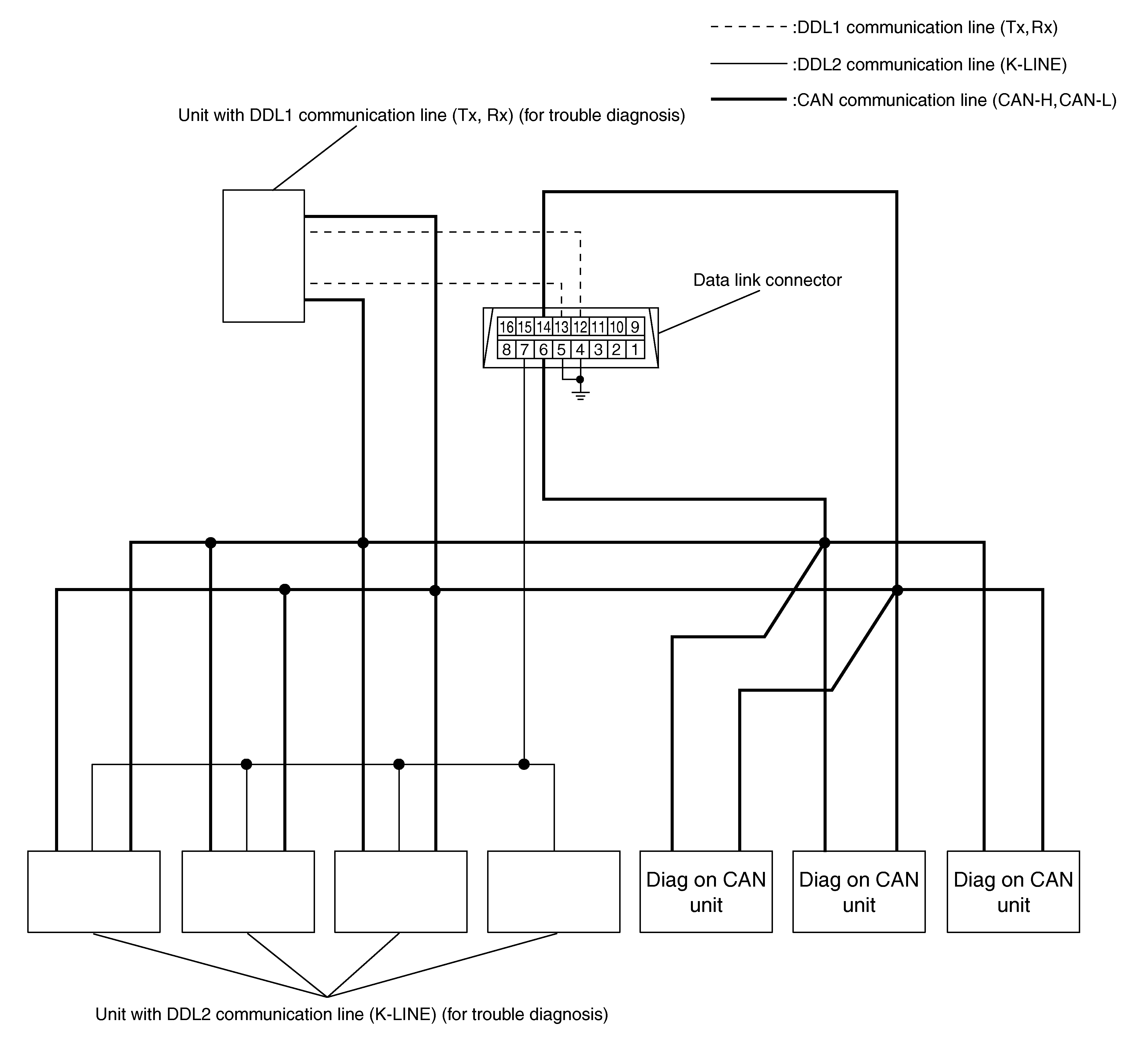

System Diagram

G04815668Courtesy of NISSAN NORTH AMERICA, INC.

Name

Harness

Description

DDL1

Tx

Rx

It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)

DDL2

K-LINE

It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)

Diag on CAN

CAN-H

CAN-L

It is used for trouble diagnosis and control.
