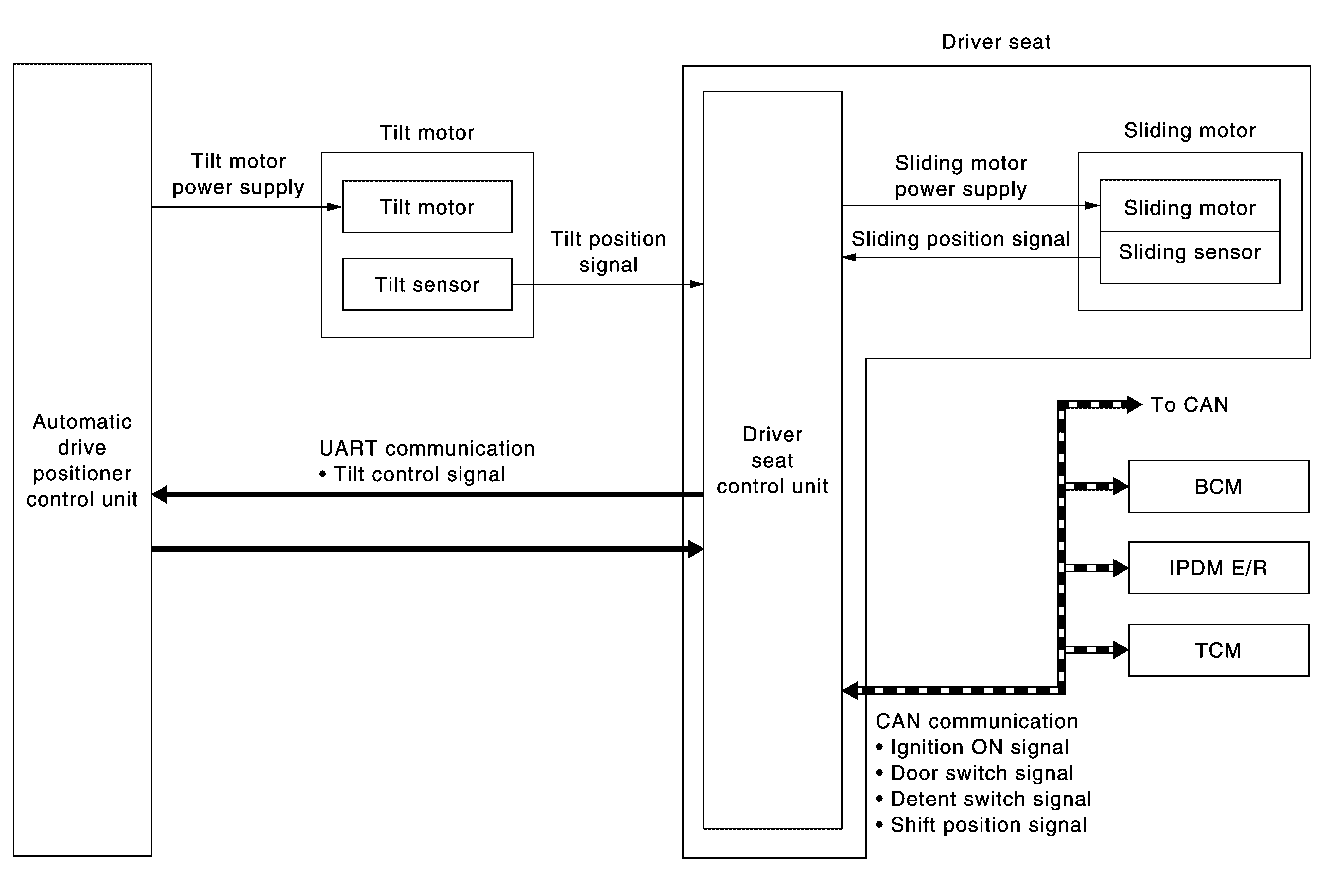

Home >> Infiniti >> 2017 >> QX80 Limited >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Automatic Drive Positioner (Symptom Diagnosis & Removal And Installation) >> System Description >> System >> Exit Assist Function >> System Diagram
