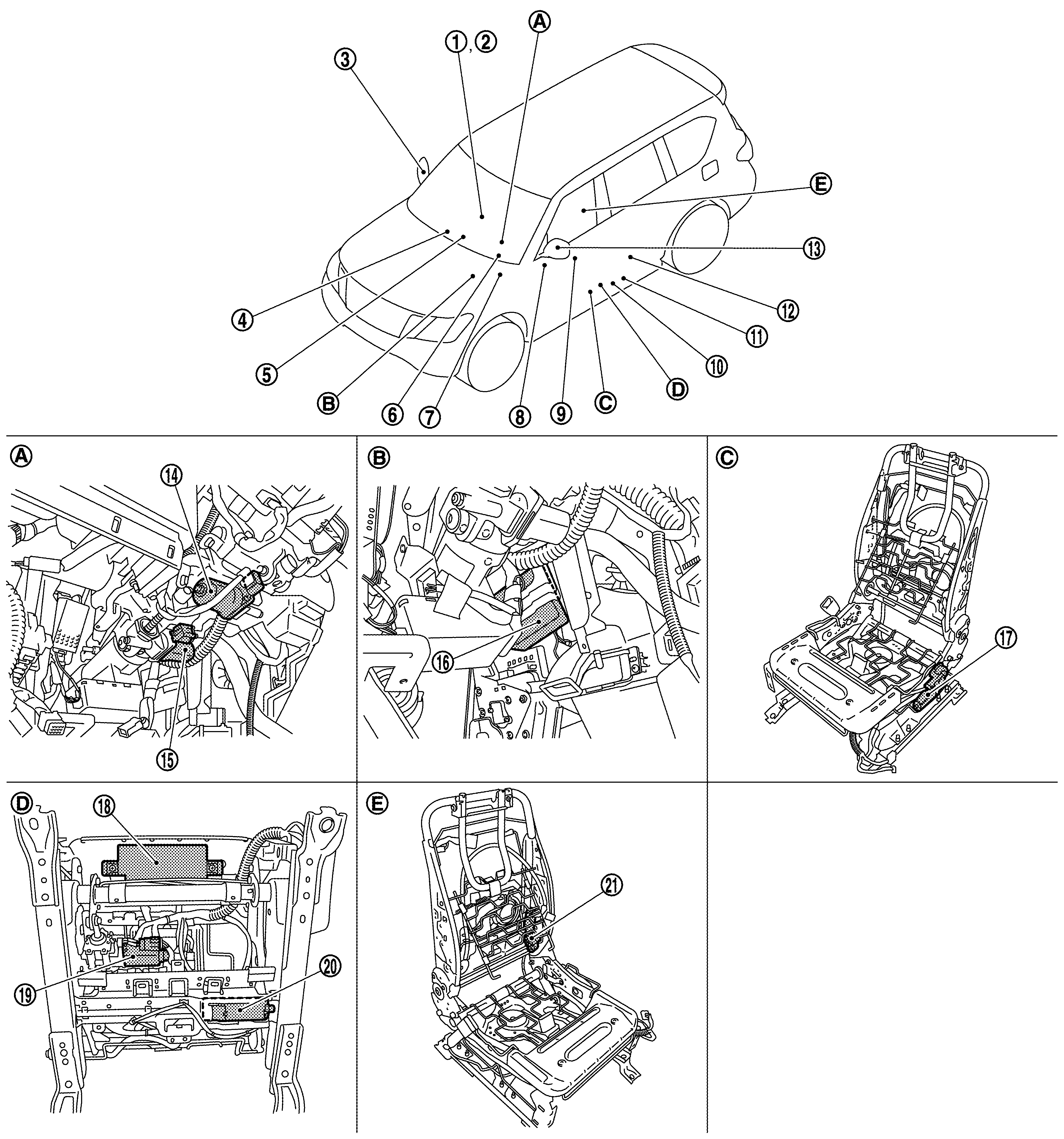

Component Location
| 1. | A/T shift selector (detention switch) Refer to COMPONENT LOCATION . |
2. | TCM Refer to COMPONENT LOCATION . |
3. | Door mirror (passenger side) |
| 4. | Combination meter Refer to COMPONENT LOCATION . |
5. | BCM Refer to COMPONENT LOCATION . |
6. | Tilt & telescopic switch |
| 7. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION . |
8. | Seat memory switch | 9. | Power window main switch (Door mirror remote control switch) |
| 10. | Sliding, lifting switch | 11. | Reclining switch | 12. | Driver side door switch |
| 13. | Door mirror (driver side) | 14. | Tilt motor | 15. | Telescopic motor |
| 16. | Automatic drive positioner control unit | 17. | Lifting motor (rear) | 18. | Diver seat control unit |
| 19. | Lifting motor (front) | 20. | Sliding motor | 21. | Reclining motor |
| A. | View with steering column cover lower removed | B. | View with instrument lower panel LH removed | C. | View with seat cushion pad and seat back pad removed |
| D. | Backside of seat cushion | E. | View with seat cushion pad and seat back pad removed |
