Section 57 (Driver Assistance System - Lane Departure Warning & Lane Departure Prevention (LDW & LDP) (Symptom Diagnosis & Removal And Installation))
>>
Removal And Installation
>>
Warning Systems Switch
>>

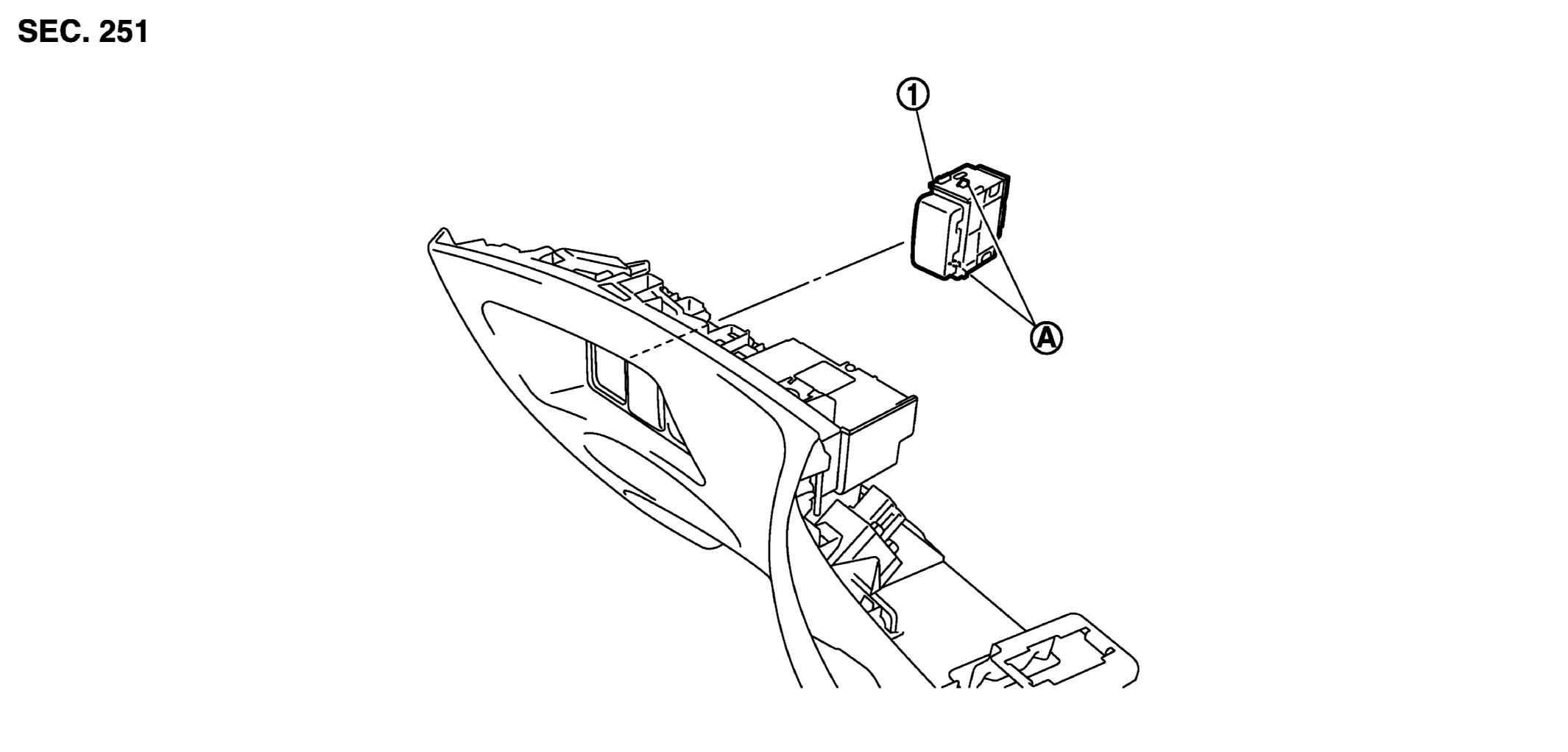

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Warning systems switch
A.
Pawls
